34020 - Troy-Bilt 21" Walk-Behind Mower (SN: 340200100101 - 340200399999) HANDLE BAR AND MOWER CONTROLS Parts Diagram

21" Walk-Behind Mower

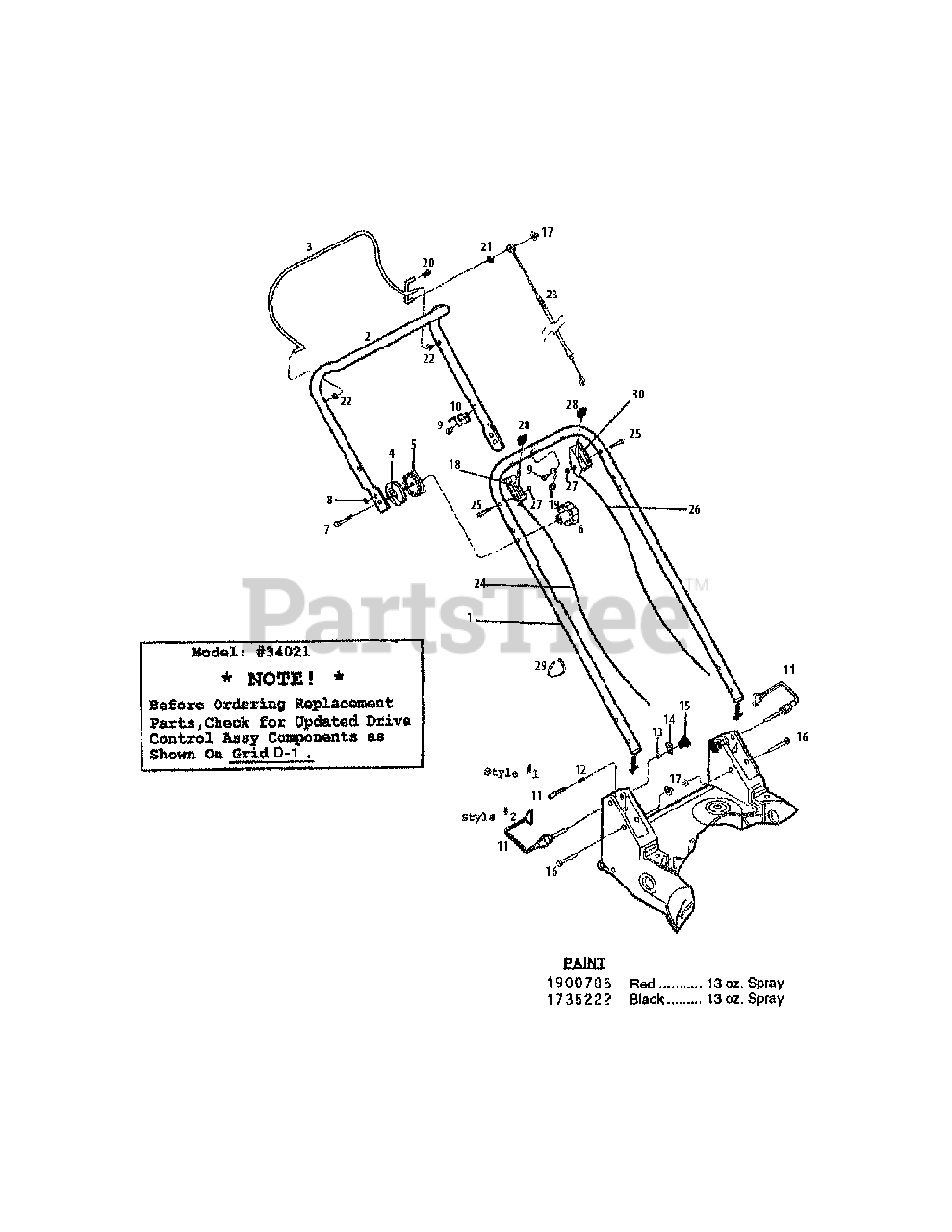

HANDLE BAR AND MOWER CONTROLS Parts Diagram

  • Title

1

MTD 1902638001

HANDLEBAR-LOWER

$

$

Not available

2

MTD 1767435001

HANDLEBAR-UPR PNT

$

$

Not available

3

MTD 1766584001

BAIL-CONTROL VINYL COATED

$

$

Not available

4

Troy-Bilt 1903404099

QUADRANT-OUTER (WAS 1767425)

$

$

Not available

5

Troy-Bilt 1903417

KIT-QUADRANT INNER (WAS 1767375)

$24.99

$

In Stock, Qty 6

0

6

MTD 1767400

KNOB-HANDLE ADJUST

$

$

Not available

7

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0 (WAS 1767448)
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1765879

RETAINER .25

$7.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5

$3.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1749977001

BRKT-CONTROL CABLE

$

$

Not available

11

MTD 1900383

PIN-LK SQ. #W51620LP

Note: (34021-0400101-0599999)

$

$

Not available

11

MTD 1766534

PIN-STOP

$

$

Not available

12

MTD 1766531

SPRING-COMPRESSION

$

$

Not available

13

Troy-Bilt 9800

NUT-HEX 1/4-20 ZP

$

$

Currently unavailable

14

MTD 1766532

ARM-STOP ZP BLACK CHRMATE

$

$

Not available

15

Troy-Bilt 720-0279

KNOB

$4.49

$

Usually ships in 3-6 days

0

16

Troy-Bilt 911-0813

PIN-CLEVIS ( @DEPL)

$6.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1908679

CAP-PUSH .312

$2.49

$

In Stock, only 1 left!

0

18

MTD 1768319

DECAL-ENGINE SPEED

$

$

Not available

19

Troy-Bilt 1768535

GUIDE-ROPE

$

$

Not available

20

Troy-Bilt 1908678

CAP PLASTIC (BAIL)

$

$

Currently unavailable

21

Troy-Bilt 1908673

GRIP-RING EXT .312 ID

$

$

Not available

22

Troy-Bilt 1908677

BUSHING-PLASTIC (BAIL)

$

$

Not available

23

MTD 1765935

CABLE-ENGINE BRAKE

$

$

Not available

24

MTD 1767639

CONTROL-THROTTLE

$

$

Not available

25

Troy-Bilt 1111601

SCR-HH 1/4-20X1.75 G5 ZP {34020, 34021}

$

$

Not available

26

MTD 1767614

CONTROL-CLUTCH {34021}

$

$

Not available

27

Troy-Bilt 912-0291

NUT-HT LK 1/4-20 {34020, 34021}
(Superseded to 712-0291)

$

$

Not available

28

Troy-Bilt GW-9057

KNOB-WHEEL DRIVE CABLE {34020, 34021}

$8.49

$

In Stock, only 1 left!

0

29

Troy-Bilt 1763682

TIE-CABLE {34020, 34021} REUSABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

30

MTD 1768320

DECAL-WHEEL DRIVE {34021}

$

$

Not available

Troy-Bilt 788-0638A

PAINT-RED SPRAY 13OZ.

Note: Not shown

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY 13OZ.
(Superseded to 788-0637A)

Note: Not shown

$30.99

$

In Stock, only 1 left!

0
