34002 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) SHROUD, CONTROL PANEL AND GAS TANK ASSEMBLY Parts Diagram

Insight Snow Thrower

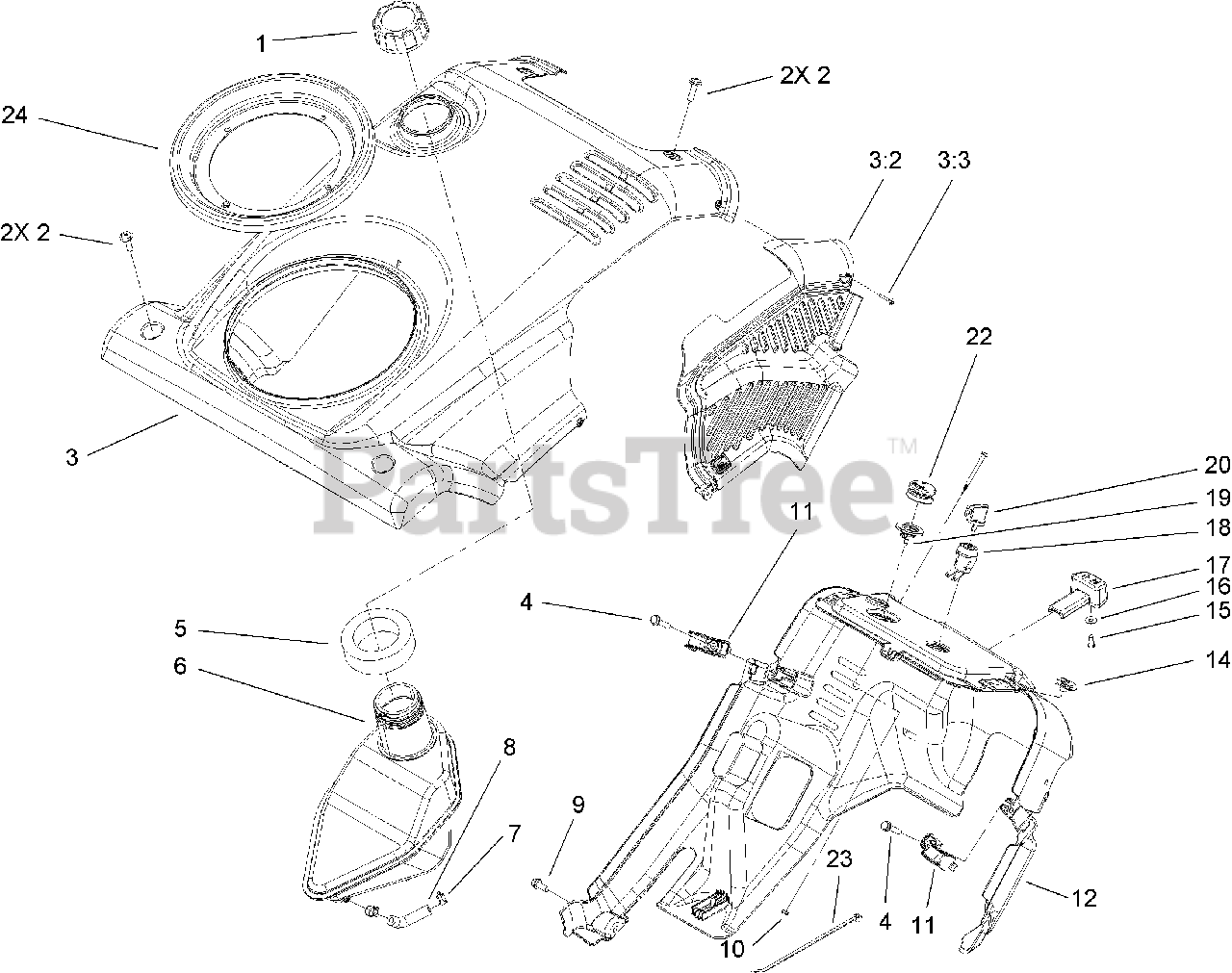

SHROUD, CONTROL PANEL AND GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 114-3764

4-CYCLE GAS CAP ASM

$16.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 110-9361

SCREW-PPH, SEMS
(Superseded to 137-3013)

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 114-3761

SHROUD ASM

$156.99

$

Usually ships in 3-6 days

0

3:2

Lawn-Boy 114-3794

BAFFLE-HEAT, 4-CYCLE

$23.99

$

Usually ships in 3-6 days

0

3:3

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

5

Lawn-Boy 114-3773

SEAL-TANK

$3.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 108-4880

TANK-GAS
(Superseded to 120-9848)

$67.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 2412-98

CLAMP

$1.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 114-3765

HOSE-FUEL

$4.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-9

NUT-LOCK

$0.99

$

In Stock, Qty 7

0

11

Lawn-Boy 108-4947

CLIP-SHROUD

$3.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 108-4930

SHROUD-LOWER

$90.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 3256-49

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

17

Lawn-Boy 110-9363

KNOB-CHOKE

$

$

Not available

18

Lawn-Boy 40-5940

SWITCH

$15.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0

22

Lawn-Boy 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

24

Lawn-Boy 114-3772

SEAL-RING, CHUTE

$17.99

$

In Stock, only 1 left!

0
