34002 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) CHUTE ASSEMBLY Parts Diagram

Insight Snow Thrower

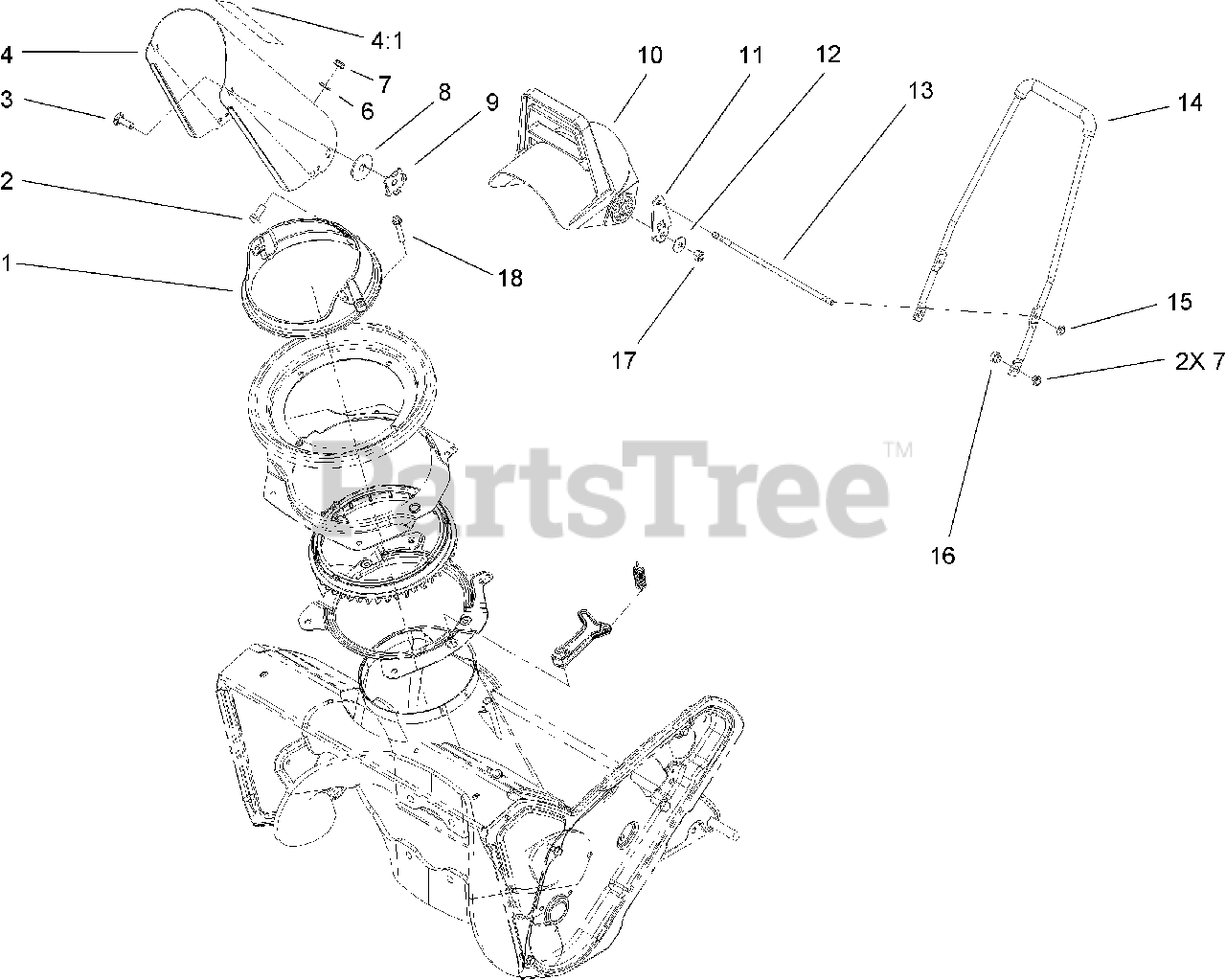

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-1546

RING-CHUTE

$19.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

4

Lawn-Boy 104-4115

CHUTE ASM

$68.99

$

In Stock, only 1 left!

0

4:1

Lawn-Boy 104-4135

DECAL-DANGER

$5.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 14

0

7

Lawn-Boy 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

8

Lawn-Boy 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

9

Lawn-Boy 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 56-2680

CHUTE-DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 112-1521

CHUTE-PIVOT ARM

$24.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

13

Lawn-Boy 110-1827

LINKAGE-CHUTE

$

$

Not available

14

Lawn-Boy 110-1829

HANDLE-FOAM

$

$

Not available

15

Lawn-Boy 108-9378

RETAINER-PUSH ON

$1.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 110-2158

SPACER-FLANGED

$6.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 108-4946

SCREW-PLASTITE
(Superseded to 137-3012)

$1.99

$

In Stock, Qty 11

0
