34002 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) CARBURETOR ASSEMBLY NO. 640299B TECUMSEH LH195SP-67530D Parts Diagram

Insight Snow Thrower

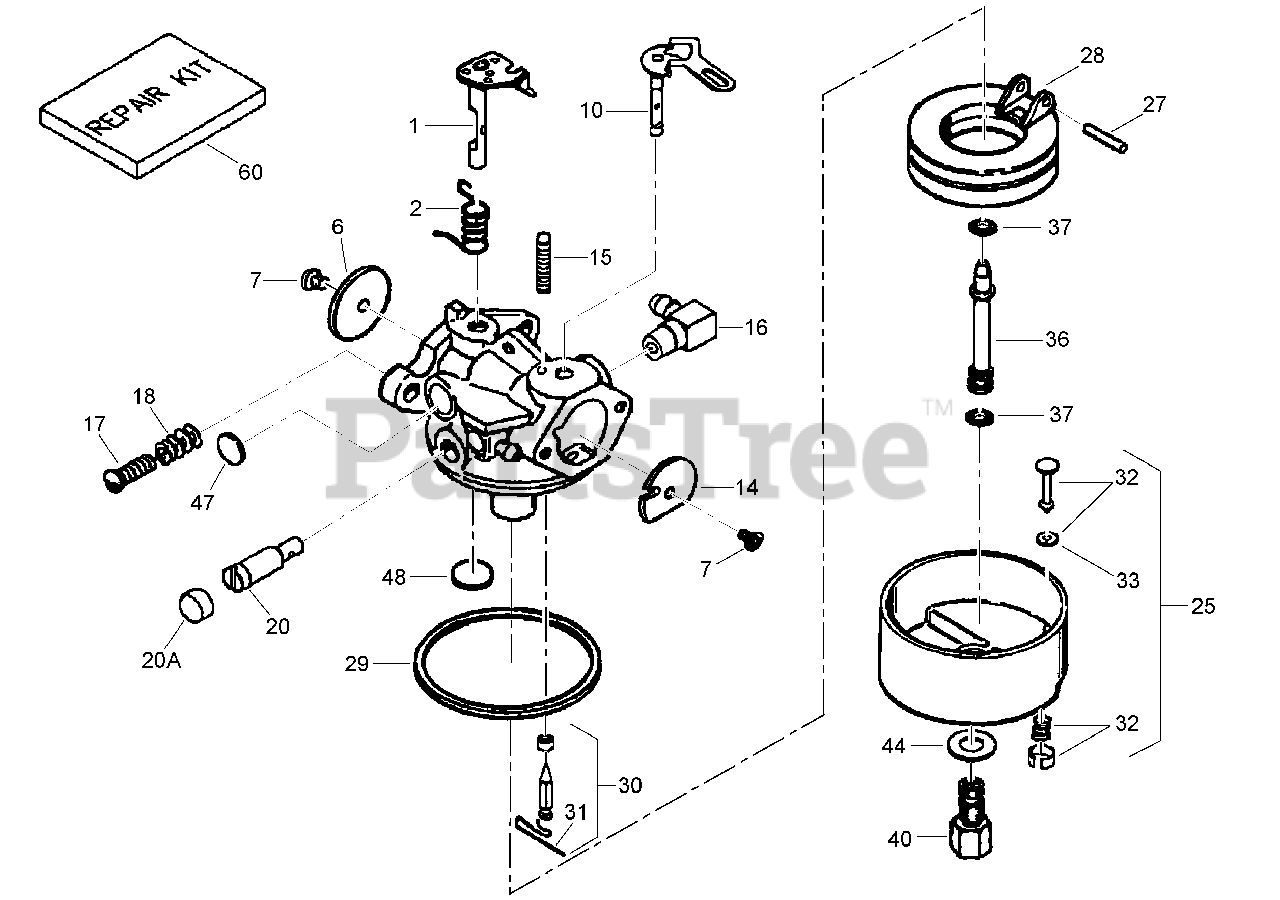

CARBURETOR ASSEMBLY NO. 640299B TECUMSEH LH195SP-67530D Parts Diagram

  • Title

Lawn-Boy 640299B

Carburetor (Includes 184 of Engine Parts List)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

1

Lawn-Boy 631615

Throttle Shaft and Lever ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 631767

Spring-Return, Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 640070

Shutter-Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 650506

Screw-Shutter

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

10

Lawn-Boy 632108

Choke Shaft and Lever Asm

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 631890

Shutter-Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 630735

Spring-Positioning, Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 631808

Fitting-Inlet, Fuel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 651025

Screw-Throttle Crack and Idle Speed

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 630766

Spring-Tension

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20

Lawn-Boy 640027

Screw-Restrictor, Idle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20A

Lawn-Boy 640053

Cap-Screw, Idle Restrictor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 631867

Bowl-Float (no drain) (after 1/01/2006)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 631951

Float Bowl Asm (before 1/01/2006) (Includes 32-33)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

27

Lawn-Boy 631024

Shaft-Float

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

28

Lawn-Boy 632802

Float (Plastic)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

29

Lawn-Boy 631028

O Ring-Bowl, Float

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 631021A

Inlet Needle, Seat and Clip ASM (Includes 31)

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

31

Lawn-Boy 631022

Clip-Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

32

Lawn-Boy 27136A

Bowl Drain ASM (before 1/01/2006)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

33

Lawn-Boy 27554

Gasket-Plunger, Drain (before 1/01/2006)

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

36

Lawn-Boy 632745

Tube-Nozzle, Main

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

37

Lawn-Boy 632547

O-Ring

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 640131

Nut-Bowl, High Speed

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

44

Lawn-Boy 27110A

Washer-Nut, Bowl

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

47

Lawn-Boy 630748

Plug-Welch, Idle Mixture Well

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 631027

Plug-Welch, Atmospheric Vent

Note: Included in Repair Kit 632760B Obtain from your local Tecumseh dealer

$

$

Currently unavailable

60

Lawn-Boy 632760B

Carburetor Repair Kit

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
