34002 - Lawn-Boy Insight Snow Thrower (SN: 280000001 - 280999999) (2008) ROTOR HOUSING AND SCRAPER ASSEMBLY Parts Diagram

Insight Snow Thrower

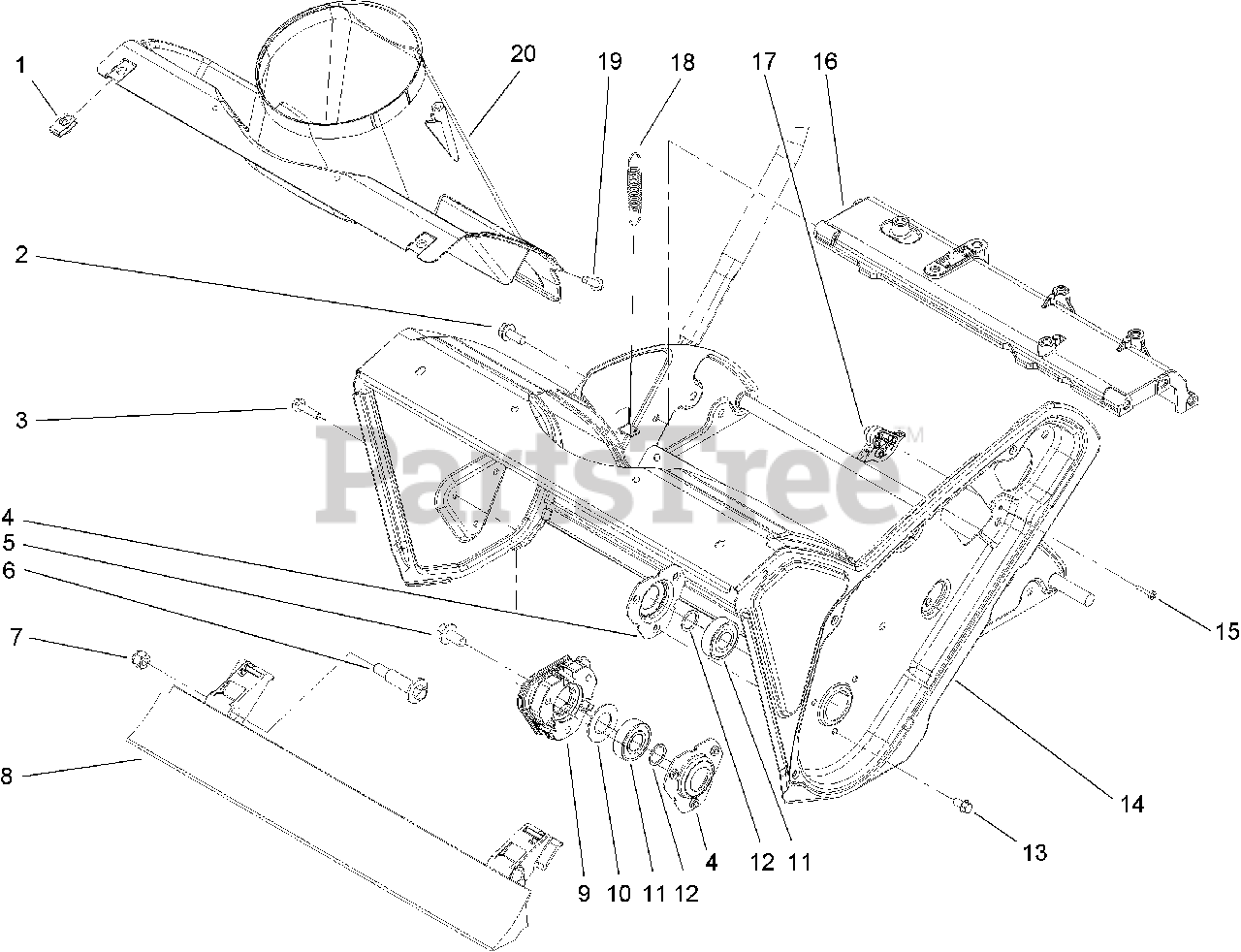

ROTOR HOUSING AND SCRAPER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

3

Lawn-Boy 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 108-4943

FLANGE-BEARING
(Superseded to 136-7134)

$3.99

$

In Stock, Qty 13

0

5

Lawn-Boy 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

6

Lawn-Boy 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 108-4884

BLADE-SCRAPER
(Superseded to 161-0963)

$34.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 114-3781

SPACER-BEARING, RH

$8.49

$

In Stock, Qty 7

0

10

Lawn-Boy 110-9353

WASHER-RUBBER

$1.49

$

In Stock, only 3 left!

0

11

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 108-4868-03

HOUSING-AUGER

$195.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 108-4905

BRACE-FRAME

$51.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 108-4919

GUIDE-CABLE, CLUTCH
(Superseded to 140-3660)

$10.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 108-4906

SPRING-EXTENSION
(Superseded to 147-9464)

$2.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 108-4871

CHUTE-LOWER

$76.99

$

Usually ships in 3-6 days

0
