34002 - Lawn-Boy Insight Snow Thrower (SN: 280000001 - 280999999) (2008) ENGINE ASSEMBLY NO. 2 TECUMSEH LH195SP-67530D Parts Diagram

Insight Snow Thrower

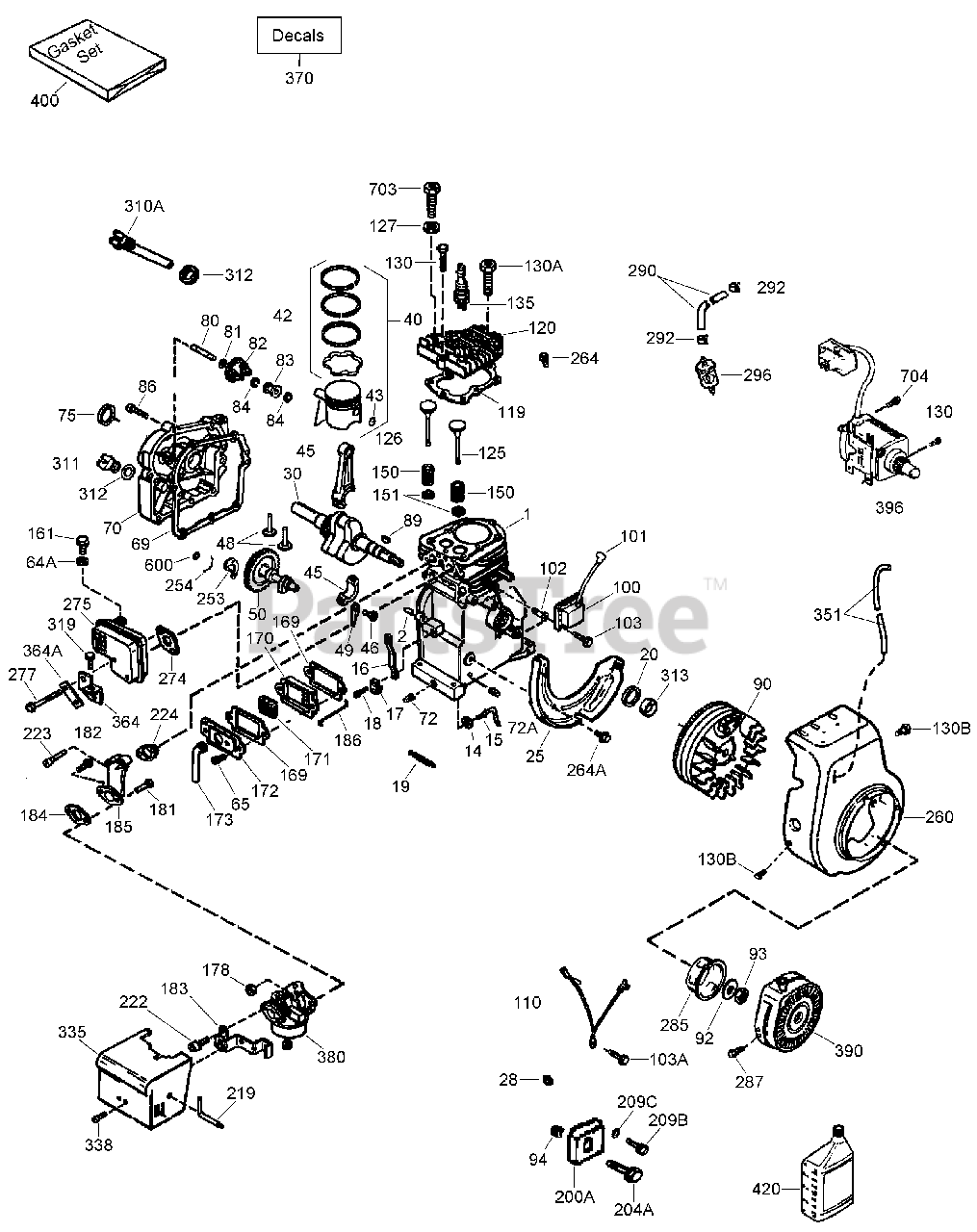

ENGINE ASSEMBLY NO. 2 TECUMSEH LH195SP-67530D Parts Diagram

  • Title

150

Lawn-Boy 31672

Spring-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve, Spring
(Superseded to 742357)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

161

Lawn-Boy 30063

Screw (T-30, 1/4-20x1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

169

Lawn-Boy 27234A

Gasket-Cover, Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

170

Lawn-Boy 27666

Body-Breather
(Superseded to 704563)

Note: Obtain from your local Tecumseh dealer

$169.99

$

Usually ships in 3-6 days

0

171

Lawn-Boy 31410

Element-Breather

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

172

Lawn-Boy 34146

Cover-Breather

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

173

Lawn-Boy 35350

Tube-Breather

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut and Lock Washer (1/4-28)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

181

Lawn-Boy 650870

Screw (1/4-28 x 1-11/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw (1/4-28 x 7/8)
(Superseded to 111-1250)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

183

Lawn-Boy 34583A

Bracket-Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

184

Lawn-Boy 26756

Gasket (Carburetor To Intake Pipe)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

185

Lawn-Boy 33691

Pipe-Intake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

186

Lawn-Boy 32698

Link-Governor to Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

200A

Lawn-Boy 30846

Bracket-Adjusting Bolt, Governor Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

204A

Lawn-Boy 30845A

Bolt-Adjusting, R.P.M.

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

209B

Lawn-Boy 30200

Screw (10-24 x 9/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

209C

Lawn-Boy 650518

Washer-Lock

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

219

Lawn-Boy 34582

Rod-Choke

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

222

Lawn-Boy 651081

Screw (10-32 X 15/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

223

Lawn-Boy 650664

Screw (1/4-20 x 1-19/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

224

Lawn-Boy 33673A

Gasket-Intake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

253

Lawn-Boy 36701

Weight-Release, Compression

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

254

Lawn-Boy 36702

Spring-Release, Compression
(Superseded to 706288)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

260

Lawn-Boy 35656A

Housing-Blower

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

264

Lawn-Boy 650561

Screw (1/4-20x19/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

264A

Lawn-Boy 650802

Screw (1/2-20x5/8)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

274

Lawn-Boy 35865

Gasket-Exhaust

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

275

Lawn-Boy 37684

Muffler (Includes 274)

Note: Obtain from your local Tecumseh dealer

$3.23

$

Usually ships in 3-6 days

0

277

Lawn-Boy 792005

Screw (1/4-20 x 2-1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

285

Lawn-Boy 36467B

Cup-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw (8-32 x 21/64)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

290

Lawn-Boy 37963

Line-Fuel, Low Permeation (16.0)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp-Line, Fuel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

296

Lawn-Boy 37768

Filter-Fuel (Includes 292)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

310A

Lawn-Boy 34245

Dipstick (Includes 312)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

311

Lawn-Boy 27625

Plug-Fill, Oil (Includes 312)
(Superseded to 741498)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

312

Lawn-Boy 29673

Gasket-Plug, Oil Fill

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

319

Lawn-Boy 650735

Screw (10-24 x 3/8)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

335

Lawn-Boy 35072B

Cover-Carburetor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

338

Lawn-Boy 650257

Screw (8-32 X 5/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

351

Lawn-Boy 32180C

Line-Primer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

364

Lawn-Boy 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

364A

Lawn-Boy 37673

Plate-Locking

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

370

Lawn-Boy 36695

Decal-Tecumseh Logo for Top of Recoil Starter
(Superseded to 704857)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

380

Lawn-Boy 640299B

Carburetor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

390

Lawn-Boy 590784

Starter-Recoil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

396

Lawn-Boy 37657

Electric Starter Motor Asm (110 Volt)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

400

Lawn-Boy 36444

Gasket Set

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

420

Lawn-Boy 730226A

Oil-Engine, S A E 5W30

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

600

Lawn-Boy 651013

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

703

Lawn-Boy 650818

Screw ( 5/16-18 x 1-1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

704

Lawn-Boy 650738

Screw (1/4-20 X 5/8)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

Lawn-Boy 754337A

Replacement-Block, Short

Note: Not illustrated Obtain from your local Tecumseh dealer

$

$

Currently unavailable

999

Lawn-Boy 730281

Winter Maintenance Kit

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
