34002 - Lawn-Boy Insight Snow Thrower (SN: 280000001 - 280999999) (2008) ELECTRIC STARTER NO. 37657 TECUMSEH LH195SP-67530D Parts Diagram

Insight Snow Thrower

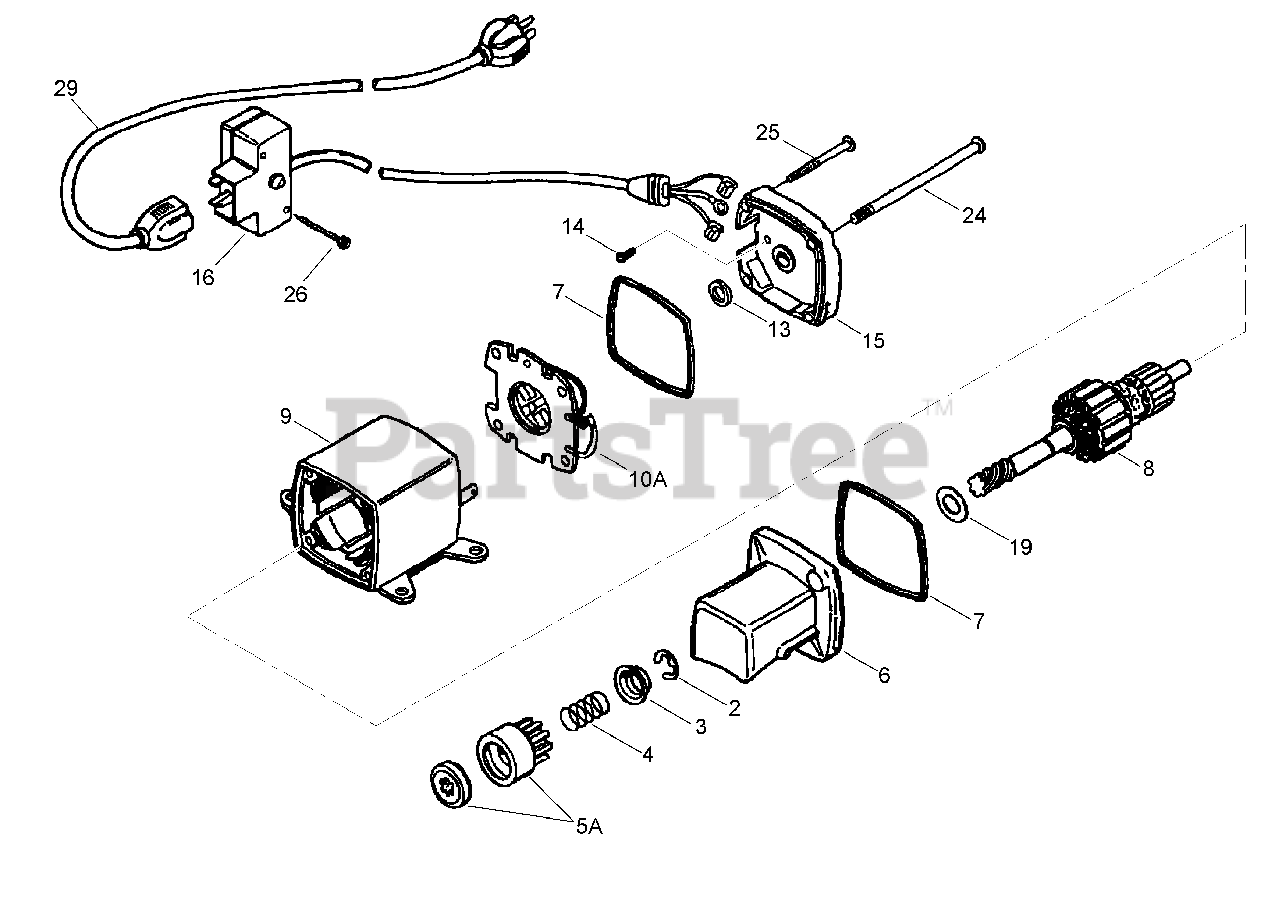

ELECTRIC STARTER NO. 37657 TECUMSEH LH195SP-67530D Parts Diagram

  • Title

Lawn-Boy 37657

Electric Starter Motor Asm (110 Volt)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 31749

Retainer-Ring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 33522

Retainer-Spring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 33769

Spring-Anti Drift

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

5A

Lawn-Boy 37332

Nut and Gear ASM (Includes 2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 35461

Drive End Cap Asm (Includes 7)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 35450

O-Ring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 35912

Armature

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

9

Housing Asm (Must Purchase Complete Motor)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

10A

Lawn-Boy 35452A

Brush Card ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590500

Washer-Thrust

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 33441

Screw-Ground

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 35453

Commutator End Cap ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 37680

Switch Box Asm

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 35911

Washer-Thrust

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

24

Lawn-Boy 35462

Bolt-Case

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 35456

Screw-Ground

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

26

Screw (O.E.M. supplied)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

29

Lawn-Boy 32450B

Cord-Extension (10-6) (Ref to engine parts list for mtg hardware)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
