34001 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) ROTOR DRIVE ASSEMBLY Parts Diagram

Insight Snow Thrower

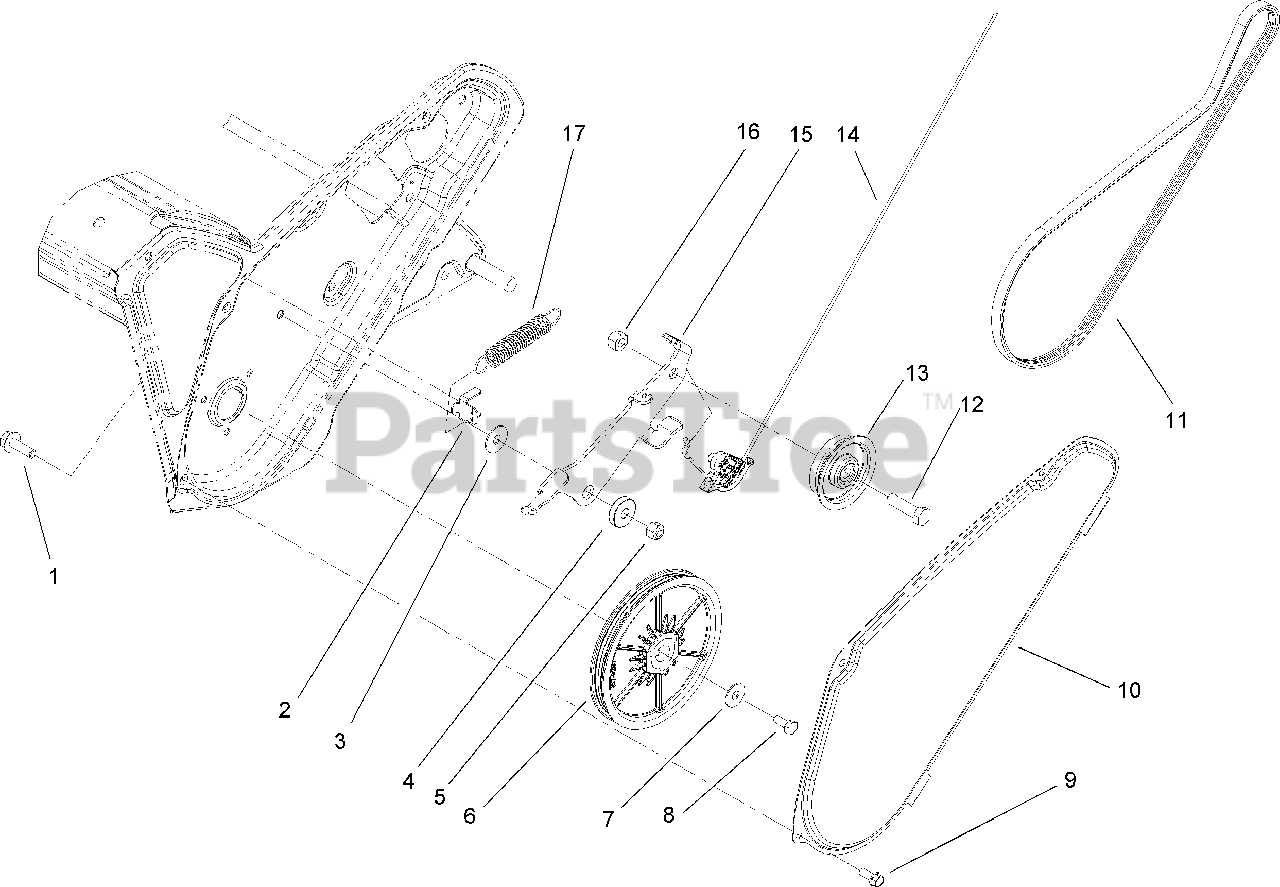

ROTOR DRIVE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

2

Lawn-Boy 108-4938

CLIP-SPRING, BRAKE
(Superseded to 136-7133)

$1.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-4925

WASHER

$1.99

$

In Stock, Qty 5

0

4

Lawn-Boy 108-4916

BUSHING-PIVOT

$2.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 107-9287

ROTOR PULLEY ASM

$19.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

8

Lawn-Boy 110-9381

SCREW-HH

$1.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 108-4893-03

COVER-BELT

$22.99

$

In Stock, Qty 5

0

11

Lawn-Boy 108-4921

BELT-DRIVE

$20.99

$

In Stock, Qty 7

0

12

Lawn-Boy 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

13

Lawn-Boy 114-3785

PULLEY-IDLER

$13.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 55-9320

CLUTCH CABLE

$

$

Not available

15

Lawn-Boy 114-3782

ARM-IDLER
(Superseded to 136-7138)

$11.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

17

Lawn-Boy 114-3788

SPRING-EXTENSION
(Superseded to 121-6630)

$5.49

$

In Stock, Qty 6

0
