34001 - Lawn-Boy Insight Snow Thrower (SN: 290000001 - 290999999) (2009) ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SP-67529D Parts Diagram

Insight Snow Thrower

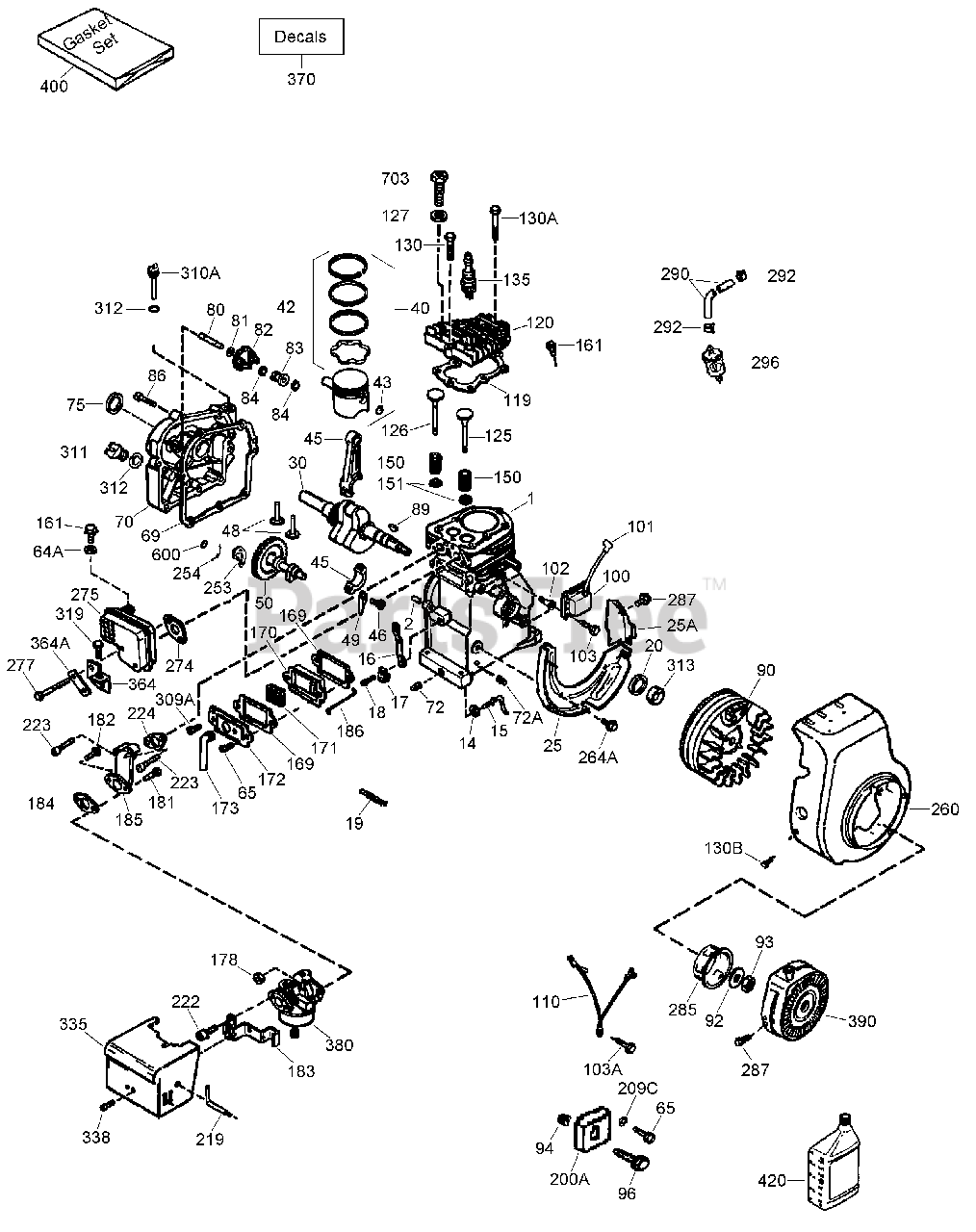

ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SP-67529D Parts Diagram

  • Title

1

Lawn-Boy 36469A

Cylinder Asm (Includes 2, 20, 72, 125)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 26727

Pin-Dowel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer-Flat

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 31334

Rod-Governor
(Superseded to 742339)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

16

Lawn-Boy 37729

Chute Idler Arm ASM
(Superseded to 741019)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

17

Lawn-Boy 31335

Clamp-Lever, Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw (T-15, 8-32 x 19/64)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 30342

Spring-Extension

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20

Lawn-Boy 32600

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 36552

Baffle-Housing, Blower

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25A

Lawn-Boy 35883

Extension-Baffle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 37842

Crankshaft

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 40005

Piston, Pin and Ring Set (.010 O S) (Includes 41-43)
(Superseded to 92-3755)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

40

Lawn-Boy 40004

Piston, Pin and Ring Set (Std) (Includes 41-43)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40007

Ring Set (.010 O S)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40006

Ring Set (STD)

Note: Obtain from your local Tecumseh dealer

$86.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 20381

Ring-Retaining, Piston Pin

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

45

Lawn-Boy 32875A

Connecting Rod Asm (Includes 46, 49)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

46

Lawn-Boy 32610A

Bolt-Rod, Connecting

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 37670

Lifter-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

49

Lawn-Boy 32654

Dipper-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 37671

Camshaft (M C R)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

64A

Lawn-Boy 8345

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

65

Lawn-Boy 30200

Screw (10-24 x 9/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 27677A

Gasket-Cover, Cylinder

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 32700B

Cover-Cylinder (Includes 75-83, 311)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

72

Lawn-Boy 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

72A

Lawn-Boy 28582

Plug-Pipe (Internal Hex, 1/4-18)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

75

Lawn-Boy 27897

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 30574A

Shaft-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer-Flat

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

84

Lawn-Boy 29193

Ring-Retaining

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw (1/4-20 x 1-1/4)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 610961

Key-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

90

Lawn-Boy 611195

Flywheel
(Superseded to 612564)

$5.49

$

Usually ships in 3-6 days

0

92

Lawn-Boy 650815

Washer-Belleville

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650816

Nut-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

94

Lawn-Boy 651016

Nut (10-32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

96

Lawn-Boy 30845A

Bolt-Adjusting, R.P.M.

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 34443C

Ignition-State, Solid

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

102

Lawn-Boy 651024

Stud-Mounting, Solid State

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

103A

Lawn-Boy 650821

Screw (10-32 x 1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 37682

Wire-Ground

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 36443

Gasket-Head, Cylinder

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 37675

Head-Cylinder (Includes 130A)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 36472

Valve-Exhaust (1/32 O S) (Includes 151)
(Superseded to 742719)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

125

Lawn-Boy 36471

Valve-Exhaust (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

126

Lawn-Boy 32645A

Valve-Intake (1/32 O S) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 32644A

Valve-Intake (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer-Flat

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw (5/16-18x1-1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130A

Lawn-Boy 650694A

Screw (5/16-18 X 2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130B

Lawn-Boy 650737

Screw (1/4-20 x 1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 35395

Spark Plug-Resistor (R J19 L M)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
