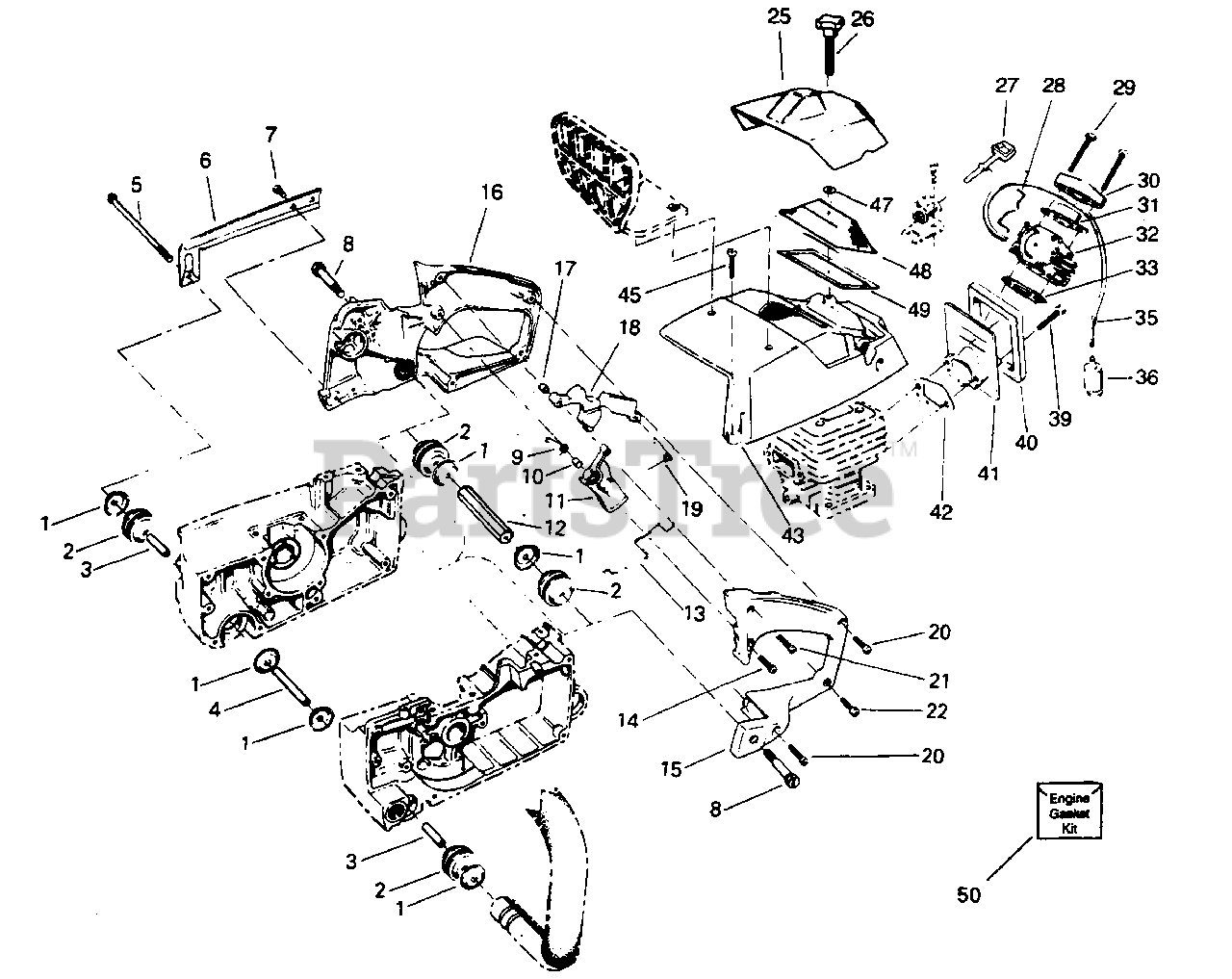

3400 - Poulan Chainsaw External Power Unit Parts Diagram

Chainsaw

External Power Unit Parts Diagram

  • Title

1

Poulan 530024376

Cup Isolator

Note: See Drawing Note #3 for Service Reference

$4.99

$

Usually ships in 3-10 days

0

New Style Rear Isolation System

$

$

Not available

Old Style Rear Isolation System

$

$

Not available

2

Isolator-Powerhead Rear Handle

$

$

Not available

2

Poulan 530024373

Use on Guide Bar Powerhead

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530024528

Use on Bow Guide Powerhead

$

$

Not available

3

Poulan 530015362

Spacer-Front Handlebar Isolator Mount

$

$

Not available

4

Poulan 530015361

Spacer-Front Handlebar-Center-Isolator Mount

$

$

Not available

5

Poulan 530015391

Screw - 1/4-20x5-5/16

$15.99

$

Usually ships in 3-10 days

0

6

Handle Brace-See

Note: See Drawing Note #4 for Service Reference

$

$

Not available

7

Screw - 1/2-20 x 3/4 Button Hd.

Note: See Drawing Note #4 for Service Reference

$

$

Not available

8

Poulan 530015462

Shoulder Screw 1/2-20 - Isolator

Note: See Drawing Note #3 for Service Reference

$

$

Not available

9

Poulan 530025469

Spring-Trigger

$

$

Not available

10

Poulan 530032059

Bushing-Trigger

$

$

Not available

11

Poulan 530026013

Throttle-Trigger

$

$

Not available

12

Poulan 530025258

Spacer-Isolator (Center)

Note: See Drawing Note #3 for Service Reference

$

$

Not available

13

Poulan 530024699

Wire Throttle

$

$

Not available

14

Poulan 530015369

Shoulder Screw - 10-24x5/8 - Fil. Hd. - Throttle Trigger

$

$

Not available

15

Rear Handle Left

Note: See Drawing Note #3 for Service Reference

$

$

Not available

16

Rear Handle Right

Note: See Drawing Notes #3 & #4 for Service Reference

$

$

Not available

17

Poulan 530032053

Bushing-Throttle Lock

$

$

Not available

18

Poulan 530024357

Throttle Lock

$

$

Not available

19

Poulan 530024378

Spring-Throttle Lock

$

$

Not available

20

Poulan 530015403

Screw - 10-24x13/16 - Fil. Hd. Rear Handle Lower

$3.99

$

In Stock, only 1 left!

0

21

Poulan 530015393

Screw - 8-32x13/16 - Fil. Hd. Rear Handle Throttle Lock

$

$

Not available

22

Poulan 530015608

Screw - 8-32x9/16 - Fil. Hd. Rear Handle Lower

$3.99

$

In Stock, Qty 5

0

25

Cover-Carburetor

$

$

Not available

25

Poulan 530025892

Type I

$

$

Not available

25

Poulan 530024976

Type II

$

$

Not available

26

Poulan 530024482

Knob-Carburetor Cover

$7.49

$

In Stock, only 1 left!

0

27

Poulan 530025919

Choke Rod

$

$

Not available

28

Poulan 530024383

Wire Choke

$

$

Not available

29

Poulan 530015245

Screw - 10-24x11/16 - Fil. Hd. Carburetor to Adaptor

$2.49

$

Usually ships in 3-10 days

0

30

Poulan 530019104

Seal-Adaptor Shield

Note: Indicates Gasket Kit contents, Key No. 50, this page

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530024349

Bracket-Carburetor Seal

$

$

Not available

32

Poulan 530035094

Carburetor

$

$

Not available

33

Poulan 530019099

Gasket-Carburetor to Adaptor

Note: Indicates Gasket Kit contents, Key No. 50, this page

$

$

Not available

35

Poulan 530069216

Line Kit

Note: New Part No.

$11.99

$

In Stock, Qty 20+

0

36

Poulan 530091878

Fuel Pick-up Ass'y

Note: See Drawing Note #5 for Service Reference.

$

$

Not available

39

Poulan 530015414

Screw - 10 - 24 x 1-3/16 - Hex Hd. - Adaptor to Cylinder

$

$

Not available

40

Poulan 530019107

Seal-Carburetor Adaptor

Note: Indicates Gasket Kit contents, Key No. 50, this page

$

$

Not available

41

Poulan 530024229

Carburetor Adaptor

$

$

Not available

42

Poulan 530019101

Gasket - Adaptor to Cylinder

Note: Indicates Gasket Kit contents, Key No. 50, this page

$

$

Not available

43

Cylinder Shield

$

$

Not available

43

Poulan 530025893

Type I

$

$

Not available

43

Poulan 530026015

Type II

$

$

Not available

45

Poulan 530015168

Screw - 10-24x5/8 - Fil. Hd. Cylinder Shield to Crankcase

$

$

Not available

47

Poulan 530024877

Retainer-Carb. Cover Knob

$3.99

$

In Stock, Qty 10

0

48

Poulan 530024548

Air Filter

$

$

Not available

49

Poulan 530019123

Gasket - Air Filter

Note: Indicates Gasket Kit contents, Key No. 50, this page

$

$

Not available

50

Poulan 530069190

Kit - Engine Gasket

Note: Contents indicated by * on "Engine Assembly", "External Power Unit", & "Handle Bar Assembly" illustration & parts list

$

$

Not available
