3400 - Poulan Chainsaw Chain Brake Assembly P/N 69208 Parts Diagram

Chainsaw

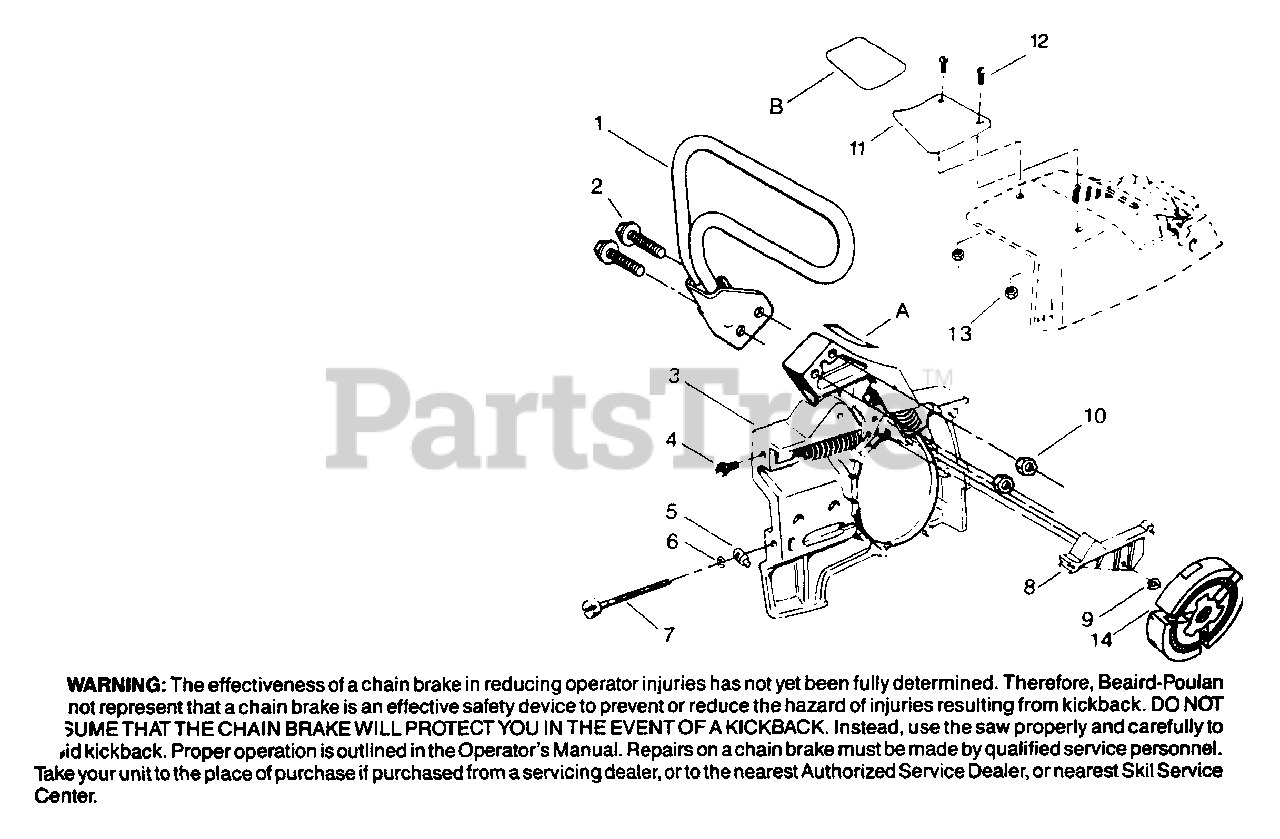

Chain Brake Assembly P/N 69208 Parts Diagram

  • Title

1

Poulan 530025911

Handle - Actuating Arm

$

$

Not available

2

Poulan 530015545

Screw - Handle

$1.49

$

Usually ships in 3-10 days

0

3

Poulan 530011769

Bar Clamp & Actuating Arm Ass'y.

$

$

Not available

4

Poulan 530015415

Screw - Adjusting

$

$

Not available

5

Poulan 530025044

Nut - Bar Adjusting
(Superseded to 530023064)

$8.99

$

Usually ships in 3-10 days

0

6

Poulan 530024419

"E" Ring

$6.49

$

In Stock, Qty 9

0

7

Poulan 530015385

Screw - Bar Adjusting

$6.49

$

In Stock, Qty 9

0

8

Poulan 530024901

Guard

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530015439

Retaining Ring

$2.49

$

Usually ships in 3-10 days

0

10

Poulan 530015217

Nut - #10 - 24
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530025914

Shield - Heat

$

$

Not available

12

Poulan 530015406

Screw - #10 - 24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530001543

Nut - #10 - 24

$

$

Not available

14

Poulan 530010291

Clutch

$

$

Not available

A

Poulan 530026372

Decal - Warning

$

$

Not available

B

Poulan 530026341

Decal - Instruction (Heat Shield)

$

$

Not available

Poulan 530024768

Decal - Bar Clamp

Note: (Not Shown)

$

$

Not available

Poulan 530069208

Chain Brake Assembly

$

$

Not available
