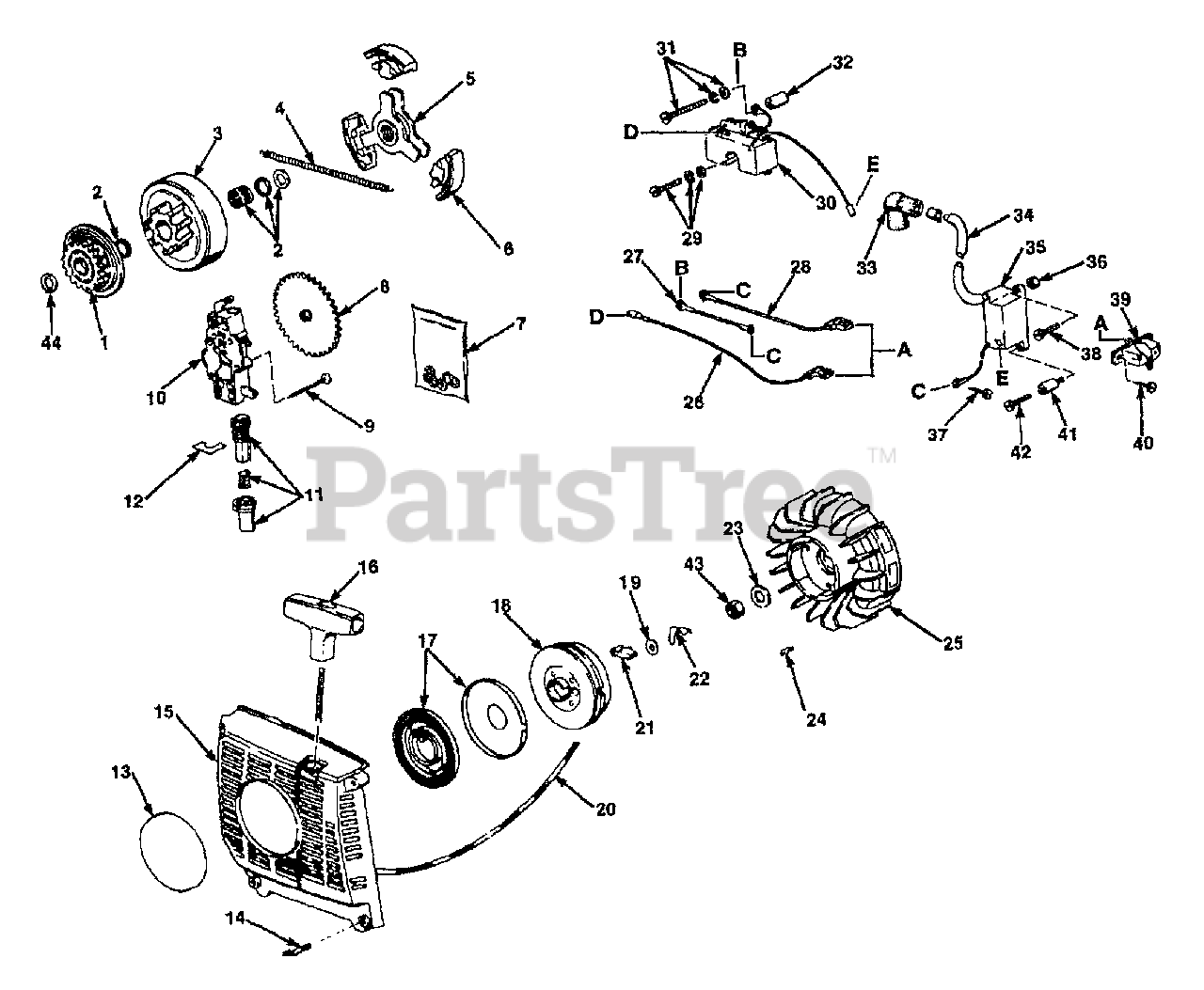

340 (UT-10660-A) - Homelite Chainsaw Starter, Ignition, Clutch & Oil Pump Parts Diagram

Chainsaw

Starter, Ignition, Clutch & Oil Pump Parts Diagram

  • Title

1

Homelite 98474

ACTIVATOR-3/8 P., 7T

$

$

Not available

Homelite 98280

ACTIVATOR-325, 8T
(Superseded to A98280)

Note: (opt.)

$

$

Not available

2

Homelite A98482

NEEDLE BEARING KIT

$

$

Currently unavailable

3

Homelite A98473

SPROCKET & DRUM, 3/8 P, 7 T.
(Superseded to A07345)

$

$

Not available

Homelite A98281

SPROCKET & DRUM, .325 P, 8 T.

Note: (opt.)

$

$

Not available

4

Homelite 98453

SPRING-Clutch
(Superseded to UP07449)

$

$

Not available

5

Homelite A98289

SPRING-Clutch

$

$

Currently unavailable

6

Homelite 98292

SHOE-Clutch

$8.99

$

Usually ships in 3-7 days

0

7

Homelite A98484

KIT-Pump repair

$

$

Currently unavailable

8

Homelite A98263

GEAR & HUB ASSEMBLY

$

$

Currently unavailable

9

Homelite 88138

SCREW (4.2 x 32)

$

$

Not available

10

Homelite A98244

OIL PUMP ASSEMBLY

$

$

Currently unavailable

11

Homelite A98483

REGULATOR REPAIR KIT

Note: Includes item 12

$

$

Not available

12

Homelite 98266

PLATE-Support

$

$

Not available

13

Homelite 98183

DECAL-Starter (340)

$

$

Currently unavailable

14

Homelite 88142

SCREW (5 x 20)

$

$

Not available

15

Homelite 98321

HOUSING-Starter

$

$

Not available

16

Homelite 98331

GRIP-Starter
(Superseded to 02264)

$

$

Not available

17

Homelite A98326

SPRING & CONTAINER

$

$

Currently unavailable

18

Homelite 98329

PULLEY-Starter

$

$

Not available

19

Homelite 98423

WASHER

$

$

Not available

20

Homelite A98485

STARTER PAWL & ROPE KIT

Note: Includes items 21 & 22

$

$

Not available

21

Homelite 98332

STARTER PAWL
(Superseded to 98332A)

$

$

Not available

22

Homelite 98334

CLIP-Retaining
(Superseded to 03750B)

$

$

Not available

23

Homelite 83207

WASHER-Flat

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 98318

KEY-Woodruff

$

$

Not available

25

Homelite A98310

ROTOR

$

$

Currently unavailable

26

Homelite A98373

WIRE-Ground

$

$

Not available

27

Homelite A98372

CABLE-Insulated

$

$

Currently unavailable

28

Homelite A98374

CABLE-Insulated

$

$

Currently unavailable

29

Homelite 88145

SCREW-F.H. (5 x 20)

$

$

Not available

30

Homelite 98365

MODULE & CORE

$214.99

$

Usually ships in 3-7 days

0

31

Homelite 88144

SCREW-F.H. (5 x 30)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 98367

SPACER

$

$

Not available

33

Homelite A98369

TERMINAL-Spark plug

$

$

Currently unavailable

34

Homelite 98376

TUBING-Silicon 3 1/2"

$

$

Not available

35

Homelite 98366

COIL-Ignition

$

$

Not available

36

Homelite 81403

NUT

$

$

Not available

37

Homelite 98375

SCREW (3.9 x 13)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 88146

SCREW-F.H. (4 x 14)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 98377

SWITCH (on/off)

$

$

Not available

40

Homelite 88148

SCREW (3.5 x 13)

$

$

Not available

41

Homelite 98368

STUD

$

$

Not available

42

Homelite 88147

SCREW (F.H. 4 x 18)

$

$

Not available

43

Homelite 81402

NUT-Hex

$

$

Not available

44

Homelite 98475

WASHER

$

$

Not available
