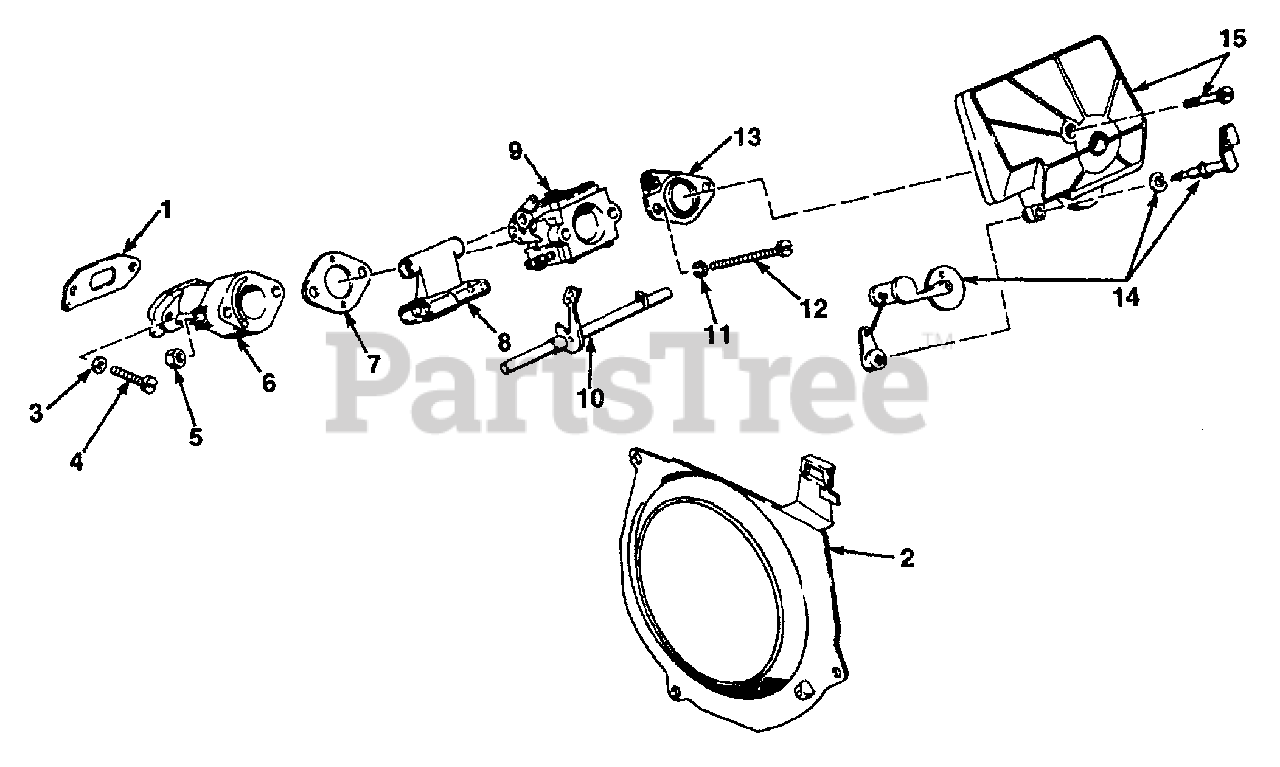

340 (UT-10660-A) - Homelite Chainsaw Intake Assy Parts Diagram

Chainsaw

Intake Assy Parts Diagram

  • Title
1

Homelite 98335

GASKET-Intake manifold

$

$

Not available

2

Homelite 98319

GUIDE-Air

$11.99

$

Usually ships in 3-7 days

0

3

Homelite 83203

WASHER-Spring

$

$

Not available

4

Homelite 98459

SCREW (M5 x 20)

$

$

Not available

5

Homelite 81405

NUT (M5)

$

$

Not available

6

Homelite 983371

MANIFOLD-Intake

$

$

Currently unavailable

7

Homelite 98339

GASKET-Carburetor
(Superseded to 900843001)

$

$

Not available

8

Homelite 98361

GUIDE-Carburetor screw

$

$

Not available

9

Homelite A98340

CARBURETOR (HU63A) (Till.)

$

$

Currently unavailable

10

Homelite 98362

SHAFT-Throttle

$

$

Not available

11

Homelite 83208

WASHER-Spring

$

$

Not available

12

Homelite 88143

SCREW-(M5 x 45)

$

$

Not available

13

Homelite 98351

PLATE-Filter mounting

$

$

Not available

14

Homelite A98486

KIT-Choke lever

$

$

Currently unavailable

15

Homelite A98487

AIR FILTER ASSEMBLY

$

$

Currently unavailable

$

$

Currently unavailable
