340 (UT-10660-A) - Homelite Chainsaw Engine Internals Parts Diagram

Chainsaw

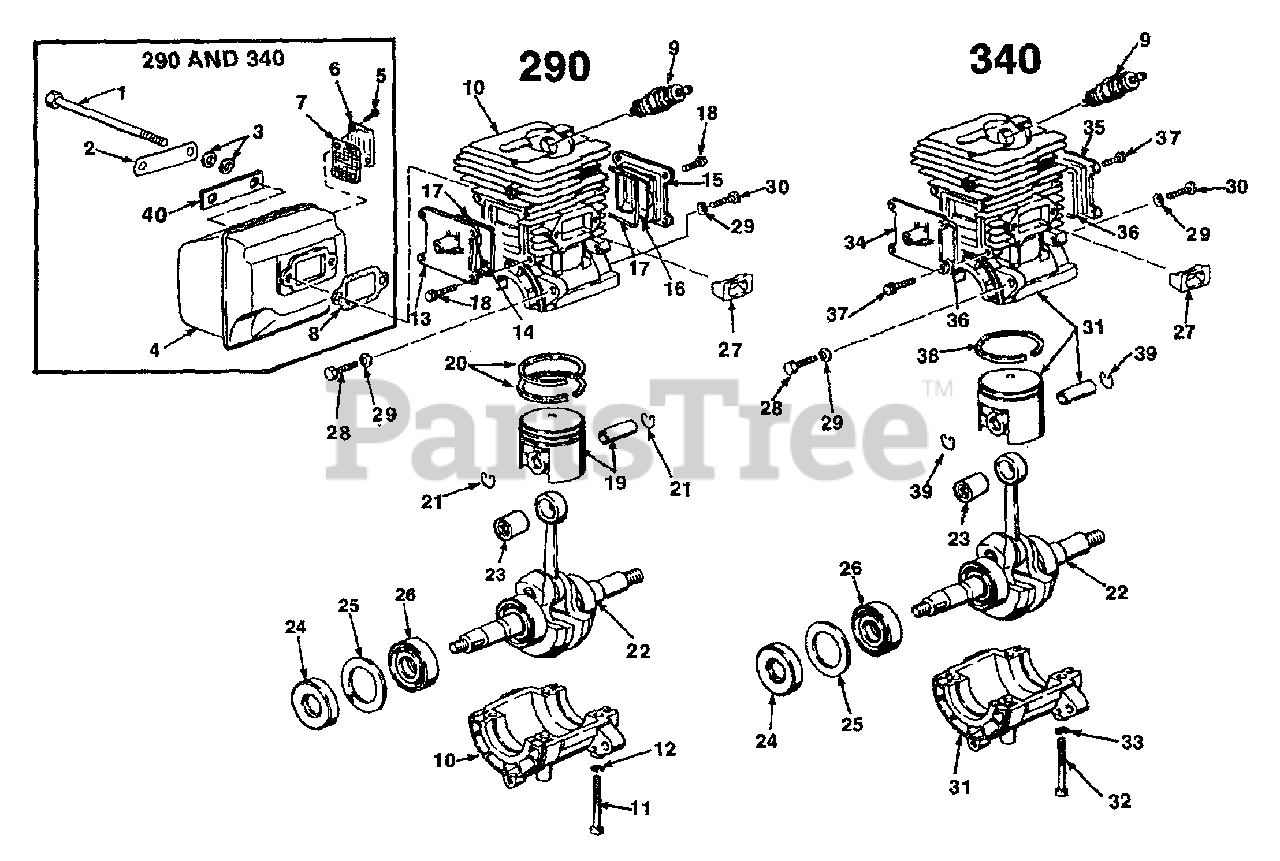

Engine Internals Parts Diagram

  • Title

1

Homelite 88137

SCREW-(M6 x 90)

$

$

Not available

2

Homelite 98242

PLATE-Locking

$

$

Not available

3

Homelite 98446

WASHER-Belleville
(Superseded to 83009)

$8.49

$

Usually ships in 3-7 days

0

4

Homelite A98233

MUFFLER ASSEMBLY

Note: Includes items 5 - 7

$

$

Currently unavailable

5

Homelite 88156

SCREW

$

$

Not available

6

Homelite 98500

COVER-Muffler

$

$

Not available

7

Homelite 98499

SPARK ARRESTOR

$

$

Not available

8

Homelite 98241

MUFFLER GASKET

$

$

Not available

9

Homelite 93561S

SPARK PLUG (Champion CJ6Y)
(Superseded to D93561)

$

$

Not available

Homelite 88217

SPARK PLUG (Champion RCJ6Y)

Note: (Resistor type)

$

$

Currently unavailable

10

Homelite A98444

CRANKCASE & CYLINDER

Note: Not used on this model; Includes items 11 - 18

$

$

Currently unavailable

11

Homelite 88133

SCREW-M5 x 45

Note: Not used on this model

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 83200

WASHER-Lock

Note: Not used on this model

$

$

Not available

13

Homelite 982121

COVER-Transfer port

Note: Not used on this model

$

$

Not available

14

Homelite 98470

INSERT-Transfer port

Note: Not used on this model

$6.49

$

Usually ships in 3-7 days

0

15

Homelite 98208

COVER-Transfer port

Note: Not used on this model

$

$

Not available

16

Homelite 98469

INSERT-Transfer port

Note: Not used on this model

$

$

Not available

17

Homelite 98215

"O" RING

Note: Not used on this model

$

$

Not available

18

Homelite 88134

SCREW-M4 x 12

Note: Not used on this model

$1.99

$

Usually ships in 3-7 days

0

19

Homelite A98511

PISTON & PIN ASSEMBLY

Note: Not used on this model; Includes items 20 & 21

$

$

Currently unavailable

20

Homelite 98439

PISTON RING

Note: Not used on this model

$

$

Not available

21

Homelite 98198

RING-Piston pin retaining

Note: Not used on this model

$

$

Not available

22

Homelite A98189

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

23

Homelite 98194

BEARING-Needle roller

$

$

Not available

24

Homelite 98197

SEAL-Main
(Superseded to UP06470)

$

$

Not available

25

Homelite 98195

RETAINER-Bearing

$

$

Not available

26

Homelite 98196

BEARING-Ball

$40.99

$

Usually ships in 3-7 days

0

27

Homelite 98216

INSERT-INTAKE PORT

$

$

Not available

28

Homelite 88136

SCREW-(M5 x 23)

$3.49

$

Usually ships in 3-7 days

0

29

Homelite 83203

WASHER-Flat (M5)

$

$

Not available

30

Homelite 88135

SCREW-(M5 x 18)

$3.49

$

Usually ships in 3-7 days

0

31

Homelite A98510

CRANKCASE & CYLINDER W/Piston Assembly (Matched)

Note: Includes items 32 - 40

$

$

Currently unavailable

32

Homelite 88133

SCREW

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 83200

WASHER-Lock

$

$

Not available

34

Homelite A98211

TRANSFER PORT COVER ASSEMBLY

$

$

Currently unavailable

35

Homelite A98207

TRANSFER PORT COVER ASSEMBLY

$

$

Currently unavailable

36

Homelite 98215

"O" RING

$

$

Not available

37

Homelite 88134

SCREW (M4 x 12)

$1.99

$

Usually ships in 3-7 days

0

38

Homelite 98206

PISTON RING

$

$

Not available

39

Homelite 98198

RING-Piston pin retaining

$

$

Not available

40

Homelite 98616

PLATE-Support

$

$

Not available
