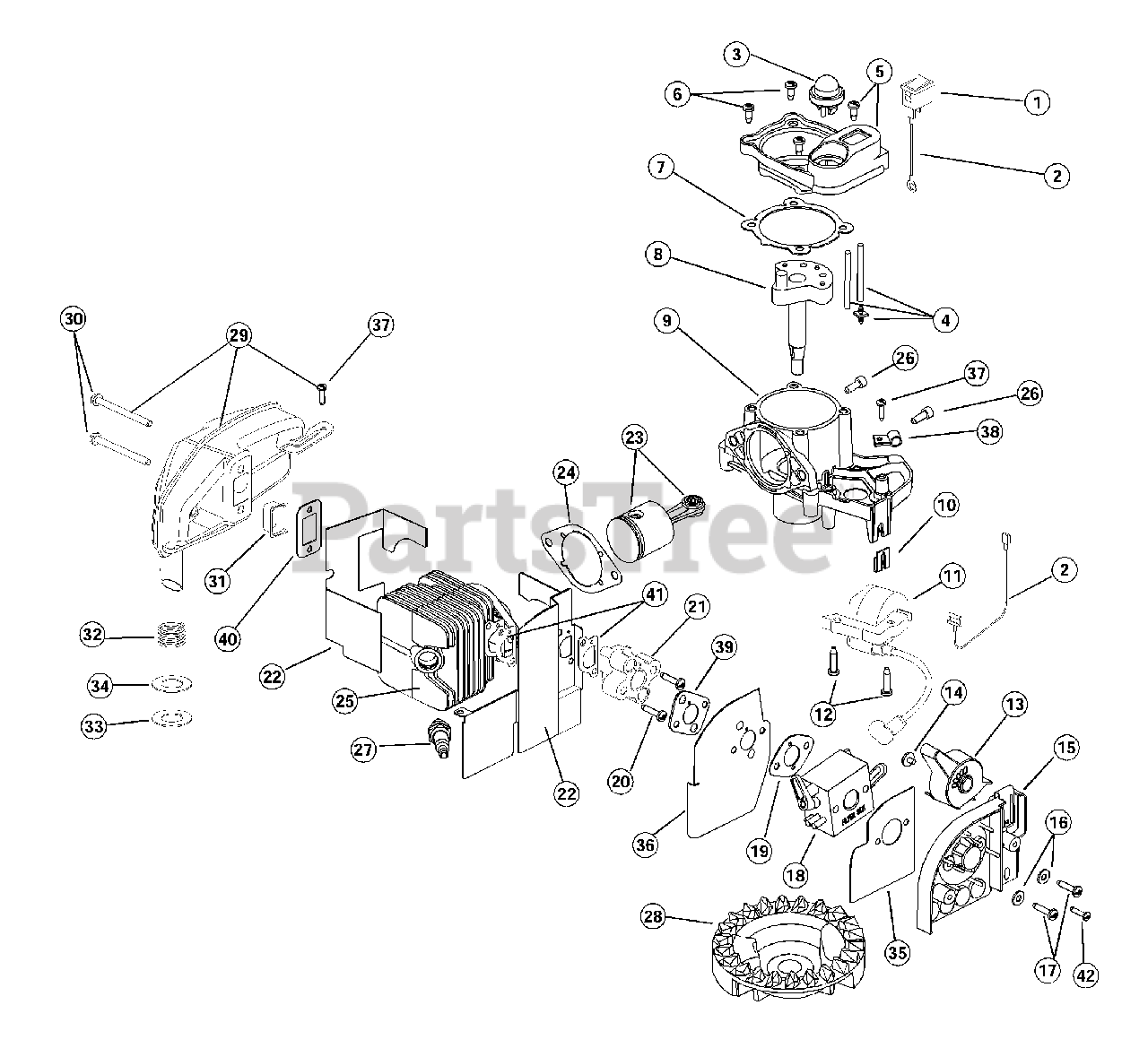

340 BV (41CS340G034) - Ryobi Blower Vacuum Engine Parts Parts Diagram

Blower Vacuum

Engine Parts Parts Diagram

  • Title

1

MTD 791-182441

On/Off Stop Control Switch with Wire

$

$

Not available

2

MTD 791-182439

Wire Lead

$

$

Not available

3

MTD 791-182607

Primer Bulb

Note: (includes 4)

$20.99

$

In Stock, only 1 left!

0

4

MTD 791-182442

Return Lines

$

$

Not available

5

MTD 791-182443

Crankcase Plug

Note: (includes 6)

$

$

Not available

6

MTD 791-180221

Crankcase Plug Screws

$

$

Not available

7

MTD 791-182444

Crankcase Plug Gasket

$

$

Not available

8

MTD 791-181866

Power Shaft Assembly

$

$

Not available

9

MTD 791-182445

Crankcase Assembly

Note: (includes 6, 8 & 10)

$

$

Not available

10

MTD 791-181064

Tinnerman Nut

$

$

Not available

11

MTD 791-182446

Module Assembly

Note: (includes 12)

$

$

Not available

12

MTD 791-182447

Module Screw

$

$

Not available

13

MTD 791-182448

Throttle Lever

$

$

Not available

14

MTD 791-182449

Screw

$

$

Not available

15

MTD 791-182450

Air Cleaner Base

$

$

Not available

16

MTD 791-182451

Washer

$

$

Not available

17

MTD 791-182452

Carburetor Mount Screw

$

$

Not available

18

MTD 791-182453

Carburetor

Note: (includes 4)

$

$

Not available

19

MTD 791-182454

Carburetor Gasket

$

$

Not available

20

MTD 791-182455

Spacer Mounting Screw

$

$

Not available

21

MTD 791-182456

Carburetor Spacer

$

$

Not available

22

MTD 753-04163

Cylinder Baffle Assembly

$

$

Not available

23

MTD 791-182458

Piston and Rod Assembly

$

$

Not available

24

MTD 791-182459

Cylinder Gasket

$

$

Not available

25

MTD 791-182460

Cylinder Assembly
(Superseded to 753-04166)

Note: (includes 24 & 26)

$

$

Not available

26

MTD 791-182461

Cylinder Bolt

$

$

Not available

27

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 2 left!

0

28

MTD 791-182462

Flywheel

$

$

Not available

29

MTD 792-182756

Muffler Assembly

Note: (includes 30-34 & 37)

$

$

Currently unavailable

30

MTD 791-160335

Muffler Mounting Screw

$

$

Not available

31

MTD 791-182762

Spark Arrestor Screen

$

$

Not available

32

MTD 753-04168

Exhaust Tube Spring

$

$

Not available

33

MTD 753-04169

Exhaust Tube Washer

$

$

Not available

34

MTD 791-182759

Exhaust Tube Gasket

$

$

Not available

35

MTD 791-182515

Air Filter Heat Shield

$

$

Not available

36

MTD 791-182516

Carburetor Heat Shield

$

$

Not available

37

MTD 791-182188

Screw

$

$

Not available

38

MTD 791-182491

Clip

$

$

Not available

39

MTD 791-182518

Heat Shield Gasket

$

$

Not available

40

MTD 753-04167

Exhaust Gasket

$

$

Not available

41

MTD 791-182563

Intake Gasket

$

$

Not available

42

MTD 791-181930

Screw

$6.99

$

In Stock, only 1 left!

0

MTD 791-182567

Kit, Foam Seal

Note: Not Shown

$

$

Not available

MTD 791-182520

O.E.M. Carburetor Repair Kit (Walbro)

Note: Not Shown

$

$

Not available

MTD 791-182521

Gasket Diaphragm Repair Kit (Walbro)

Note: Not Shown

$

$

Not available

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 791-182498

Short Block Assembly

Note: (includes 8-10 & 23-27); Not Shown

$

$

Not available

MTD 791-610309

Oil Seal

Note: Not Shown

$16.99

$

Usually ships in 3-6 days

0
