340 BV (41BS340G034) - Ryobi Blower Vacuum Housing Parts Parts Diagram

Blower Vacuum

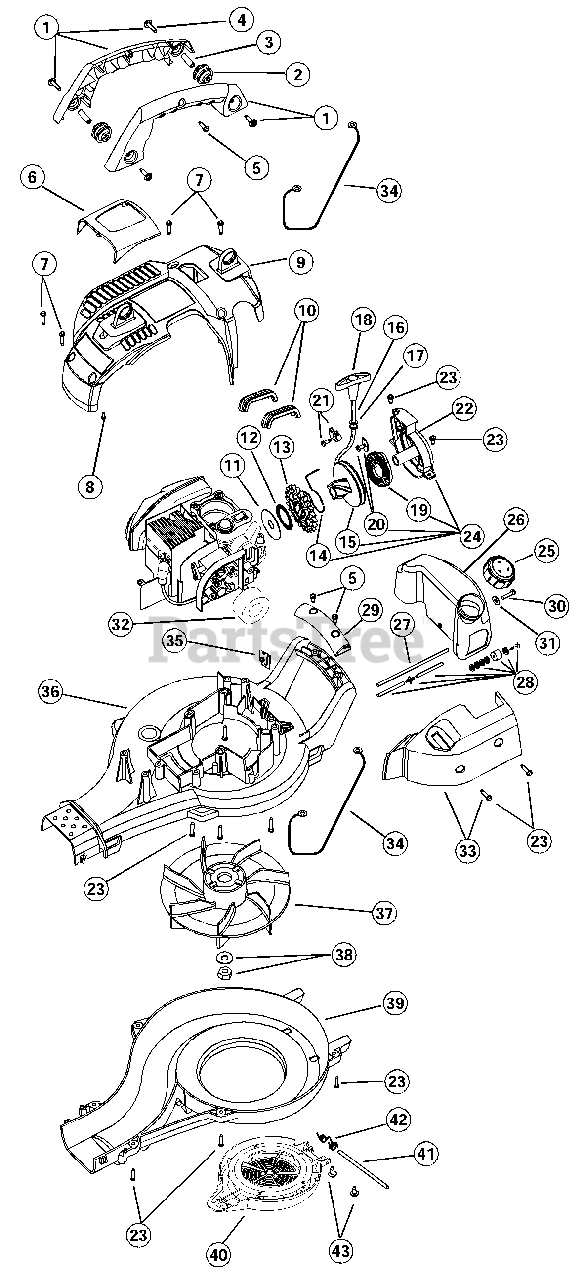

Housing Parts Parts Diagram

  • Title

1

MTD 791-182465

Handle Grip Assembly

Note: (includes 2-5)

$

$

Not available

2

MTD 791-182466

Vibration Dampner

$

$

Not available

3

MTD 791-182467

Dampner Spacer

$

$

Not available

4

MTD 791-182468

Handle Screw

$12.99

$

Usually ships in 3-6 days

0

5

MTD 791-182469

Screw
(Superseded to 753-1202)

$3.99

$

Usually ships in 3-6 days

0

6

MTD 791-182470

Diverter

Note: (includes 8)

$

$

Not available

7

MTD 791-147049

Cover Screw

$16.99

$

Usually ships in 3-6 days

0

8

MTD 791-182474

Baffle Screw
(Superseded to 3661)

$7.49

$

Usually ships in 3-6 days

0

9

MTD 791-182766

Engine Cover Assembly

$

$

Not available

10

MTD 791-182763

Fuel Tank Pad

$

$

Not available

11

MTD 791-182482

Washer

$

$

Not available

12

MTD 791-182483

Gear Return Spring

$

$

Not available

13

MTD 791-182484

Pulley Gear

$

$

Not available

14

MTD 791-182485

Friction Spring

$

$

Not available

15

MTD 791-182486

Starter Pulley

$

$

Not available

16

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

17

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

18

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

19

MTD 791-613102

Rewind Spring

$26.99

$

Usually ships in 3-6 days

0

20

MTD 791-182488

Pulley Retainer Assembly

$

$

Not available

21

MTD 791-182487

Rope Guide Retainer Assembly

$

$

Not available

22

MTD 791-182489

Recoil Housing

$

$

Not available

23

MTD 791-147049

Recoil Case Screw

$16.99

$

Usually ships in 3-6 days

0

24

MTD 791-182490

Recoil Housing Assembly

Note: (includes 12-23)

$

$

Not available

25

MTD 791-182438

Fuel Cap
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

26

MTD 791-182492

Fuel Tank Assembly

Note: (includes 25, 27 & 28)

$

$

Not available

27

MTD 791-182495

Fuel Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

28

MTD 791-182496

Fuel Line Assembly

$

$

Not available

29

MTD 791-182497

Assist Handle

$

$

Not available

30

MTD 791-181930

Fuel Tank Screw

$6.99

$

In Stock, only 1 left!

0

31

MTD 791-182568

Washer

$4.49

$

Usually ships in 3-6 days

0

32

MTD 791-182500

Air Filter Assembly

$

$

Not available

33

MTD 791-182501

Air Filter Cover

Note: (includes 23)

$

$

Not available

34

MTD 791-182502

Ground Wire

$

$

Not available

35

MTD 791-181064

Tinnerman Nut

$

$

Not available

36

MTD 791-182764

Upper Housing Assembly

$

$

Not available

37

MTD 791-182506

Impeller

$

$

Not available

38

MTD 791-182507

Washer and Lock Nut Assembly

$

$

Not available

39

MTD 791-182577

Lower Housing with Insert

$

$

Not available

40

MTD 791-182578

Vacuum Door Assembly

$

$

Not available

41

MTD 791-182512

Hinge Shaft

$

$

Not available

42

MTD 791-182513

Spring

$

$

Not available

43

MTD 791-182449

Screw

$

$

Not available

MTD 791-182647

Blower Outlet Tube

Note: not shown

$

$

Not available

MTD 791-182511

Ring Reducer Gasket

Note: not shown

$

$

Not available

MTD 791-147543

Ryobi 2-Cycle Oil

Note: not shown

$

$

Not available

MTD 791-182476

Vacuum Bag Assembly

Note: (includes vacuum bag, cable tie and vacuum bag adapter); not shown

$

$

Not available

MTD 791-612930

Cable Tie

Note: not shown

$10.99

$

Usually ships in 3-6 days

0

MTD 791-182476

Vacuum Bag Adapter

Note: not shown

$

$

Not available

MTD 791-182480

Vacuum Tube Assembly

Note: (includes Upper Vacuum Tube, Lower Vacuum Tube & Knob Assembly); not shown

$

$

Not available

MTD 791-182479

Upper Vacuum Tube

Note: not shown

$

$

Not available

MTD 791-182517

Lower Vacuum Tube

Note: not shown

$

$

Not available

MTD 791-182481

Knob Assembly

Note: not shown

$

$

Not available
