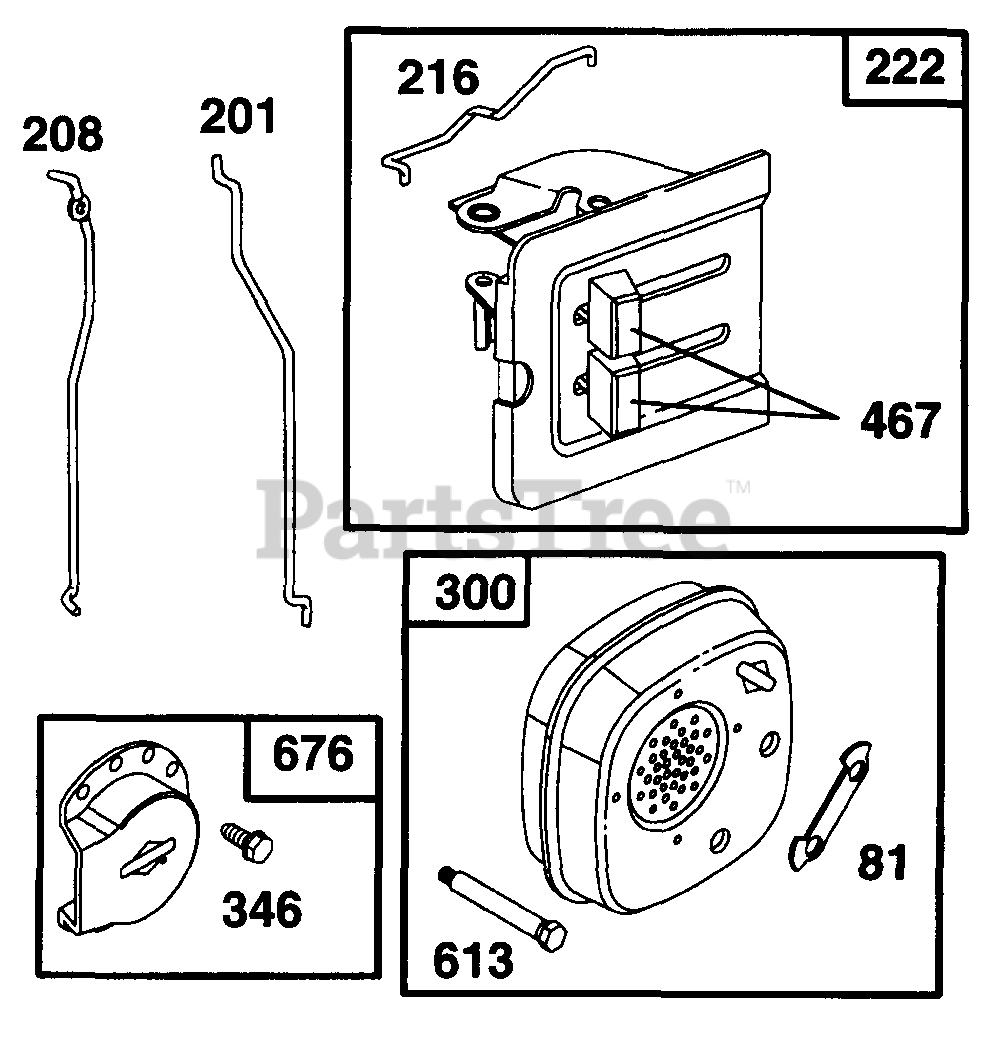

340 (21A-340-100) - Cub Cadet Front-Tine Tiller Engine (1997) Muffler & Controls Parts Diagram

Front-Tine Tiller Engine

Muffler & Controls Parts Diagram

  • Title
81

Cub Cadet BS-222263

Lock-Screw

$

$

Not available

201

Cub Cadet BS-262280

Link-Governor

$

$

Not available

208

Cub Cadet BS-262279

Rod-Control
(Superseded to BS-691813)

$

$

Not available

216

Cub Cadet BS-262359

Link-Choke
(Superseded to BS-691824)

$9.99

$

In Stock, only 2 left!

0

222

Cub Cadet BS-490649

Panel-Control

$

$

Not available

300

Cub Cadet BS-494585

Muffler-Exhaust

$23.99

$

Usually ships in 2-12 days

0

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

467

Cub Cadet BS-280715

Knob-Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 4 left!

0

613

Cub Cadet BS-93935

Screw-Hex Head
(Superseded to BS-691413)

$5.99

$

Usually ships in 2-12 days

0

676

Cub Cadet BS-393757

Deflector-Exhaust
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0
