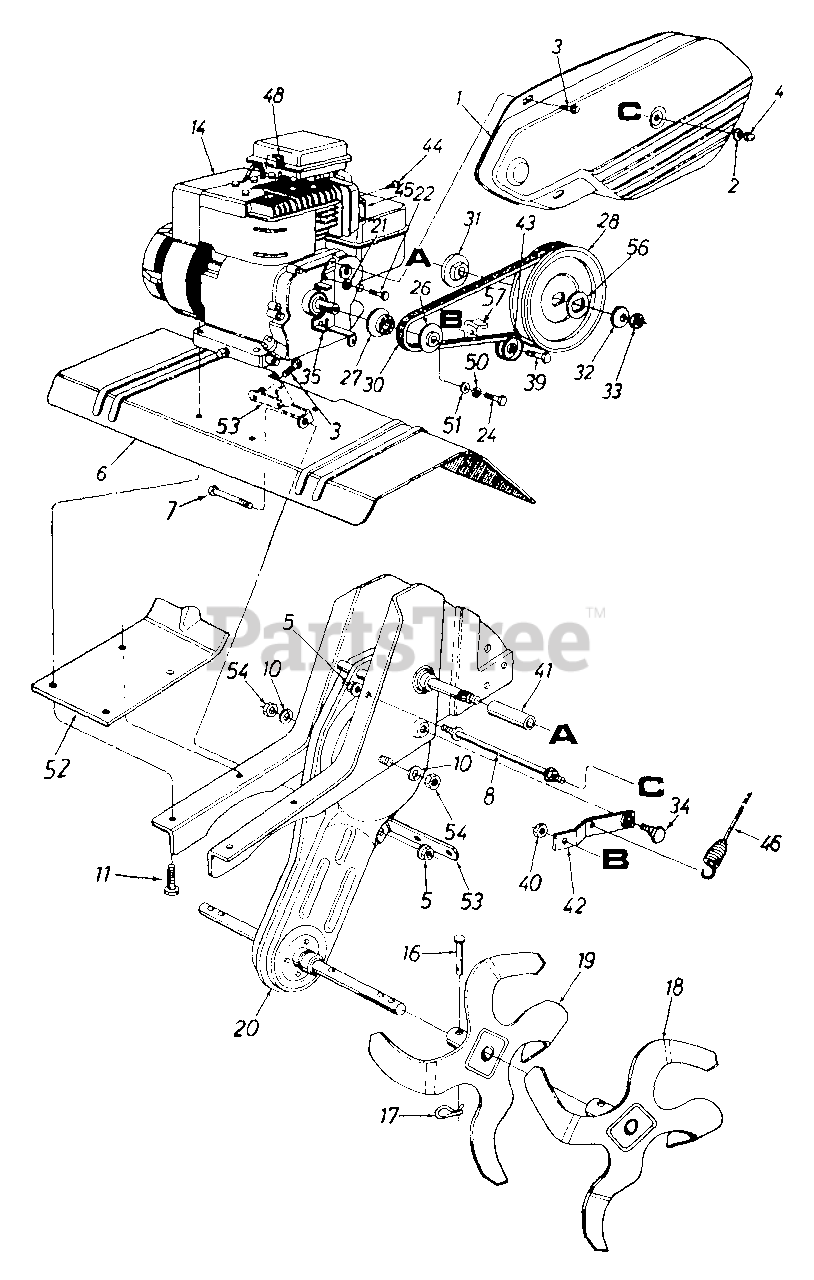

340 (216-340-100) - Cub Cadet Front-Tine Tiller (1996) Drive And Tine Assembly Parts Diagram

Front-Tine Tiller

Drive And Tine Assembly Parts Diagram

  • Title

1

Cub Cadet 786-0056

Belt Cover

Variations

Cub Cadet 786-0056-0638

COVER-BELT W/O REV - MTD/TROY-BILT RED (0638)

$92.99

$

In Stock, only 1 left!

0

Cub Cadet 786-0056-0662

COVER-BELT W/O REV - OYSTER GRAY (0662)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0498

USE 786-0056-4021 COVER-BELT - OLD CUB YELLOW (0498)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0637

COVER-BELT W/O REV - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0650

COVER-BELT W/O REV - RED METALLIC (0650)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0665

COVER-BELT W/O REV - YARDMAN GREEN (0665)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0709

COVER-BELT W/O REV - MASTERCRAFT GREEN (0709)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0721

USE 786-0056-4044 COVER-BELT - SEARS RED (0721)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-4021

COVER-BELT W/O REV - CUB YELLOW 2 (4021)

$93.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-4044

COVER-BELT W/O REV - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

Cub Cadet 786-0056-0480

W/O REV. BELT COVE - BRILLIANT GREEN (0480)

$

$

Not available

$75.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 736-3020

FI-Wash..266" I.D. x .625" O.D.

$6.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0392

Hex L-Stop Nut 1/4-28 Thd.

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-3004A

Hex Flange Top L-Nut 5/16-18 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 786-0035A

Tine Shield

Variations

Cub Cadet 786-0035A-0638

TINE SHIELD - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 786-0035A-0480

TINE SHIELD - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 786-0035A-0498

TINE SHIELD - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 786-0035A-0637

TINE SHIELD - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 786-0035A-0665

TINE SHIELD - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 786-0035A-0667

TINE SHIELD - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 786-0035A-0709

TINE SHIELD - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

7

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0919

Belt Cover Bolt

$19.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

11

Cub Cadet 710-0502A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

14

Engine

$

$

Not available

16

Cub Cadet 711-0415

Clevis Pin .375" Dia. x 1.62" Lg.

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 714-01498

Internal Cotter Pin

$

$

Currently unavailable

18

Cub Cadet 642-0005

Outer Tine Ass'y.-- L.H.
(Superseded to 642-0005-0637)

Variations

Cub Cadet 642-0005-0637

Tine Assembly, Outer LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

Cub Cadet 642-0004

Outer Tine Ass'y.-- R.H.
(Superseded to 642-0004-0637)

Note: (Not Shown)

Variations

Cub Cadet 642-0004-0637

Tine Assembly, Outer RH - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

19

Cub Cadet 642-0003

Inner Tine Ass'y.-- L.H.
(Superseded to 642-0003-0637)

Variations

Cub Cadet 642-0003-0637

Tine Assembly, Inner LH Black - POWDER BLACK (0637)

$60.99

$

In Stock, Qty 12

0

$60.99

$

In Stock, Qty 12

0

Cub Cadet 642-0002

Inner Tine Ass'y.-- R.H.
(Superseded to 642-0002-0637)

Note: (Not Shown)

Variations

Cub Cadet 642-0002-0637

Tine Assembly, Inner RH - POWDER BLACK (0637)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

In Stock, only 1 left!

0

?20

Cub Cadet 686-0091

Chain Case Ass'y. Comp.
(Superseded to 986-0091C)

Note: (Available Only as Comp. Ass'y.)

$517.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0107

Hex Bolt 5/16-24 x .5" Lg.

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

26

Cub Cadet 756-0972

Outer Engine Pulley Half

$16.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 756-0971

Inner Engine Pulley Half

$14.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 756-0585

Fl-Pulley 6" Dia.

$41.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 754-0428

"V"-Belt
(Superseded to 954-0428)

$34.99

$

In Stock, only 1 left!

0

31

Cub Cadet 748-0350

Pulley Mounting Adapter
(Superseded to 948-0350)

$21.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0112

Bell-Wash 535" I.D. x 1 5" O.D.

$9.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-3029

Hex Jam Nut 1/2-20 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 6

0

34

Cub Cadet 738-0930

Shld. Bolt 5/16-18 Thd.

$6.99

$

In Stock, only 1 left!

0

35

Cub Cadet 786-0039

Belt Cover Brkt.
(Superseded to 786-0039B-0637)

Variations

Cub Cadet 786-0039-0637

Belt Cover Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

?38

Cub Cadet 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

39

Cub Cadet 710-0723

Hex Cap Bolt 3/8-16 x 1.25" Lg.

$4.99

$

In Stock, only 3 left!

0

40

Cub Cadet 712-0266

Hex Cent Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 750-0892

Spacer .64" I.D x 2.4" Lg.
(Superseded to 950-0892)

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 786-0144

Tine Idler Brkt
(Superseded to 786-0144-0637)

Variations

Cub Cadet 786-0144-0637

BRACKET-IDLER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 756-0313

Fl-Idler

$26.99

$

In Stock, only 3 left!

0

44

Cub Cadet 710-0783

Hex Self-Tap Scr. #8-32 x 38" Lg.

$

$

Not available

45

Cub Cadet 751-0233

Muffler Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

46

Cub Cadet 746-0879

Clutch Control Cable

$

$

Not available

48

Cub Cadet 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

50

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0258

Fl-Wash 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 786-0145

Engine Plate
(Superseded to 786-0145A)

Variations

Cub Cadet 786-0145-0637

USE 786-0145A-0637 PLATE-ENGI - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 786-0053

Tine Shield Support
(Superseded to 786-0053-0637)

Variations

Cub Cadet 786-0053-0637

Tine Shield Bracket - POWDER BLACK (0637)

$10.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 712-0240

Hex Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

?55

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0312

Bearing Retainer Washer

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 786-0149

Belt Keeper

$9.99

$

Usually ships in 3-6 days

0
