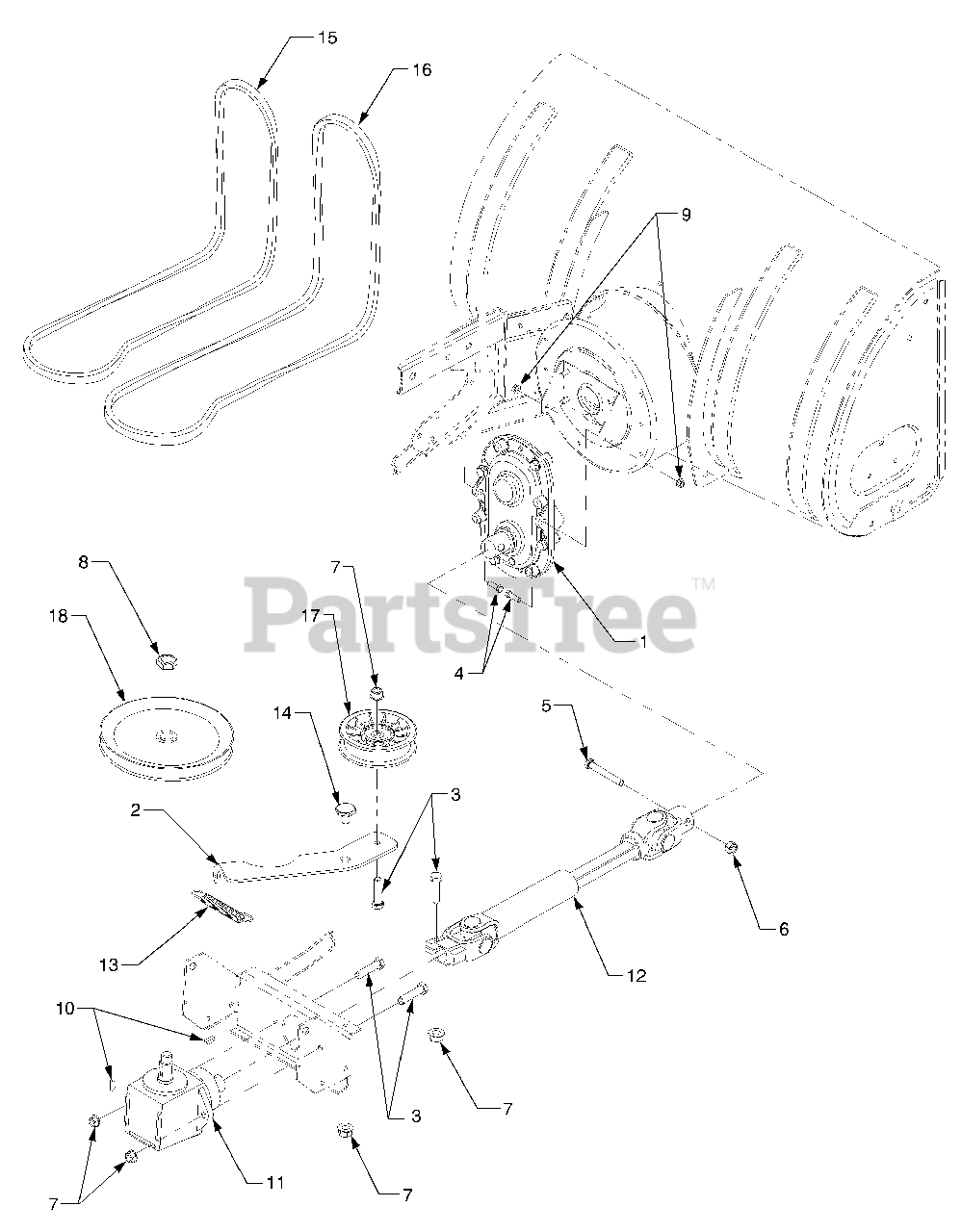

340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment Drive System Components Parts Diagram

40" Snow Thrower Attachment

Drive System Components Parts Diagram

  • Title

1

Cub Cadet 684-0143

Box Assembly, Sprocket
(Superseded to 984-0143A)

Note: Refer to Sprocket Box assembly for Components

$939.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3414-0716

Arm, Idler Pivot
(Superseded to 703-3414)

$159.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-3414-0498

Arm, Idler Pivot

Note: (Mfg. Date prior to 1G239)

$159.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

Cub Cadet 710-3015

Screw, Hex Cap 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0772

Screw, Hex Cap 5/16-24 x 2.0 GR5

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-0411

Nut, Hex, 5/16-24

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0923

Nut, Hex Center Lock, 5/8-18

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0324

Nut, Hex Nylon Insert Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

10

Cub Cadet 714-0126

Key, Hi-Pro, 3/16 x 3/4

$4.99

$

In Stock, Qty 16

0

11

Cub Cadet 717-0250

Box, Gear
(Superseded to 917-0250)

$

$

Not available

12

Cub Cadet 717-3506

Shaft, Drive

$1083.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-0429A

Spring, Extension
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0322

Bolt, Shoulder, .625 Dia. x .21
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

15

Cub Cadet 754-0441

Belt, PTO, A-Section x 76.1
(Superseded to 954-0441)

Note: For Tractors w/ Single Cylinder Engine

$53.99

$

In Stock, Qty 15

0

16

Cub Cadet 754-3075

Belt, PTO, B-Section x 78.3
(Superseded to 954-3075)

Note: For Tractors w/ Twin Cylinder Engine

$66.99

$

In Stock, only 3 left!

0

17

Cub Cadet 756-0627

Pulley, Flat Idler
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

18

Cub Cadet 756-0632

V-Pulley

$112.99

$

Usually ships in 3-6 days

0
