340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment att Sprocket Box Assembly Parts Diagram

40" Snow Thrower Attachment

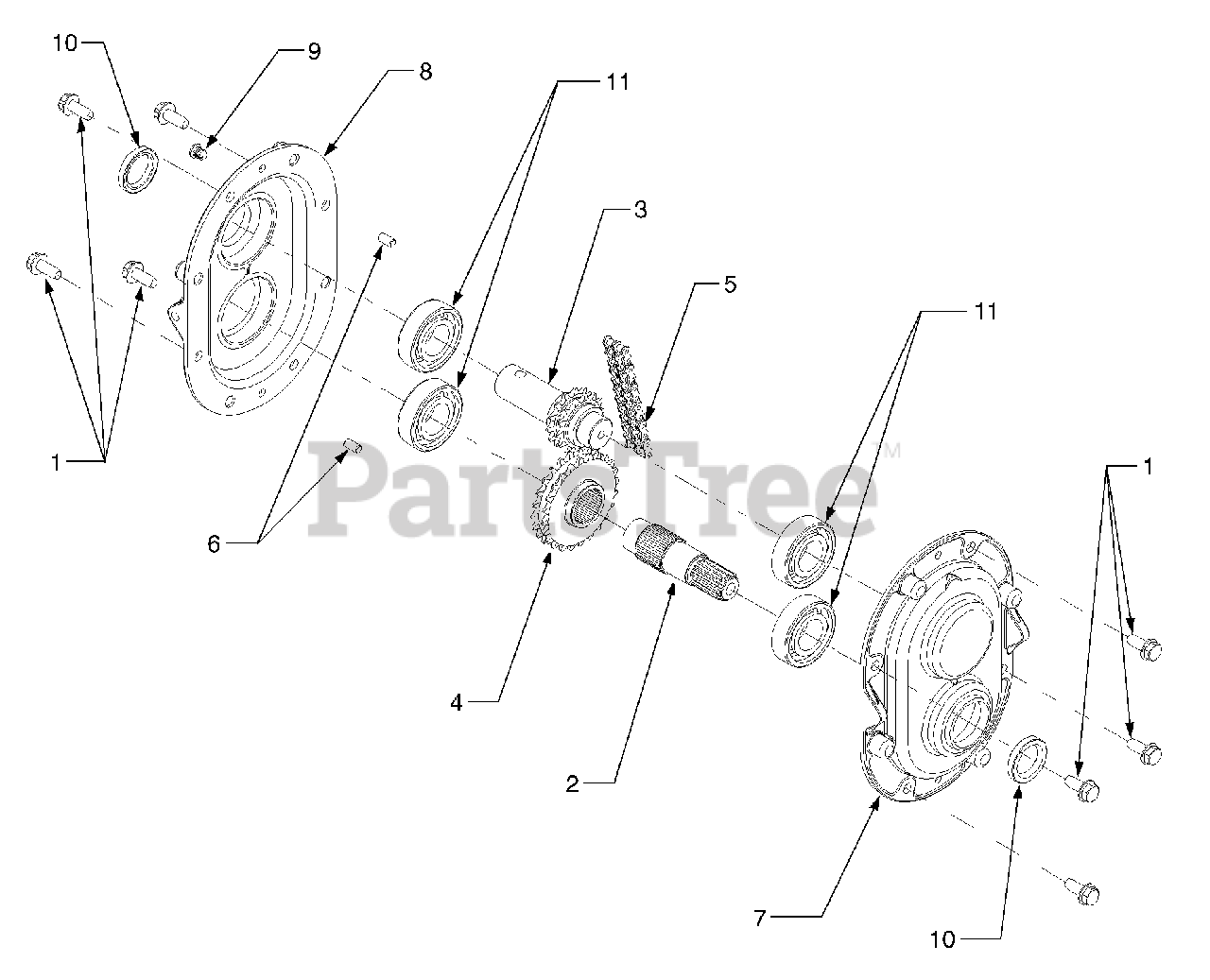

Sprocket Box Assembly Parts Diagram

  • Title

Cub Cadet 684-0143

Sprocket Box Assembly, Complete
(Superseded to 984-0143A)

$939.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-1260

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 711-1078

Shaft, Output

$154.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-1347

Shaft, Input (w/ sprocket)

$556.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 713-0451

Sprocket, Drive

$

$

Not available

5

Cub Cadet 713-0452

Chain, Endless, #35-2 x 34 Links

$58.99

$

In Stock, only 4 left!

0

6

Cub Cadet 715-0154

Dowel Pin, 1/4 x 1/2

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 719-0546

Housing, Gear

$89.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 719-0547

Housing, Gear
(Superseded to 919-0547A)

$97.99

$

In Stock, only 1 left!

0

9

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 721-0391

Seal, Oil
(Superseded to 921-0391)

$10.99

$

In Stock, Qty 12

0

11

Cub Cadet 741-0301

Bearing, Ball
(Superseded to 941-0301)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet 737-0300A

Grease, Benalene

$34.99

$

In Stock, Qty 19

0

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz. Tube

$70.99

$

Usually ships in 3-6 days

0

$

$

Not available
