340 (190-340-100) - Cub Cadet 40" Snow Thrower Attachment att Mounting Hitch/Sub Frame Parts Diagram

40" Snow Thrower Attachment

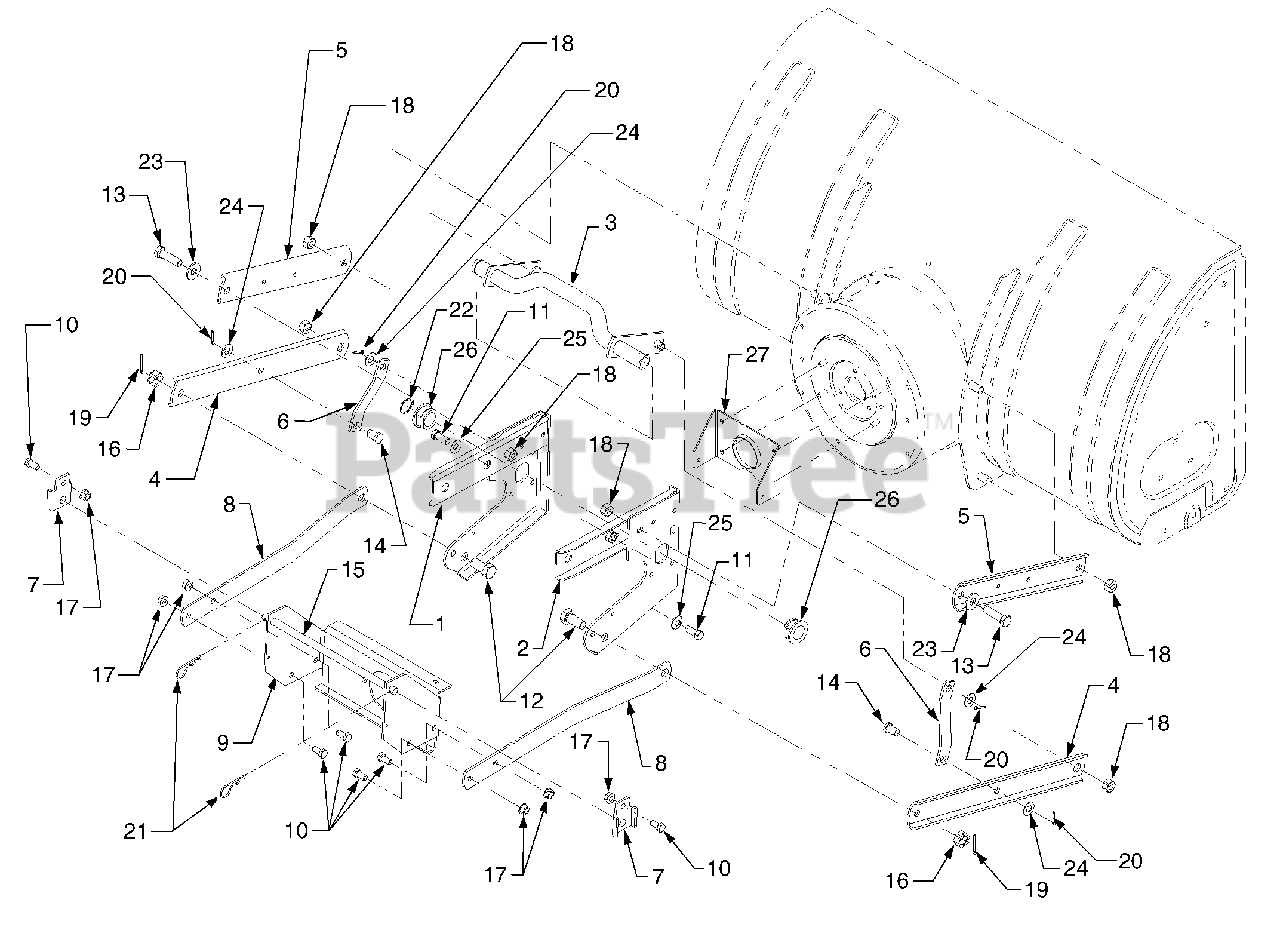

Mounting Hitch/Sub Frame Parts Diagram

  • Title

1

Cub Cadet 603-0268-0716

Hitch Plate, RH

$84.99

$

In Stock, only 1 left!

0

1

Cub Cadet 603-0268-0498

Hitch Plate, RH
(Superseded to 603-0268-0716)

Note: (MFG Date prior to 1G239)

$84.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0269-0716

Hitch Plate, LH

$92.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0269-0498

Hitch Plate, LH
(Superseded to 603-0269-0716)

Note: (MFG Date prior to 1G239)

$92.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649-3004-0716

Tube Assembly, Lift

$

$

Currently unavailable

3

Cub Cadet 649-3004-0498

Tube Assembly, Lift

Note: (MFG Date prior to 1G239)

$

$

Not available

4

Cub Cadet 703-2709-0716

Link, Lower

$

$

Not available

4

Cub Cadet 703-2709-0498

Link, Lower
(Superseded to 703-2709-0716)

Note: (MFG Date prior to 1G239)

$

$

Not available

5

Cub Cadet 703-2710-0716

Link, Upper

$20.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2710-0498

Link, Upper
(Superseded to 703-2710-0716)

Note: (MFG Date prior to 1G239)

$20.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-2726-0716

Link, Lift

$

$

Not available

6

Cub Cadet 703-2726-0498

Link, Lift

Note: (MFG Date prior to 1G239)

$

$

Not available

7

Cub Cadet 703-2737-0716

Bracket, Frame Mounting

$13.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2737-0498

Bracket, Frame Mounting
(Superseded to 703-2737-0716)

Note: (MFG Date prior to 1G239)

$13.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2739-0716

Arm, Subframe

$

$

Not available

8

Cub Cadet 703-2739-0498

Arm, Subframe
(Superseded to 703-2739-0716)

Note: (MFG Date prior to 1G239)

$

$

Not available

9

Cub Cadet 703-3413-0716

Bracket, Gearbox Mounting

$

$

Not available

9

Cub Cadet 703-3413-0498

Bracket, Gearbox Mounting

Note: (MFG Date prior to 1G239)

$

$

Not available

10

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 710-0505

Screw, Hex Cap, 7/16-14 x 1.0 GR5

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0964A

Screw, Hex Cap, 5/8-18 x 1.31 GR5

$11.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3067

Screw, Hex Cap, 1/2-13 x 1.75 GR5

$6.99

$

In Stock, only 2 left!

0

14

Cub Cadet 711-0332

Pin, Clevis, .5 x .78 Lg
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 14

0

15

Cub Cadet 711-3401

Rod, .5 x 12.5 Lg

$34.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-0386A

Nut, Hex Slotted, 5/8-18

$7.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0474

Pin, Cotter, 1/8 x .75

$4.99

$

In Stock, Qty 13

0

21

Cub Cadet 714-3020

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 716-0102

Ring, Snap, 1.0 Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0179

Washer, Flat, .531 x 1.25 x .10

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .062

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0407

Washer, Bell, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 11

0

26

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 6

0

27

Cub Cadet 784-5703-0716

Bracket, Box Mounting

$

$

Currently unavailable

27

Cub Cadet 784-5703-0498

Bracket, Box Mounting

Note: (MFG Date prior to 1G239)

$

$

Currently unavailable
