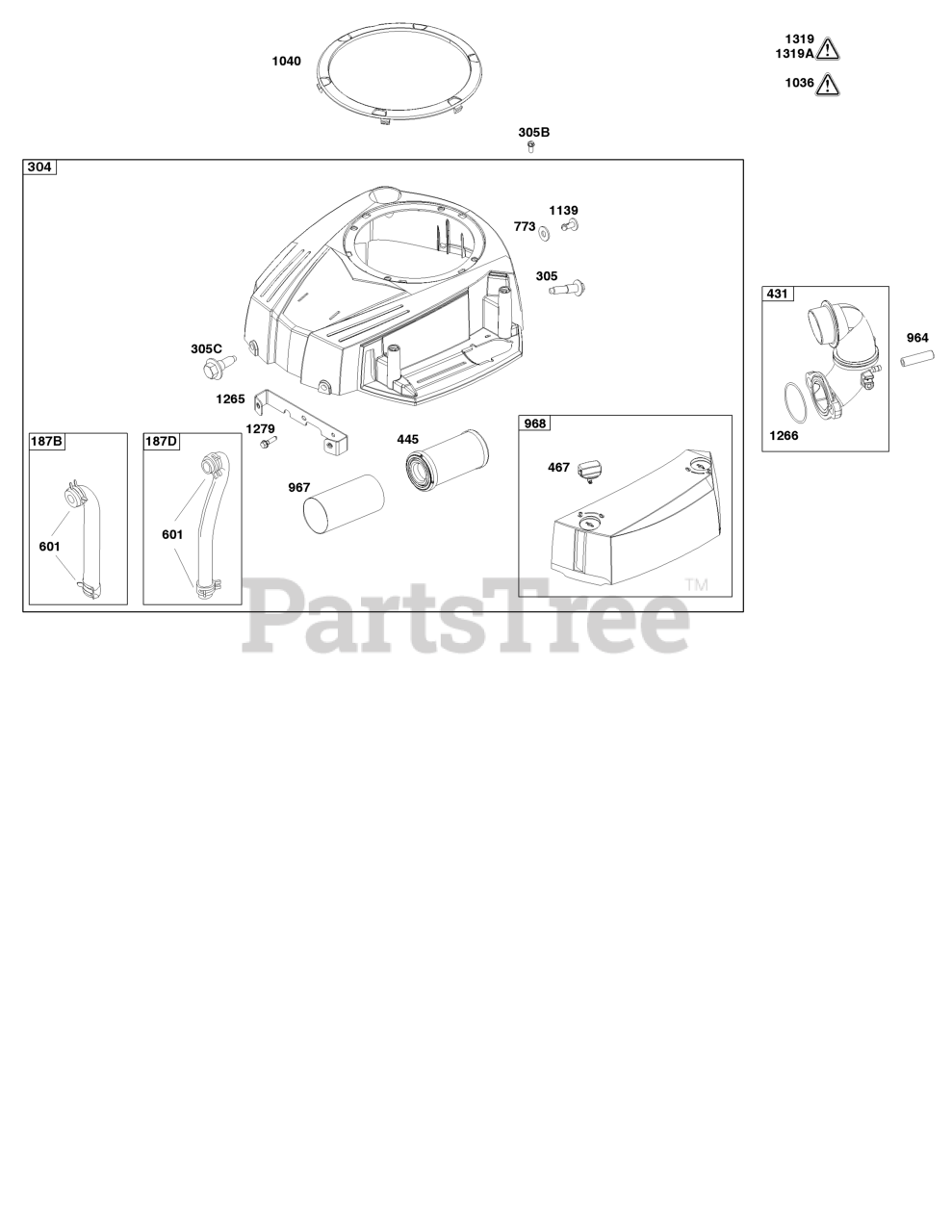

33S877-0019-G1 - Briggs & Stratton Vertical Engine Blower Housing and Air Cleaner Group Parts Diagram

Vertical Engine

Blower Housing and Air Cleaner Group Parts Diagram

  • Title

187B

LINE, Fuel

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

187D

LINE, Fuel

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

304

Briggs & Stratton 592814

HOUSING, Blower

$136.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 596718

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 2 left!

0

305B

Briggs & Stratton 795891

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, Qty 7

0

305C

Briggs & Stratton 799370

SCREW

Note: (Blower Housing)

$3.99

$

In Stock, only 4 left!

0

431

Briggs & Stratton 799043

MANIFOLD, Intake

$28.99

$

In Stock, Qty 5

0

445

Briggs & Stratton 793569

FILTER, A/C Cartridge

$19.99

$

In Stock, Qty 20+

0

467

Briggs & Stratton 597244

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 20+

0

601

CLAMP, Hose

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

773

RETAINER

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

964

Briggs & Stratton 799159

CAP, Connector

$8.49

$

In Stock, only 1 left!

0

967

Briggs & Stratton 793685

FILTER, Pre Cleaner

$4.99

$

In Stock, Qty 14

0

968

Briggs & Stratton 591648

COVER, Air Cleaner

$55.99

$

In Stock, Qty 12

0

1036

LABEL, Emissions

Note: (Available from a Briggs & Stratton Authorized Dealer)

$

$

Not available

1040

Briggs & Stratton 698368

PLATE, Trim

$14.99

$

In Stock, only 1 left!

0

1139

WASHER

Note: (Part information located in Fuel Supply Group.)

$

$

Not available

1265

Briggs & Stratton 794151

SUPPORT, Blower Housing

$10.99

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1279

Briggs & Stratton 690297

SCREW

Note: (Regulator) (Blower Housing Support)

$3.49

$

In Stock, Qty 12

0

1319

Briggs & Stratton 794467

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

Note: (REQUIRED When Replacing Parts With Warning Labels Affixed)

$18.99

$

Usually ships in 2-12 days

0
