33ABA7KSB66 (42 E) - Troy-Bilt 42" Super Bronco XP Lawn Tractor, Electric (2023) Drive Parts Diagram

42" Super Bronco XP Lawn Tractor, Electric

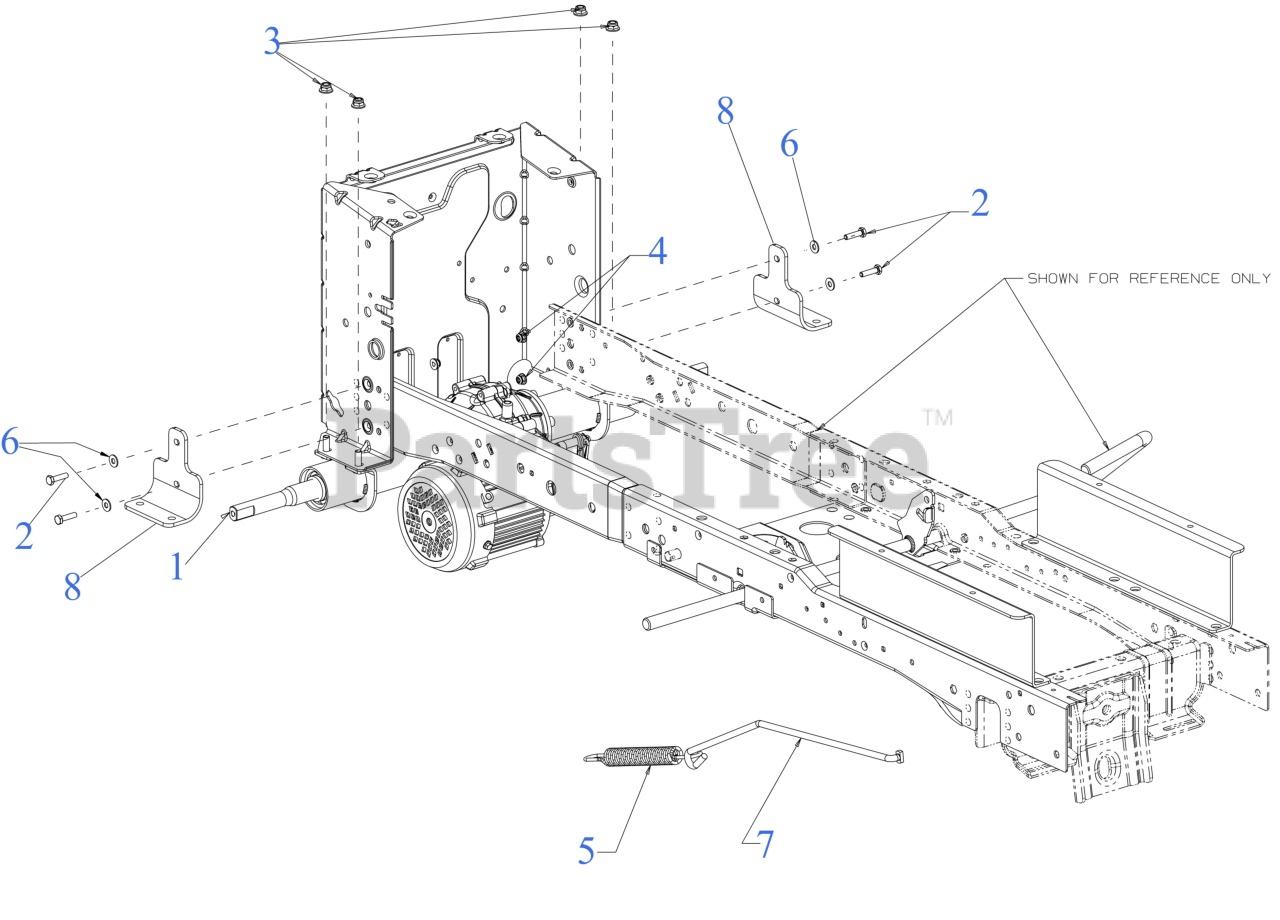

Drive Parts Diagram

  • Title
1

Troy-Bilt 618P07415A

TRANSMISSION

$875.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

3

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$12.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

7

$26.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-09720B

TRANSMISSION BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$21.99

$

Usually ships in 3-6 days

0
