33ABA7KS766 (42 E) - Troy-Bilt 42" Super Bronco XP Lawn Tractor, Electric (2023) Hood Parts Diagram

42" Super Bronco XP Lawn Tractor, Electric

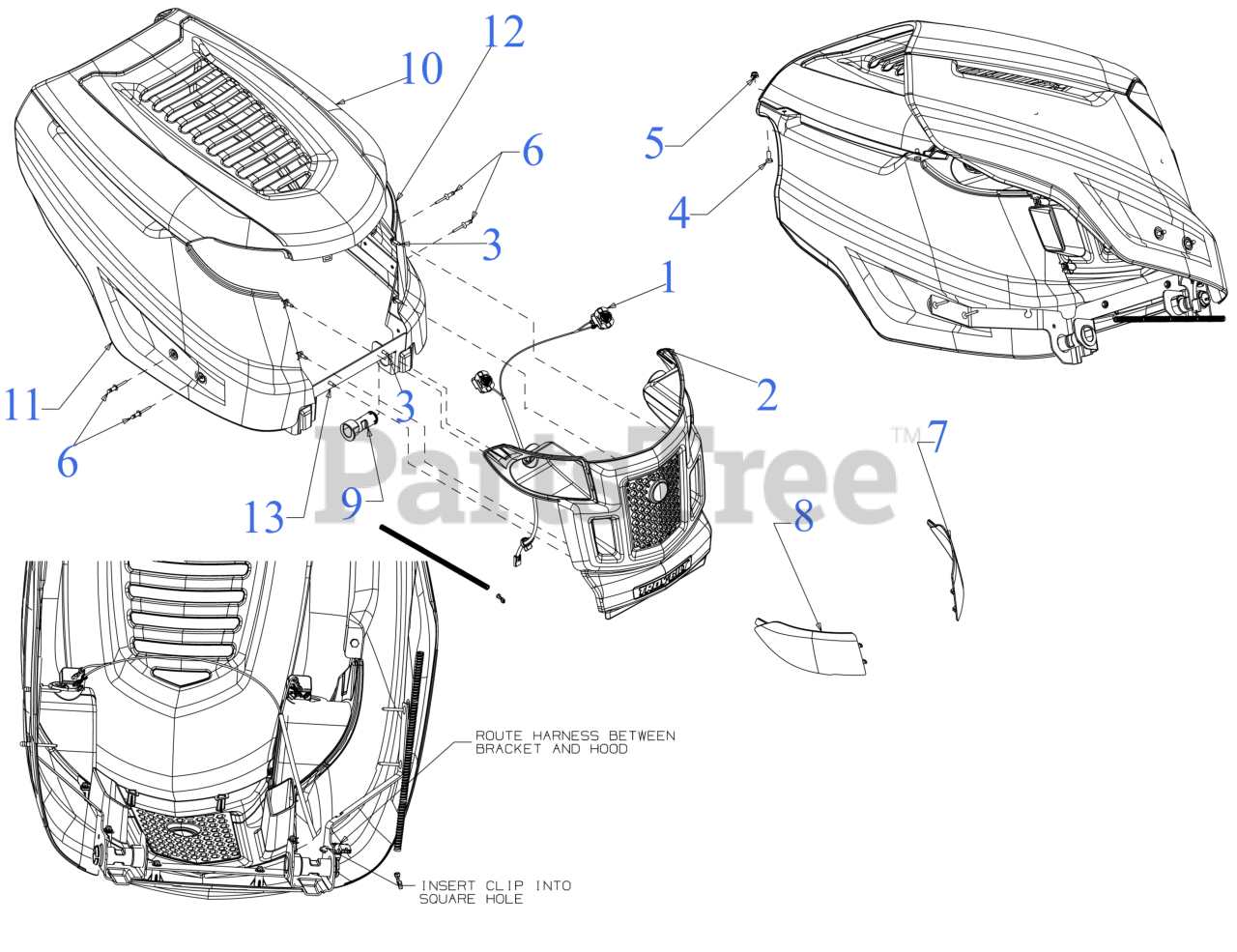

Hood Parts Diagram

  • Title

1

Troy-Bilt 625P08864

HEADLIGHT HARNESS (LED/3PIN)

$70.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 925-06095A

LED HEADLIGHT & SOCKET (150 LUMNES)

$52.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 631-04272

GRILLE ASSEMBLY (TROY-BILT)

$70.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 777D13024

LABEL-TROYBILT/GEAR

$8.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-06147

SCREW 1/4-10 x .750

Note: TORQUE TO 80-100 IN-LBS

$3.99

$

In Stock, only 2 left!

0

4

Troy-Bilt 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 728-04063

POP RIVET 6.4MM x 10MM

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-06095

LENS (LH)

$12.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 731-06096

LENS (RH)

$12.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 731-10070A

HOOD PIVOT PIN

$5.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 783-06302

HOOD (K STYLE)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 783-06302-0606

HOOD (K STYLE) (MAJESTIC ORANGE) - MAJESTIC ORANGE (0606)

$100.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-06302-0638

HOOD-TROY BILT EUR - MTD/TROY-BILT RED (0638)

$100.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-06302-0691

HOOD-TROY BILT EUR - BLACK JACK (0691)

$100.99

$

Usually ships in 3-6 days

0

$87.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-09762

SIDE PANEL (RH) (K STYLE)

Note: *CHOOSE COLOR WHEN ORDERING*

$48.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-09763

SIDE PANEL (LH) (K STYLE)

Note: *CHOOSE COLOR WHEN ORDERING*

$48.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-09764

HOOD PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$29.99

$

Usually ships in 3-6 days

0
