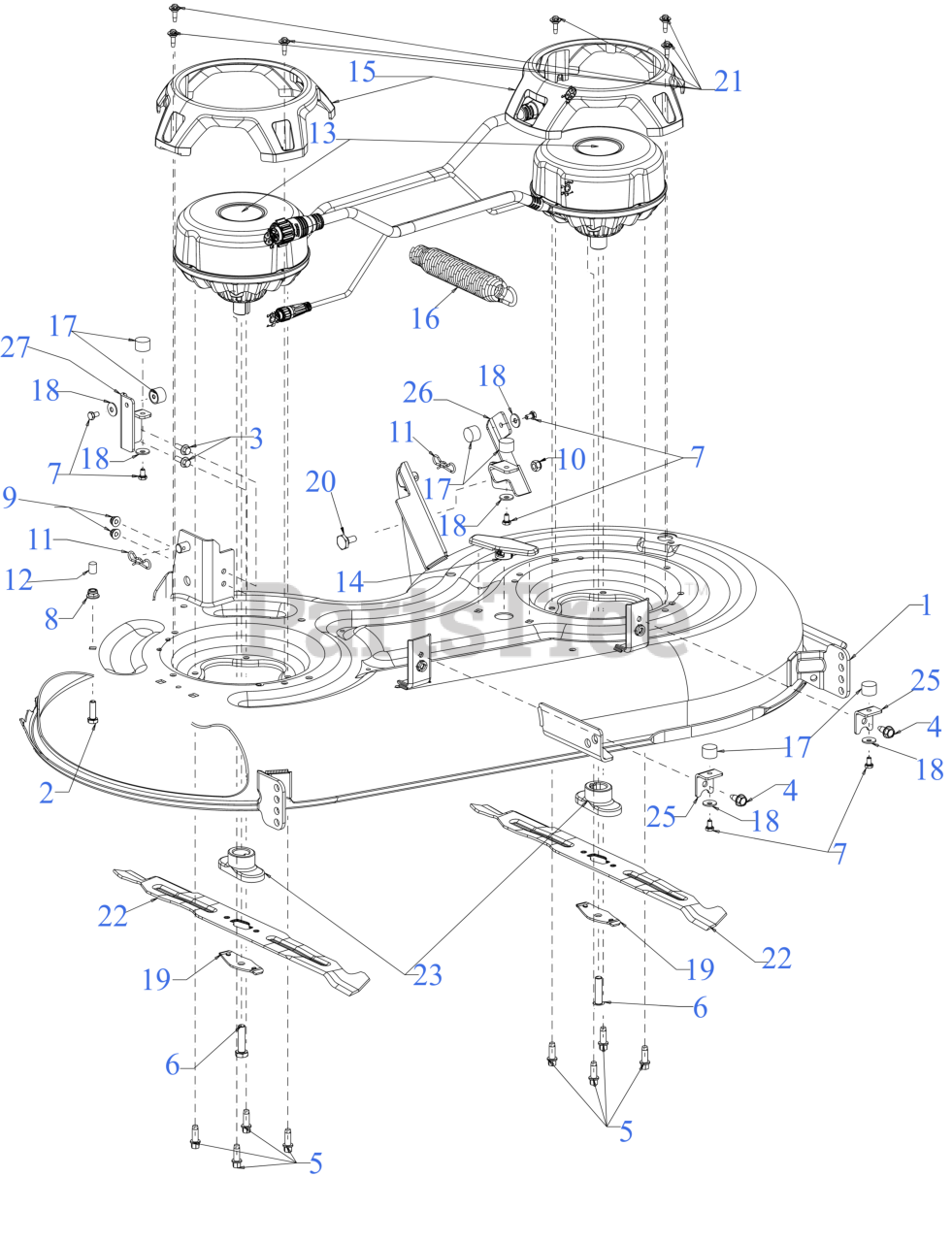

33ABA7KS766 (42 E) - Troy-Bilt 42" Super Bronco XP Lawn Tractor, Electric (2023) Deck Parts Diagram

42" Super Bronco XP Lawn Tractor, Electric

Deck Parts Diagram

  • Title

1

Troy-Bilt 683-06214A

42" DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$350.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-0376

SCREW 5/16-18 x 1.0 GR5

Note: TORQUE TO 143-174 IN-LBS

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-06256

SCREW M8-1.25 x .750

Note: TORQUE TO 115-135 IN-LBS

$3.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-06322

SCREW 5/16-18 x .875

Note: TORQUE TO 200-300 IN-LBS

$5.49

$

In Stock, Qty 6

0

6

Troy-Bilt 710-1044

SCREW 3/8-24 x 1.50 GR8

Note: TORQUE TO 450-600 IN-LBS

$3.99

$

In Stock, only 3 left!

0

7

Troy-Bilt 710-3209

SCREW M6-1.0X10MM GR8.8

Note: TORQUE TO 16-19.6 IN-LBS

$8.49

$

In Stock, Qty 13

0

8

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0411

HEX NUT

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

13

Troy-Bilt 724P05189

48V ELECTRIC DECK MOTOR

$625.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 731-26430A

DECK PLUG

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731P27644

MOTOR COVER

$33.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 732-05241A

LIFT ASSIST SPRING (SMALL)

$20.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 736-0524B-1

BLADE BELL SUPPORT

$5.99

$

In Stock, Qty 5

0

20

Troy-Bilt 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 6

0

21

Troy-Bilt 738-05090

SHOULDER SCREW M6-1 .368 X.115

Note: TORQUE TO 75-90 IN-LBS

$3.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 742P05720

21.18" MULCH BLADE (S SHAPE CENTER HOLE)

$34.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 748-06644

BLADE ADAPTER (#6 X 1.19 W/S)

$11.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 783-09774

UPSTOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 783-10048

UPSTOP BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$18.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 783-10049

UPSTOP BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0
