339 XP - Husqvarna Chainsaw (SN: 20034000001 - 20040100000) FUEL TANK & HANDLE Parts Diagram

Chainsaw

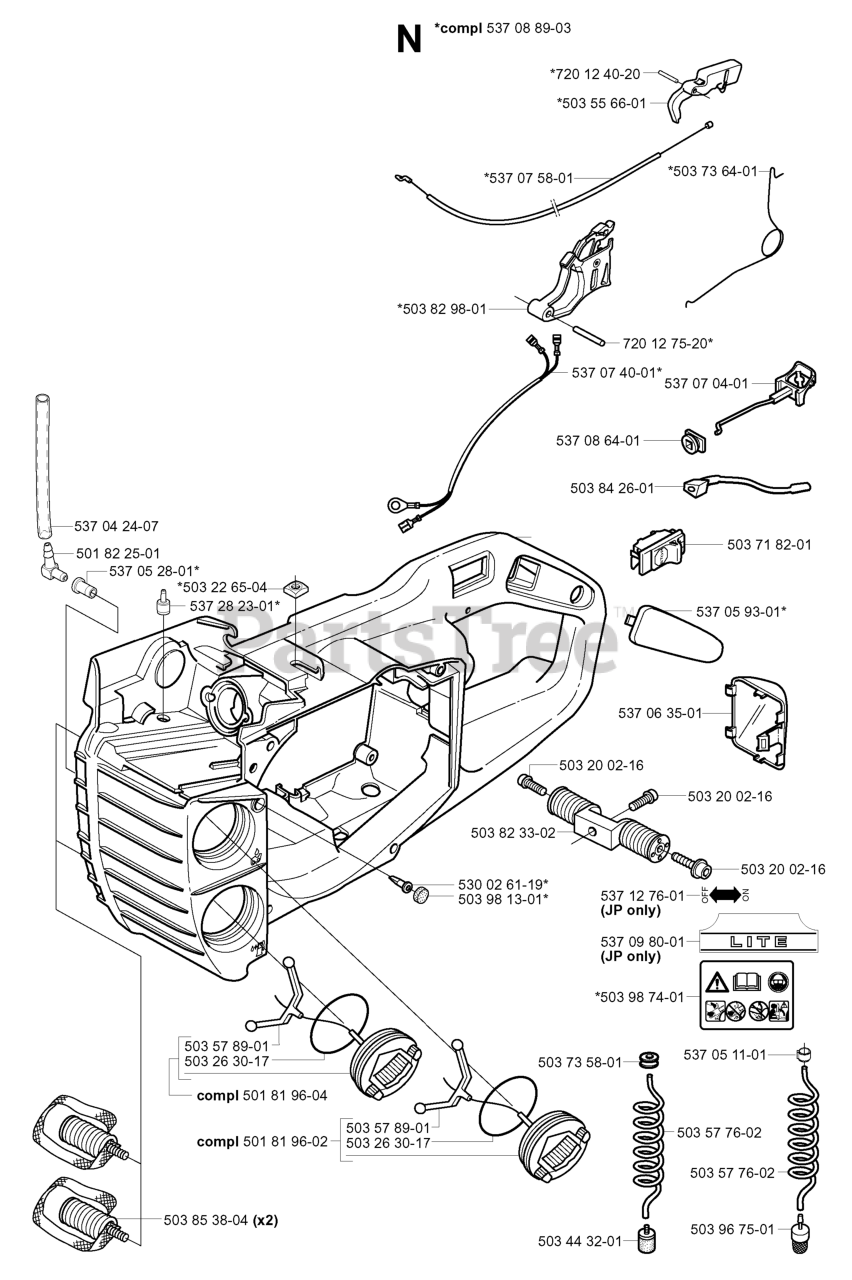

FUEL TANK & HANDLE Parts Diagram

  • Title

501 81 96-04

Husqvarna 501819604

TANK CAP
(Superseded to 537215204)

$11.99

$

In Stock, only 1 left!

0

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

503 98 74-01

Husqvarna 503987401

DECAL

$9.99

$

In Stock, only 2 left!

0

537 05 11-01

Husqvarna 537051101

CLAMP
(Superseded to 537184901)

$7.49

$

In Stock, Qty 20+

0

537 28 23-01

Husqvarna 537282301

AIR CONDUCTOR / BREATHER
(Superseded to 537359501)

$17.99

$

In Stock, Qty 6

0

503 84 26-01

Husqvarna 503842601

HOSE

$11.99

$

Usually ships in 3-10 days

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 6

0

501 82 25-01

Husqvarna 501822501

FUEL INLET-FITTING

$

$

Not available

503 71 82-01

Husqvarna 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 8

0

503 57 89-01

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

537 07 58-01

Husqvarna 537075801

THROTTLE WIRE
(Superseded to 537075802)

$31.99

$

Usually ships in 3-10 days

0

503 73 58-01

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

503 73 64-01

Husqvarna 503736401

SPRING

$6.99

$

In Stock, only 1 left!

0

537 07 04-01

Husqvarna 537070401

CHOKE CONTROL

$10.99

$

Usually ships in 3-10 days

0

503 57 76-02

Husqvarna 503577602

HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

720 12 75-20

Husqvarna 720127520

PIN

$3.34

$

Usually ships in 3-10 days

0

537 06 35-01

Husqvarna 537063501

SPARK PLUG COVER
(Superseded to 537063502)

$9.49

$

Usually ships in 3-10 days

0

503 55 66-01

Husqvarna 503556601

THROTTLE CATCH

$7.99

$

Usually ships in 3-10 days

0

503 20 02-16

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

503 98 13-01

Husqvarna 503981301

PLUG

$6.99

$

In Stock, only 1 left!

0

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

537 04 24-07

Husqvarna 537042407

HOSE

$5.99

$

Usually ships in 3-10 days

0

503 96 75-01

Husqvarna 503967501

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

537 05 28-01

Husqvarna 537052801

SLEEVE

$

$

Not available

537 07 40-01

Husqvarna 537074001

CABLE ASSY

$29.06

$

Usually ships in 3-10 days

0

503 22 65-04

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 13

0

537 12 76-01

Husqvarna 537127601

DECAL

Note: JP ONLY

$3.49

$

Usually ships in 3-10 days

0

503 26 30-17

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 18

0

537 05 93-01

Husqvarna 537059301

INSERT

$

$

Not available

503 82 98-01

Husqvarna 503829801

THROTTLE TRIGGER

$11.99

$

Usually ships in 3-10 days

0

537 09 80-01

Husqvarna 537098001

DECAL
(Superseded to 537378101)

Note: JP ONLY

$4.99

$

Usually ships in 3-10 days

0

503 82 33-02

Husqvarna 503823302

VIBRATION ABSORBER

$22.99

$

Usually ships in 3-10 days

0

503 85 38-04

Husqvarna 503853804

ANTI-VIBE ELEMENT

$20.99

$

Usually ships in 3-10 days

0

537 08 89-03

Husqvarna 537088903

TANK
(Superseded to 537088907)

$

$

Not available

537 08 64-01

Husqvarna 537086401

GROMMET

$5.99

$

In Stock, only 1 left!

0

530 02 61-19

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0
