339 XP - Husqvarna Chainsaw (2010-02) Chain Brake Parts Diagram

Chainsaw

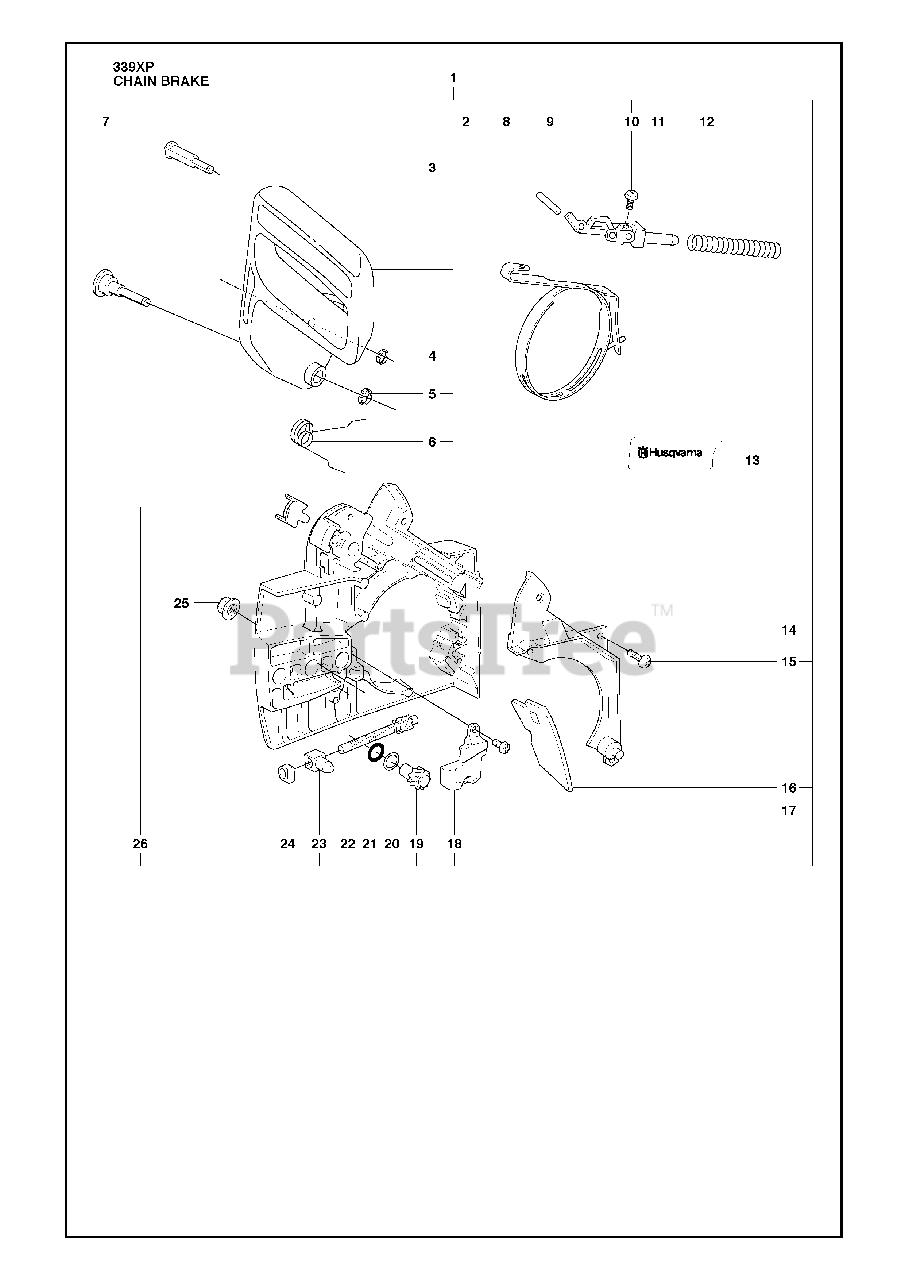

Chain Brake Parts Diagram

  • Title

1

Husqvarna 544005504

CHAIN BRAKE ASSY

$96.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537099001

HAND GUARD

$27.68

$

Usually ships in 3-10 days

0

3

Husqvarna 503854601

PIN

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 735311020

C-WASHER

$3.99

$

In Stock, Qty 9

0

6

Husqvarna 537092802

POSITION SPRING

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 503817101

SHAFT PIVOT

$17.99

$

In Stock, only 1 left!

0

8

Husqvarna 503809703

BRAKE BAND ASSY

$10.99

$

In Stock, only 1 left!

0

9

Husqvarna 720123300

PIN 3X10

$3.49

$

In Stock, only 4 left!

0

10

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 17

0

11

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 503908301

SPRING
(Superseded to 505892601)

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 537429501

LABEL

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna 503805201

COVER

$11.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 17

0

16

Husqvarna 503855101

PROTECTOR

$6.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 17

0

18

Husqvarna 537396901

COVER

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537079402

WORM WHEEL

$13.99

$

In Stock, only 2 left!

0

20

Husqvarna 503230063

WASHER

$6.49

$

In Stock, only 3 left!

0

21

Husqvarna 740480702

O-RING

$7.49

$

In Stock, only 4 left!

0

22

Husqvarna 537397001

SCREW

$18.99

$

In Stock, Qty 6

0

23

Husqvarna 501454102

PAWL
(Superseded to 588850301)

$5.99

$

In Stock, only 3 left!

0

24

Husqvarna 537017401

SLEEVE

$6.49

$

In Stock, only 1 left!

0

25

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 503862001

GUIDE

$5.99

$

Usually ships in 3-10 days

0
