339 XP - Husqvarna Chainsaw (2006-09) Tank/Rear Handle Parts Diagram

Chainsaw

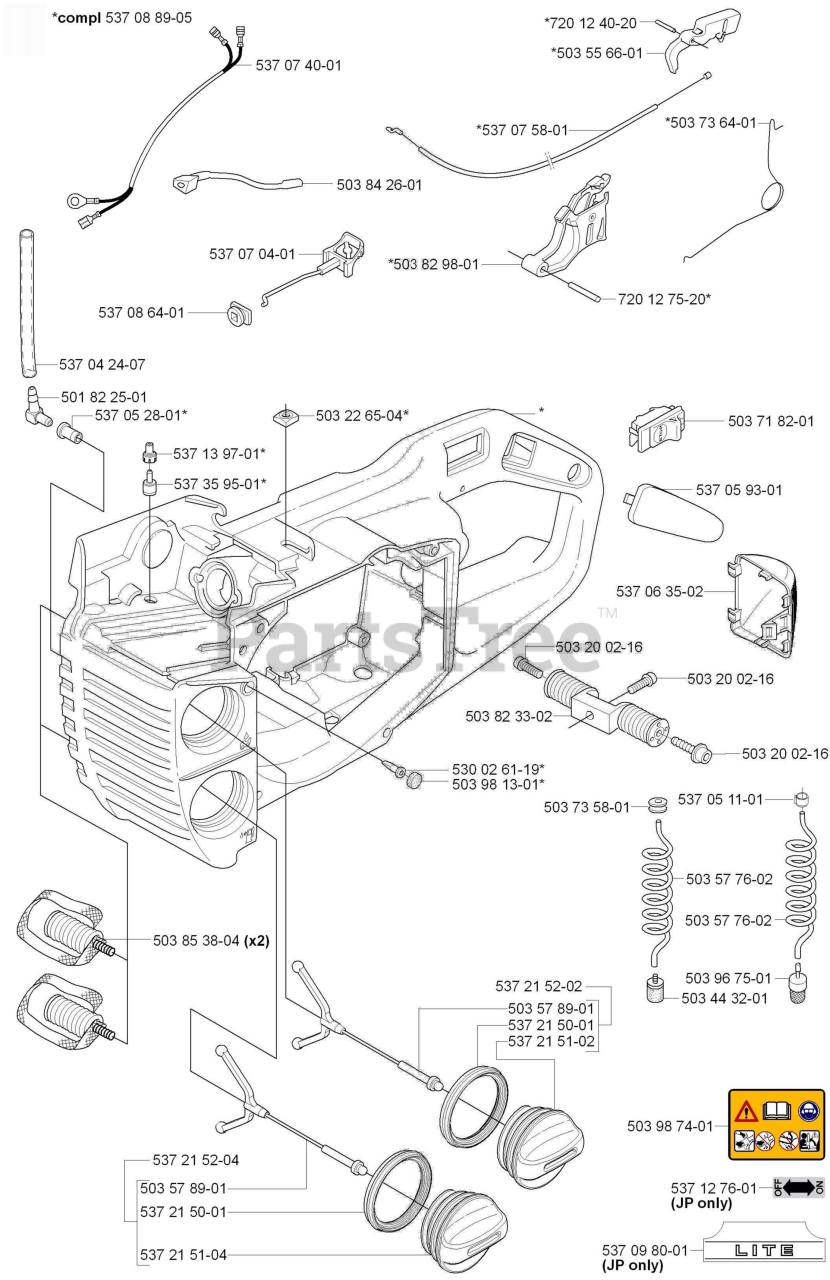

Tank/Rear Handle Parts Diagram

  • Title

501822501

Husqvarna 501822501

FUEL INLET-FITTING

$

$

Not available

503200216

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

503226504

Husqvarna 503226504

NUT

$6.49

$

In Stock, Qty 8

0

503443201

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

503556601

Husqvarna 503556601

THROTTLE CATCH

$7.99

$

Usually ships in 3-10 days

0

503577602

Husqvarna 503577602

HOSE
(Superseded to 591375201)

$5.99

$

In Stock, Qty 20+

0

503578901

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

503718201

Husqvarna 503718201

START/STOP SWITCH

$13.99

$

In Stock, Qty 5

0

503735801

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

$7.99

$

In Stock, Qty 20+

0

503736401

Husqvarna 503736401

SPRING

$6.99

$

In Stock, only 3 left!

0

503823302

Husqvarna 503823302

VIBRATION ABSORBER

$22.99

$

Usually ships in 3-10 days

0

503829801

Husqvarna 503829801

THROTTLE TRIGGER

$11.99

$

Usually ships in 3-10 days

0

503842601

Husqvarna 503842601

HOSE

$11.99

$

Usually ships in 3-10 days

0

503853804

Husqvarna 503853804

ANTI-VIBE ELEMENT

$20.99

$

Usually ships in 3-10 days

0

503967501

Husqvarna 503967501

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

503981301

Husqvarna 503981301

PLUG

$6.99

$

Usually ships in 3-10 days

0

503987401

Husqvarna 503987401

DECAL

$9.99

$

In Stock, only 2 left!

0

530026119

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, only 4 left!

0

537042407

Husqvarna 537042407

HOSE

$5.99

$

Usually ships in 3-10 days

0

537051101

Husqvarna 537051101

CLAMP
(Superseded to 537184901)

$7.49

$

In Stock, Qty 18

0

537052801

Husqvarna 537052801

SLEEVE

$

$

Not available

537059301

Husqvarna 537059301

INSERT

$

$

Not available

537063502

Husqvarna 537063502

SPARK PLUG COVER

$9.49

$

Usually ships in 3-10 days

0

537070401

Husqvarna 537070401

CHOKE CONTROL

$10.99

$

Usually ships in 3-10 days

0

537074001

Husqvarna 537074001

CABLE ASSY

$29.06

$

Usually ships in 3-10 days

0

537075801

Husqvarna 537075801

THROTTLE WIRE
(Superseded to 537075802)

$31.99

$

Usually ships in 3-10 days

0

537086401

Husqvarna 537086401

GROMMET

$5.99

$

Usually ships in 3-10 days

0

537088905

Husqvarna 537088905

RP TANK
(Superseded to 537088907)

$

$

Not available

537098001

Husqvarna 537098001

DECAL
(Superseded to 537378101)

$4.99

$

Usually ships in 3-10 days

0

537127601

Husqvarna 537127601

Decal

$3.49

$

Usually ships in 3-10 days

0

537139701

Husqvarna 537139701

CAP

$3.49

$

In Stock, Qty 6

0

537215001

Husqvarna 537215001

SEALING

$8.99

$

In Stock, only 2 left!

0

537215102

Husqvarna 537215102

COVER
(Superseded to 537215207)

$11.99

$

In Stock, Qty 10

0

537215104

Husqvarna 537215104

RP TANK CAP CPL
(Superseded to 537215204)

$11.99

$

In Stock, only 1 left!

0

537215202

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 10

0

537215204

Husqvarna 537215204

TANK CAP LIGHT GRAY

$11.99

$

In Stock, only 1 left!

0

537359501

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

$17.99

$

In Stock, Qty 5

0

720124020

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

720127520

Husqvarna 720127520

PIN

$3.34

$

Usually ships in 3-10 days

0
