3381 E94 - Electrolux/AYP Lawn Tractor (1999) ENGINE/BRIGGS AND STRATTON Parts Diagram

Lawn Tractor

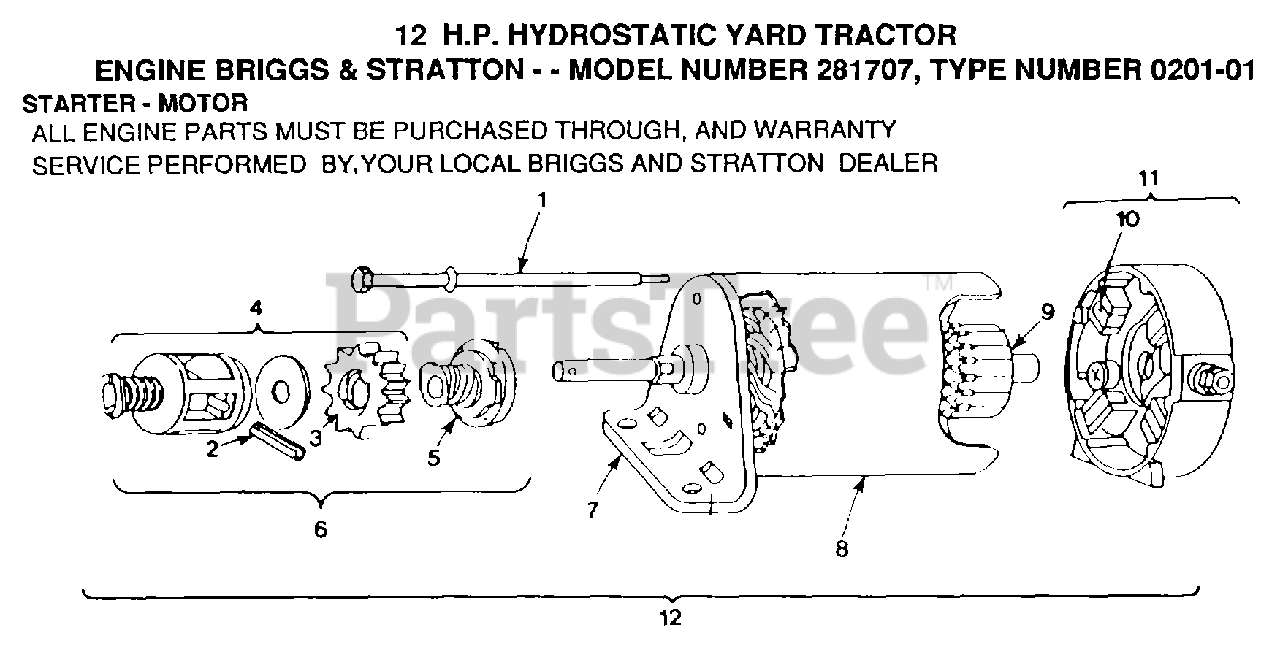

ENGINE/BRIGGS AND STRATTON Parts Diagram

  • Title
1

Briggs & Stratton 94004

BOLT
(Superseded to 691263)

$

$

Not available

2

Briggs & Stratton 94288

ROLL PIN
(Superseded to 691641)

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 490467

PINION SPRING KIT
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

5

Briggs & Stratton 398003

CLUTCH ASSEMBLY
(Superseded to 692024)

$21.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 490421

STARTER DRIVE GROUP
(Superseded to 696540)

$29.99

$

In Stock, Qty 18

0

7

Briggs & Stratton 394857

DRIVE END CAP ASSY

$56.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 394544

HOUSING ASSY
(Superseded to 494205)

$73.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 391160

ARMATURE ASSY

$

$

Not available

10

Briggs & Stratton 395538

BRUSH ASSEMBLY

$24.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 395537

END CAP ASS'Y. COMMUTATOR

$54.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 490420

MOTOR & DRIVE ASY
(Superseded to 795121)

$143.99

$

In Stock, Qty 20+

0
