338 XPT - Husqvarna Chainsaw (SN: 20060100001 - 20063600000) CYLINDER PISTON Parts Diagram

Chainsaw

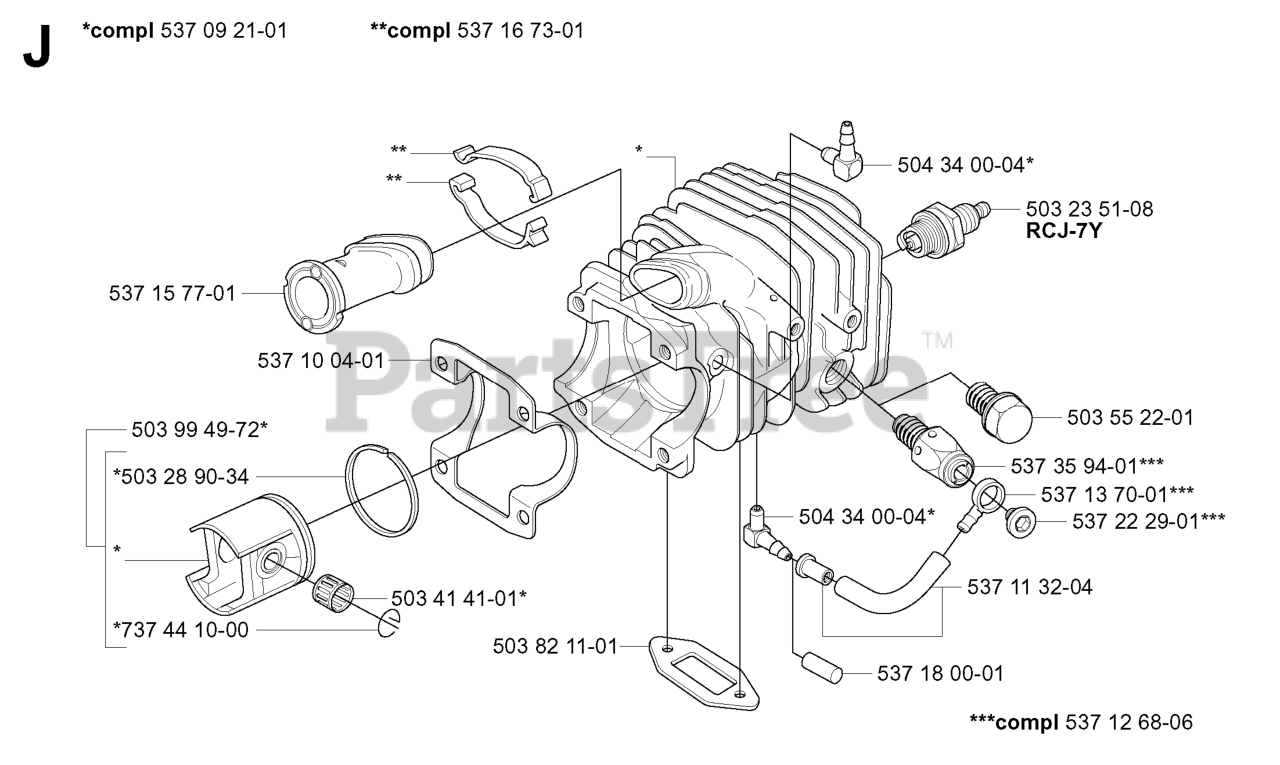

CYLINDER PISTON Parts Diagram

  • Title

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

503 99 49-72

Husqvarna 503994972

PISTON

$87.69

$

Usually ships in 3-10 days

0

537 11 32-04

Husqvarna 537113204

HOSE

$27.99

$

Usually ships in 3-10 days

0

537 22 29-01

Husqvarna 537222901

SCREW

$3.49

$

Usually ships in 3-10 days

0

537 15 77-01

Husqvarna 537157701

PIPE

$22.99

$

Usually ships in 3-10 days

0

504 34 00-04

Husqvarna 504340004

NIPPLE

$

$

Not available

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ-7Y

$3.49

$

In Stock, Qty 20+

0

537 18 00-01

Husqvarna 537180001

PROTECTIVE CAP

$7.49

$

Usually ships in 3-10 days

0

537 09 21-01

Husqvarna 537092101

CYLINDER

$205.99

$

Usually ships in 3-10 days

0

537 16 73-01

Husqvarna 537167301

CLAMP

$5.99

$

Usually ships in 3-10 days

0

537 35 94-01

Husqvarna 537359401

DECOMPRESSION VALVE

$36.92

$

Usually ships in 3-10 days

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 1 left!

0

537 13 70-01

Husqvarna 537137001

NIPPLE

$6.99

$

Usually ships in 3-10 days

0

537 10 04-01

Husqvarna 537100401

GASKET

$11.99

$

In Stock, only 1 left!

0

503 28 90-34

Husqvarna 503289034

PISTON RING

$17.99

$

Usually ships in 3-10 days

0

537 12 68-06

Husqvarna 537126806

VALVE DECOMPR

$68.99

$

Usually ships in 3-10 days

0

503 82 11-01

Husqvarna 503821101

GASKET

$5.99

$

In Stock, only 2 left!

0
