338 XPT - Husqvarna Chainsaw (SN: 20031800001 - 20034400000) CYLINDER PISTON Parts Diagram

Chainsaw

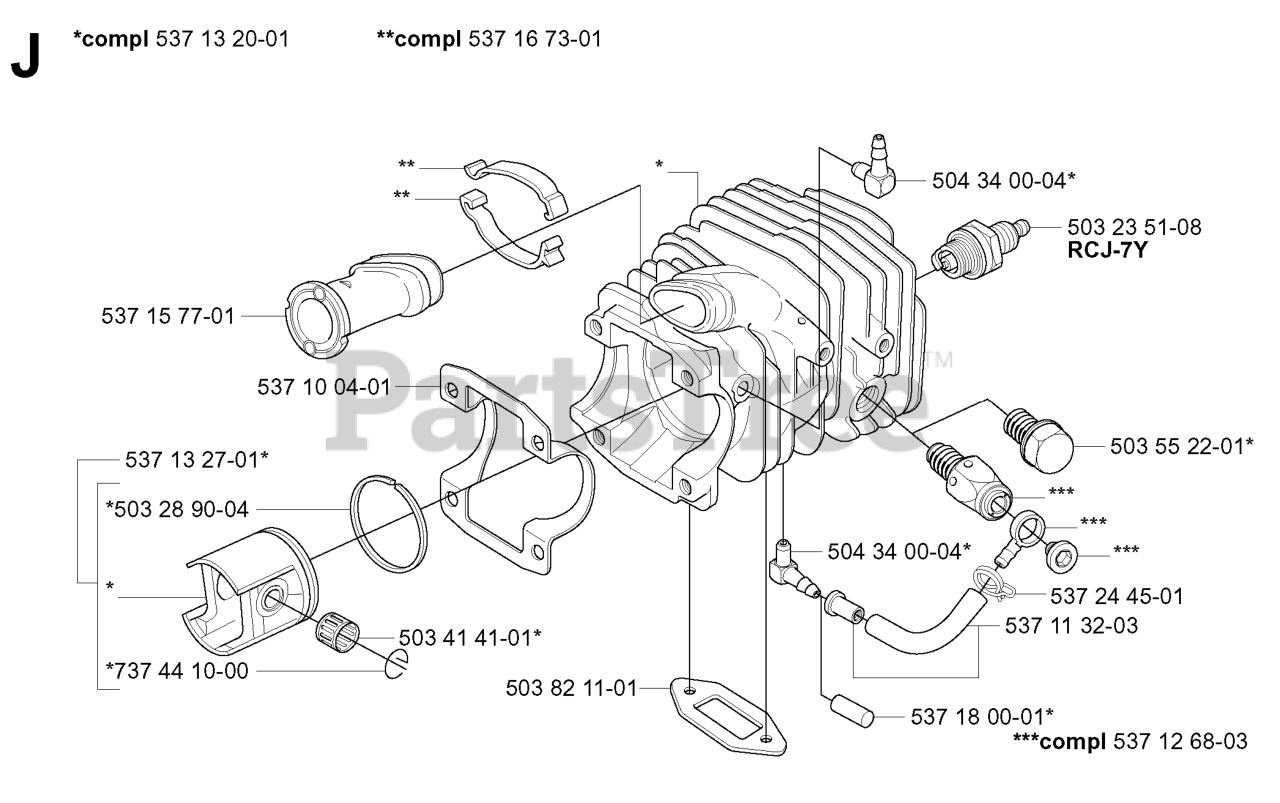

CYLINDER PISTON Parts Diagram

  • Title

503 28 90-04

Husqvarna 503289004

RING
(Superseded to 537400001)

$17.99

$

In Stock, only 1 left!

0

504 34 00-04

Husqvarna 504340004

NIPPLE

$

$

Not available

537 15 77-01

Husqvarna 537157701

PIPE

$22.99

$

Usually ships in 3-10 days

0

537 11 32-03

Husqvarna 537113203

HOSE ASSY
(Superseded to 537427803)

$

$

Not available

537 12 68-03

Husqvarna 537126803

DECOMPRESSION VALVE ASSY
(Superseded to 537126805)

$36.99

$

In Stock, only 2 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ-7Y

$3.49

$

In Stock, Qty 20+

0

537 13 20-01

Husqvarna 537132001

CYLINDER

$250.99

$

In Stock, Qty 11

0

537 18 00-01

Husqvarna 537180001

PROTECTIVE CAP

$7.49

$

Usually ships in 3-10 days

0

537 10 04-01

Husqvarna 537100401

GASKET

$11.99

$

In Stock, only 1 left!

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

503 82 11-01

Husqvarna 503821101

GASKET

$5.99

$

In Stock, only 2 left!

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 2 left!

0

537 16 73-01

Husqvarna 537167301

CLAMP

$5.99

$

Usually ships in 3-10 days

0

537 13 27-01

Husqvarna 537132701

PISTON

$125.99

$

Usually ships in 3-10 days

0

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

537 24 45-01

Husqvarna 537244501

HOSE CLIP

$

$

Not available
