338 XPT - Husqvarna Chainsaw (2006-09) Crankcase Parts Diagram

Chainsaw

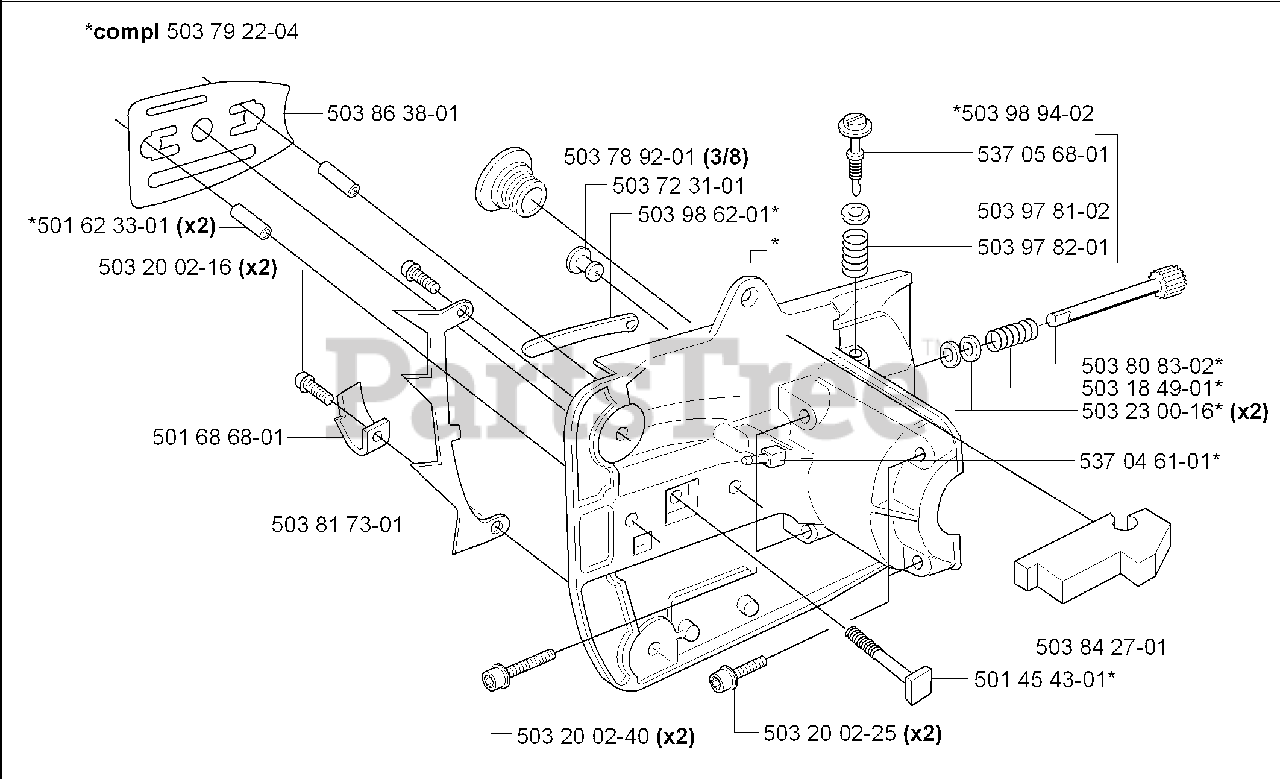

Crankcase Parts Diagram

  • Title

501454301

Husqvarna 501454301

BOLT

$7.49

$

In Stock, only 2 left!

0

501623301

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$4.99

$

Usually ships in 3-10 days

0

501686801

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

Usually ships in 3-10 days

0

503184901

Husqvarna 503184901

SPRING

$4.99

$

In Stock, only 2 left!

0

503200216

Husqvarna 503200216

SCREW

$4.99

$

In Stock, Qty 20+

0

503200225

Husqvarna 503200225

SCREW

$4.99

$

In Stock, Qty 7

0

503200240

Husqvarna 503200240

SCREW

$6.49

$

In Stock, only 2 left!

0

503230016

Husqvarna 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

503723101

Husqvarna 503723101

BUSHING

$5.99

$

In Stock, only 4 left!

0

503789201

Husqvarna 503789201

PINION

$6.99

$

In Stock, Qty 5

0

503792204

Husqvarna 503792204

CRANKCASE
(Superseded to 503792206)

$79.99

$

Usually ships in 3-10 days

0

503808302

Husqvarna 503808302

%PUMP PISTON
(Superseded to 503808303)

$20.99

$

Usually ships in 3-10 days

0

503817301

Husqvarna 503817301

FELLING DOG

$9.49

$

Usually ships in 3-10 days

0

503842701

Husqvarna 503842701

FOAM INSULATOR

$4.99

$

In Stock, Qty 20+

0

503863801

Husqvarna 503863801

PLATE
(Superseded to 544339901)

$17.99

$

Usually ships in 3-10 days

0

503978102

Husqvarna 503978102

WASHER

$3.49

$

Usually ships in 3-10 days

0

503978201

Husqvarna 503978201

SPRING

$4.99

$

In Stock, only 1 left!

0

503986201

Husqvarna 503986201

GASKET

$4.99

$

In Stock, only 2 left!

0

503989402

Husqvarna 503989402

KIT

$6.99

$

In Stock, only 1 left!

0

537046101

Husqvarna 537046101

NIPPLE

$20.99

$

Usually ships in 3-10 days

0

537056801

Husqvarna 537056801

SCREW

$4.99

$

Usually ships in 3-10 days

0
