337 (190-337-100) - Cub Cadet 32" Mower Deck att Spindles, Pulleys & Blades Parts Diagram

32" Mower Deck

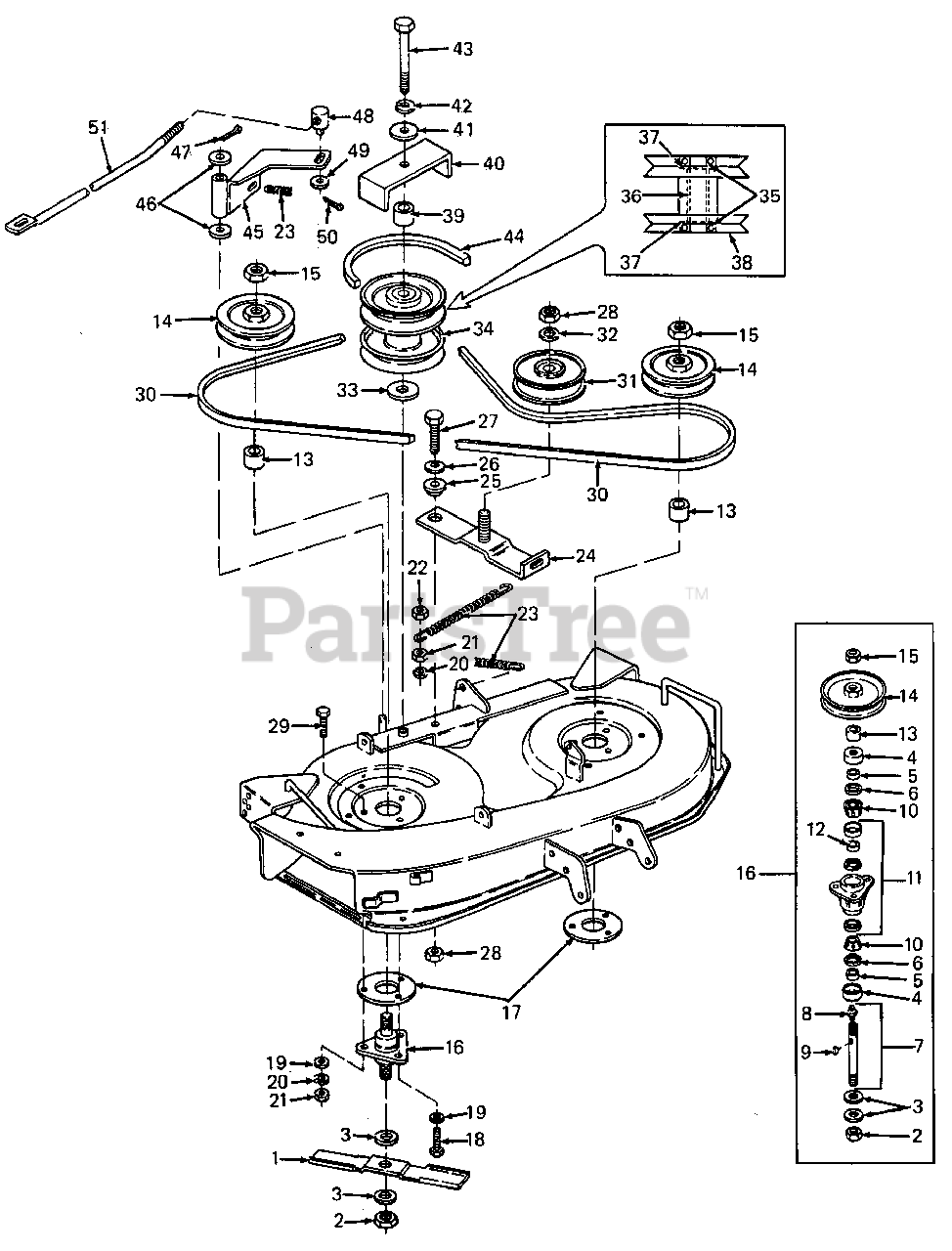

Spindles, Pulleys & Blades Parts Diagram

  • Title

1

Cub Cadet 742-3016

Blade, Low Lift, 16.28 Lg
(Superseded to 759-3822)

$31.99

$

In Stock, only 2 left!

0

Cub Cadet 742-3011

Blade, Bagging, 16.28 Lg
(Superseded to 759-3819)

Variations

Cub Cadet 742-3011-0637

Mower Blade, 16.28" Lg - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 759-3397

Blade, Hard Coated Bagging, 16.28 Lg
(Superseded to 759-3833)

$

$

Not available

2

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

3

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk HDN

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 703-1387

Cup, Spindle HDN
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

5

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

7

Cub Cadet 759-3369

Kit, Spindle w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, only 3 left!

0

8

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

11

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$

$

Not available

12

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

13

Cub Cadet 711-3267

Spacer, .75 X 1.38 X .56 Lg

$

$

Not available

14

Cub Cadet 756-3008

4L V-Pulley, 4.62 OD X .75 ID

$53.99

$

In Stock, Qty 6

0

15

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 7

0

16

Cub Cadet 759-3413

Spindle Service Kit

Note: (Includes Mounting Hardware)

$

$

Not available

17

Cub Cadet 703-1650

Plate, Spindle Mounting

$

$

Not available

18

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0258

Washer, Flat, .378 X 1.0 X .127 Thk

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3017

Nut, Hex, 3/8-16 GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

23

Cub Cadet 732-0384

Spring, Extension, .62 OD X 6.12 Lg
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

24

Cub Cadet 703-1416

Bracket, Idler
(Superseded to 703-1416A-0716)

$

$

Not available

25

Cub Cadet 711-3272

Spacer, Shoulder
(Superseded to 911-3272A)

$14.99

$

In Stock, only 4 left!

0

26

Cub Cadet 736-0213

Washer, Bell

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 710-3179

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

29

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 10

0

30

Cub Cadet 754-3026A

V-Belt, 1/2 X 60 Lg, A Full
(Superseded to 954-3026A)

$45.99

$

In Stock, only 4 left!

0

31

Cub Cadet 756-3005

Pulley, Flat Idler, 3.88 OD

$45.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0267

Washer, Flat, .385 X .88 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0290

Washer, Flat, .63 X 1.0 X .06 Thk HDN

$6.99

$

In Stock, Qty 20+

0

34

Cub Cadet 703-1622

Pulley Assy, Double
(Superseded to 759-3650)

Note: [Order 759-3650 which includes Ref No. 35 (Qty 2), 36, 37 (Qty 2) & 38]

$271.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 741-0155

Bearing, Ball, .62 ID X 1.38 OD X .44 Thk
(Superseded to 941-0155)

Note: (Used in 703-1622 Pulley Assy)

$23.99

$

In Stock, Qty 15

0

Cub Cadet 741-0524

Bearing, Ball, .62 ID X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

Note: (Used in 759-3650 Pulley Assy)

$23.99

$

In Stock, Qty 20+

0

36

Cub Cadet 750-3043

Spacer, Pulley, .64 ID X .81 OD X 2.25 Lg

Note: (Used in 703-1622 Pulley Assy)

$

$

Not available

Cub Cadet 750-3070

Spacer, Pulley, .64 ID X .88 OD X 2.15 Lg

Note: (Used in 759-3650 Pulley Assy)

$15.99

$

In Stock, only 1 left!

0

37

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

Note: (Used in 759-3650 Pulley Assy)

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 756-3050

Pulley, Double

Note: (Used in 759-3650 Pulley Assy)

$127.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 750-0118

Spacer, .632 X .875 X .90 Lg
(Superseded to 950-0118)

$

$

Not available

40

Cub Cadet 703-1687

Guard, Belt

Variations

Cub Cadet 703-1687-0498

BELT GUARD - OLD CUB YELLOW (0498)

$

$

Not available

$

$

41

Cub Cadet 736-3064

Washer, Flat, .656 X 1.312 X .075 Thk
(Superseded to 936-3064)

$

$

Not available

42

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

43

Cub Cadet 710-3152

Bolt, Hex, 5/8-18 X 5.0 Lg GR5

$

$

Not available

44

Cub Cadet 754-3038

V-Belt, PTO Drive
(Superseded to 954-3038)

$32.99

$

In Stock, only 3 left!

0

45

Cub Cadet 703-1688

Arm, Brake

Variations

Cub Cadet 703-1688-0499

BRAKE ARM (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

$

$

46

Cub Cadet 736-3004

Washer, Flat, .406 X .875 X .105 Thk

$4.99

$

In Stock, Qty 6

0

47

Cub Cadet 714-0144

Pin, Cotter, 1/8 Dia X 1.0 Lg

$

$

Not available

48

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

49

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

51

Cub Cadet 747-3135

Rod, Deck Brake

$59.99

$

In Stock, only 1 left!

0
