3364-14 - Electrolux/AYP Lawn Tractor (1991) TRANSAXLE Parts Diagram

Lawn Tractor

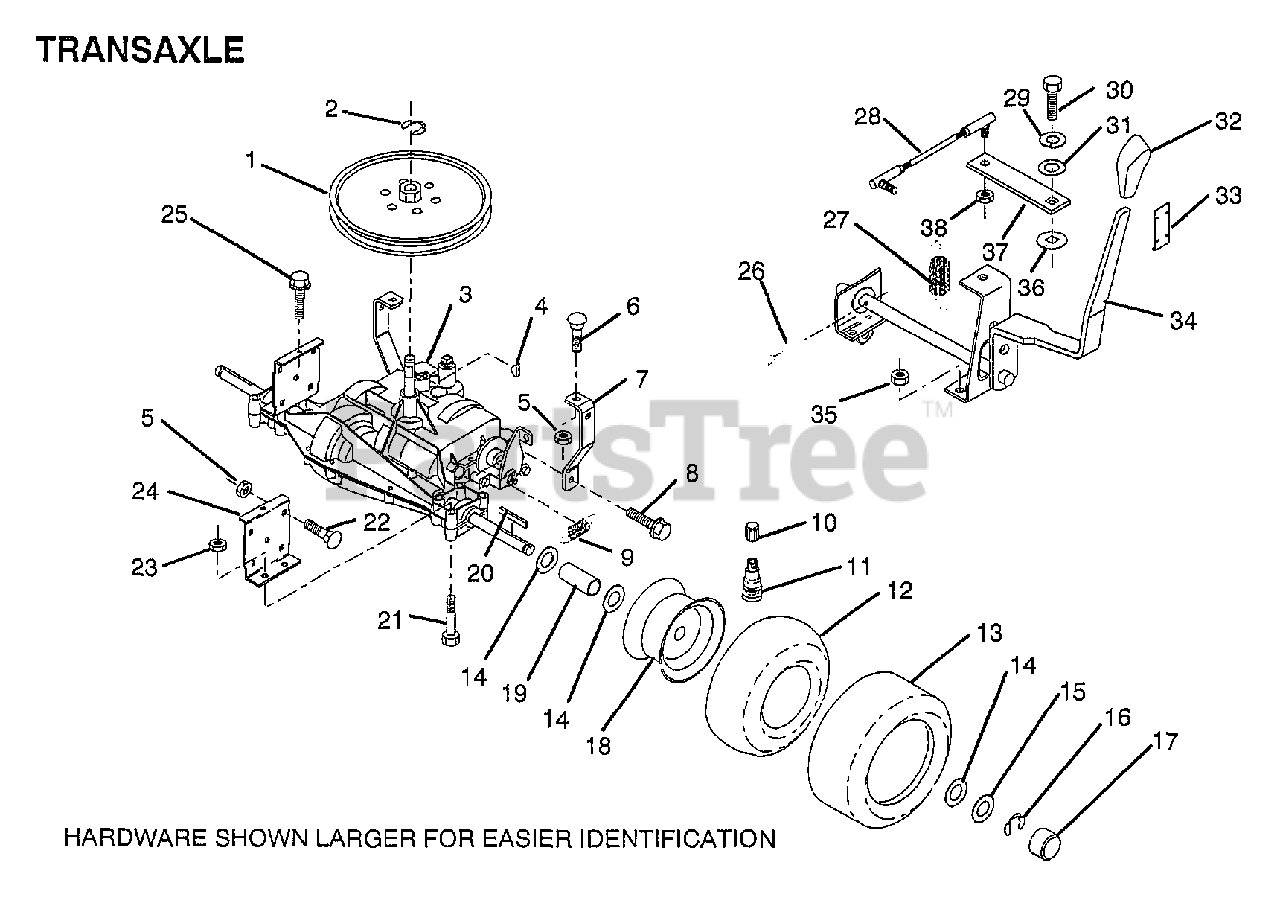

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 123385X

PULLEY
(Superseded to 532123385)

$45.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

3

$

$

Not available

4

Murray 2228M

SUB= 2228M1

$

$

Not available

5

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 123378X

"STRAP,TORQUE"
(Superseded to 532123378)

$

$

Not available

8

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

9

$

$

Not available

10

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

11

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 8134H

TUBE.16X6.5/7.5-8
(Superseded to 532008134)

$66.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 123411X

TIRE.16X7.5-8
(Superseded to 532123411)

$109.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

19

Electrolux/AYP 123409X

SPACER
(Superseded to 532123409)

$

$

Not available

20

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 123377X

"BRKT,TRANSAXLE"
(Superseded to 532123377)

$

$

Not available

25

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 123393X

EXT SPRING
(Superseded to 532123393)

$

$

Not available

28

Electrolux/AYP 123632X

"LINK,SHIFT"
(Superseded to 532123632)

$

$

Not available

29

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

31

Electrolux/AYP 19091210

WASHER LT
(Superseded to 819091210)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 122011X

"KNOB,SHT CONTROL"
(Superseded to 532122011)

$

$

Not available

33

Electrolux/AYP 123692X

KNOB RETAINER
(Superseded to 532123692)

$

$

Not available

34

Electrolux/AYP 125976X

SHIFT HANDLE ASSY
(Superseded to 532125976)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 123539X

"ARM,SHIFT"
(Superseded to 532123539)

$

$

Not available

38

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0
