336 - Husqvarna Chainsaw (SN: 20034000001 - 20040100000) CYLINDER PISTON Parts Diagram

Chainsaw

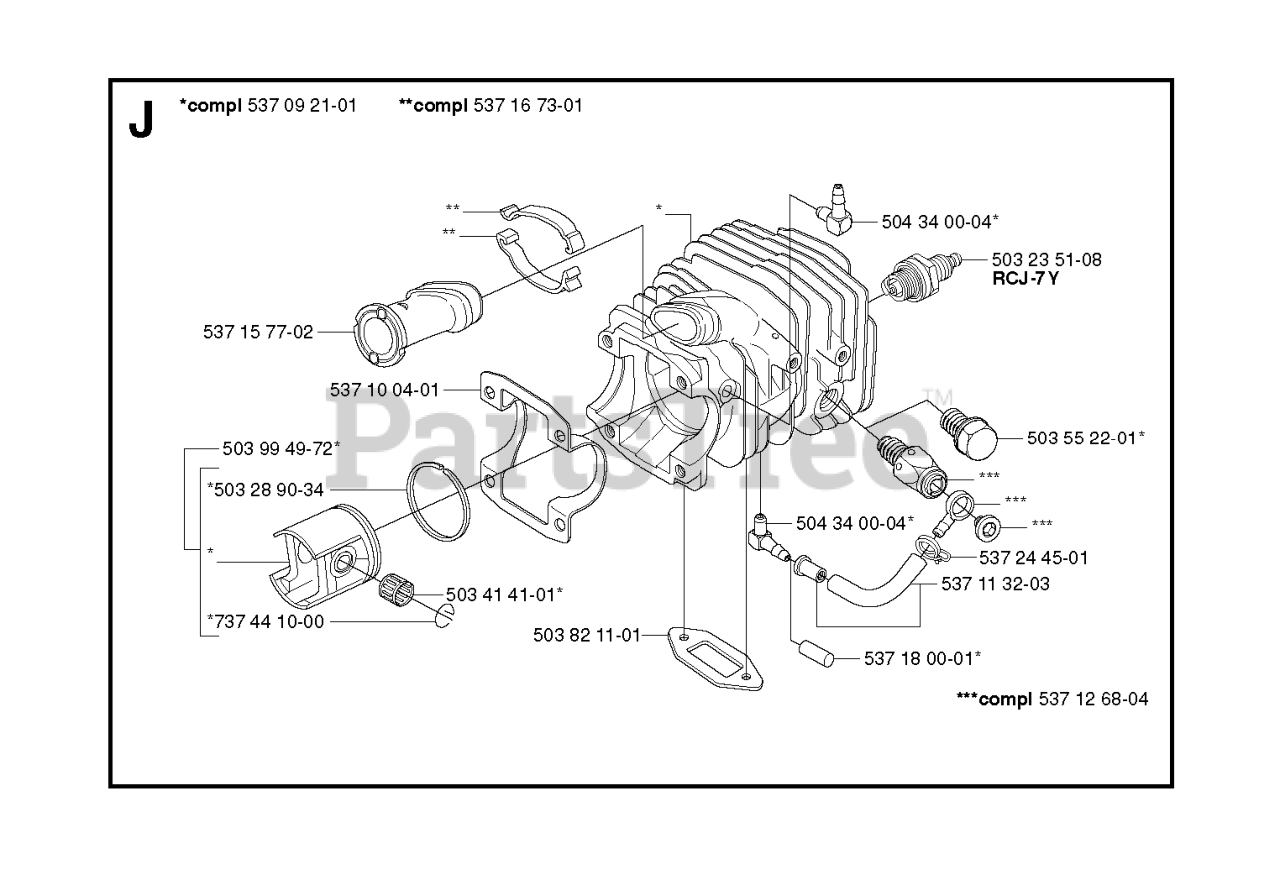

CYLINDER PISTON Parts Diagram

  • Title

503 99 49-72

Husqvarna 503994972

PISTON

$87.69

$

Usually ships in 3-10 days

0

537 18 00-01

Husqvarna 537180001

PROTECTIVE CAP

$7.49

$

Usually ships in 3-10 days

0

537 10 04-01

Husqvarna 537100401

GASKET

$11.99

$

In Stock, only 1 left!

0

537 15 77-02

Husqvarna 537157702

PIPE

$16.14

$

Usually ships in 3-10 days

0

537 16 73-01

Husqvarna 537167301

CLAMP

$5.99

$

Usually ships in 3-10 days

0

537 12-68-04

Husqvarna 537126804

VALVE
(Superseded to 537126806)

$68.99

$

Usually ships in 3-10 days

0

503 28 90-34

Husqvarna 503289034

PISTON RING

$17.99

$

Usually ships in 3-10 days

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

503 55 22-01

Husqvarna 503552201

CYLINDER PLUG

$13.99

$

In Stock, only 1 left!

0

503 82 11-01

Husqvarna 503821101

GASKET

$5.99

$

In Stock, only 2 left!

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ-7Y

$3.49

$

In Stock, Qty 20+

0

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

504 34 00-04

Husqvarna 504340004

NIPPLE

$

$

Not available

537 24 45-01

Husqvarna 537244501

HOSE CLIP

$

$

Not available

537 09 21-01

Husqvarna 537092101

CYLINDER

$205.99

$

Usually ships in 3-10 days

0

537 11 32-03

Husqvarna 537113203

HOSE ASSY
(Superseded to 537427803)

$

$

Not available
