336 (190-336-100) - Cub Cadet 46" Mower Deck Assembly for Garden Tractor att Spindles, Blades & Pulleys Parts Diagram

46" Mower Deck Assembly for Garden Tractor

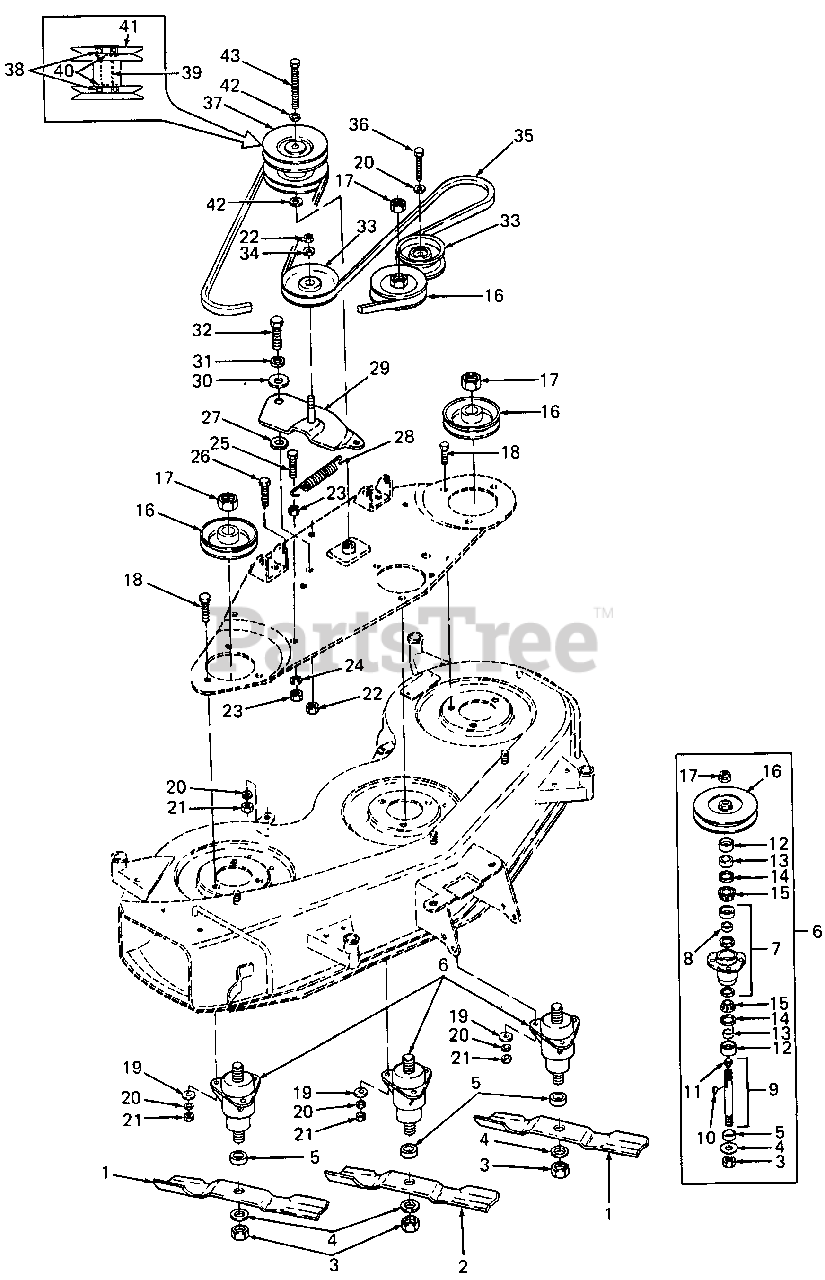

Spindles, Blades & Pulleys Parts Diagram

  • Title

1

Cub Cadet 742-3016

Blade, Low Lift, 16.28 Lg
(Superseded to 759-3822)

$31.99

$

In Stock, only 2 left!

0

Cub Cadet 742-3011

Blade, Bagging, 16.28 Lg
(Superseded to 759-3819)

Variations

Cub Cadet 742-3011-0637

Mower Blade, 16.28" Lg - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 759-3397

Blade, Hard Coated Bagging, 16.28 Lg
(Superseded to 759-3833)

$

$

Not available

2

Cub Cadet 742-3015

Blade, Low Lift, 14.88 Lg
(Superseded to 759-3821)

$32.99

$

In Stock, only 1 left!

0

Cub Cadet 742-3010

Blade, Bagging, 14.88 Lg
(Superseded to 759-3818)

Variations

Cub Cadet 742-3010-0637

Mower Blade, 14.88" - POWDER BLACK (0637)

$27.99

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 3 left!

0

Cub Cadet 759-3398

Blade, Hard Coated Bagging, 14.88 Lg
(Superseded to 759-3834)

$80.99

$

In Stock, only 1 left!

0

3

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.99

$

In Stock, Qty 6

0

4

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 Thk

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 748-3020

Spacer, Blade
(Superseded to 948-3020)

$17.99

$

In Stock, only 2 left!

0

6

Cub Cadet 759-3294

Spindle Service Kit
(Superseded to 759-3294P)

Note: (Includes Mounting Hardware)

$365.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$

$

Not available

8

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$12.99

$

In Stock, only 3 left!

0

9

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, only 3 left!

0

10

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 HDN

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 703-1387

Cup, Spindle HDN
(Superseded to 903-1387)

$24.99

$

In Stock, Qty 11

0

13

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$11.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

15

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 19

0

16

Cub Cadet 756-3008

4L V-Pulley, 4.62 OD X .75 ID

$53.99

$

In Stock, Qty 6

0

17

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16

$4.99

$

In Stock, Qty 7

0

18

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 GR5

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 736-0258

Washer, Flat, .378 X 1.0 X .127 Thk

$4.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0169

Washer, Lock, 3/8 Dia

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

23

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet 710-0428

Screw, Hex Cap, 1/4-28 X 1.25 Lg GR5

$2.49

$

In Stock, only 1 left!

0

26

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0267

Washer, Flat, .385 X .88 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 732-0180

Spring, Extension, .88 OD X 4.00 Lg
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

29

Cub Cadet 703-1736

Bracket, Idler

Variations

Cub Cadet 703-1736-0498

IDLER BRACKET ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

30

Cub Cadet 711-3272

Spacer, Shoulder
(Superseded to 911-3272A)

$14.99

$

In Stock, only 4 left!

0

31

Cub Cadet 736-0213

Washer, Bell, 3/8 Dia

$6.99

$

In Stock, only 3 left!

0

32

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 10

0

33

Cub Cadet 756-0365

Idler, Flat, 3.5 OD
(Superseded to 956-0365)

$48.99

$

In Stock, Qty 7

0

34

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .63 Thk

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 754-3041

V-Belt, 1/2 X 105.0 Lg
(Superseded to 954-3041)

$58.99

$

In Stock, only 1 left!

0

36

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR5

$4.49

$

In Stock, Qty 6

0

37

Cub Cadet 703-1775

Pulley Assy, Double
(Superseded to 759-3652)

Note: [Order 759-3652 includes Ref No. 38 (Qty 2), 39, 40 (Qty 2) & 41]

$353.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 741-0155

Bearing, Ball, .62 ID X 1.38 OD X .44 Thk
(Superseded to 941-0155)

Note: (Used in 703-1775 Pulley Assy)

$23.99

$

In Stock, Qty 15

0

Cub Cadet 741-0524

Bearing, Ball, .62 ID X 1.57 OD X .44 Thk
(Superseded to 941-0524A)

Note: (Used in 759-3652 Pulley Assy)

$23.99

$

In Stock, Qty 20+

0

39

Cub Cadet 750-3043

Spacer, Pulley, .64 ID X .81 OD X 2.25 Lg

Note: (Used in 703-1775 Pulley Assy)

$

$

Not available

Cub Cadet 750-3071

Spacer, Pulley, .64 ID X .88 OD X 2.37 Lg

Note: (Used in 759-3652 Pulley Assy)

$19.99

$

In Stock, only 1 left!

0

40

Cub Cadet 716-3020

Snap Ring, Internal
(Superseded to 916-3020)

Note: (Used in 759-3652 Pulley Assy)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 756-3056

Pulley, Double
(Superseded to 759-3652)

Note: (Used in 759-3652 Pulley Assy)

$353.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0290

Washer, Flat, .63 ID X 1.0 OD X .63 Thk HDN

$6.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-3151

Bolt, Hex, 5/8-18 X 4.25 Lg GR5

$20.99

$

In Stock, Qty 12

0
