33525 - Toro Spreader Attachment for Stand-On Aerator (SN: 413000000 - 999999999) Spreader Hopper and Frame Assembly Parts Diagram

Spreader Attachment for Stand-On Aerator

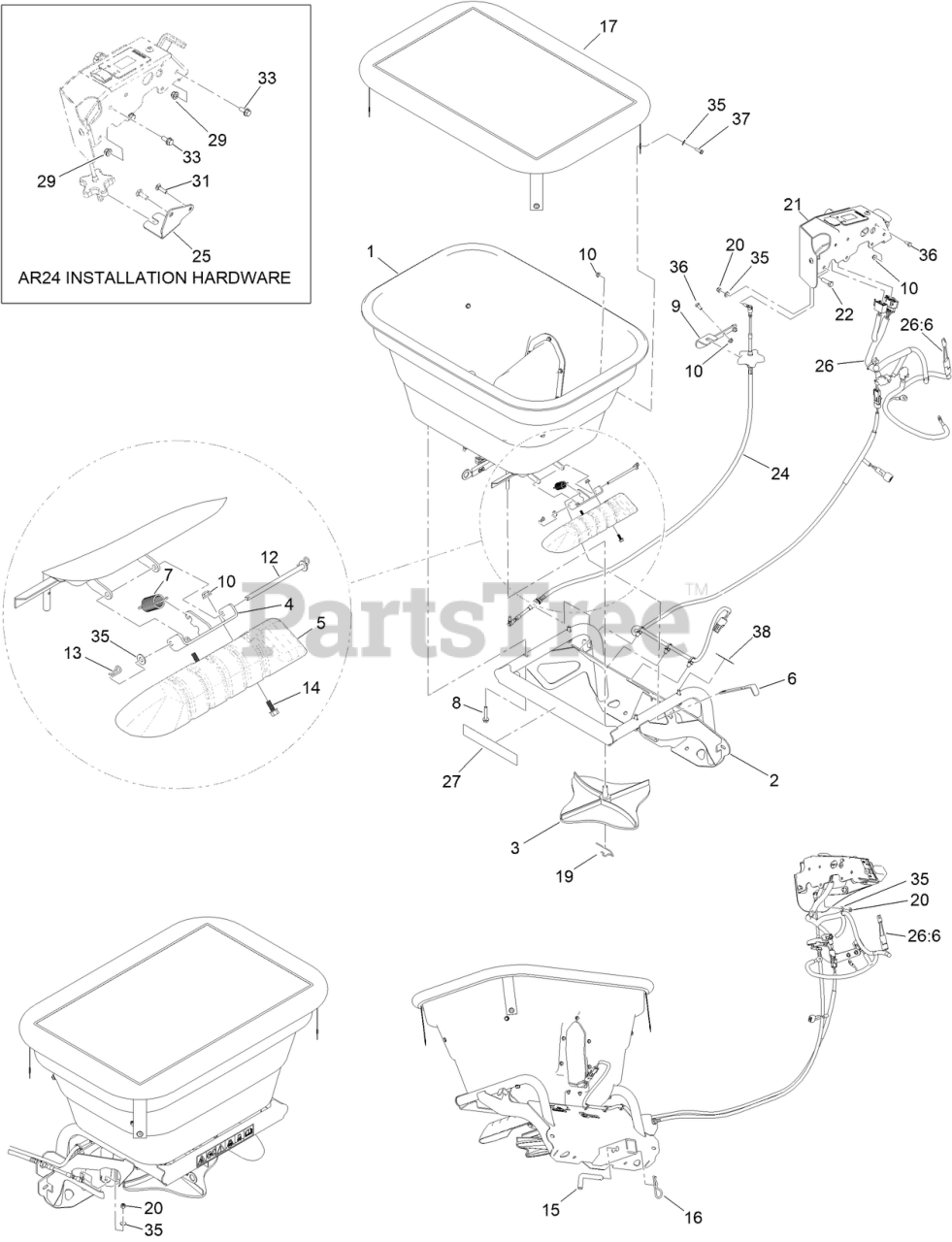

Spreader Hopper and Frame Assembly Parts Diagram

  • Title
1

SPREADER HOPPER ASM

Note: Not serviced separately

$

$

Not available

2

Toro 135-0193-03

SPREADER HOPPER FRAME ASM

$541.99

$

Usually ships in 3-6 days

0

3

Toro 142-3506

SPINNER-SPREADER

$41.99

$

In Stock, only 2 left!

0

4

Toro 135-1514-03

BRACKET-DEFLECTOR

$27.99

$

Usually ships in 3-6 days

0

5

Toro 126-8623

DEFLECTOR

$76.99

$

Usually ships in 3-6 days

0

6

Toro 126-8625

STRAP-ENGAGEMENT

$17.99

$

Usually ships in 3-6 days

0

7

Toro 92-7305

SPRING-EXTENSION

$10.99

$

In Stock, only 1 left!

0

8

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

9

Toro 126-8634-03

BRACKET-CABLE

$14.99

$

Usually ships in 3-6 days

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 126-8636

PIN-PIVOT

$13.99

$

Usually ships in 3-6 days

0

13

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

14

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

15

Toro 126-8637

PIN-HITCH

$18.99

$

Usually ships in 3-6 days

0

16

Toro 3290-256

PIN-HAIR

$8.49

$

In Stock, Qty 9

0

17

Toro 126-2815

COVER-HOPPER

$101.99

$

In Stock, only 3 left!

0

19

Toro 142-3541

CLIP-SPINNER

$10.99

$

In Stock, only 2 left!

0

20

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

21

SPREADER CONTROLLER ASM

Note: Not serviced separately

$

$

Not available

22

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Toro 135-0841

CABLE-PUSH, PULL

$153.99

$

In Stock, only 1 left!

0

25

Toro 135-0857-03

BRACKET-CABLE

$11.99

$

Usually ships in 3-6 days

0

26

Toro 135-0700

HARNESS

$253.99

$

Usually ships in 3-6 days

0

26:6

Toro 135-0878

CONNECTOR

$34.99

$

Usually ships in 3-6 days

0

27

Toro 126-4994

DECAL-DOWN, TIE

$7.99

$

Usually ships in 3-6 days

0

29

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

35

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

38

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
