33522 - Toro Brush Cutter (SN: 412000000 - 999999999) Engine and Frame Assembly Parts Diagram

Brush Cutter

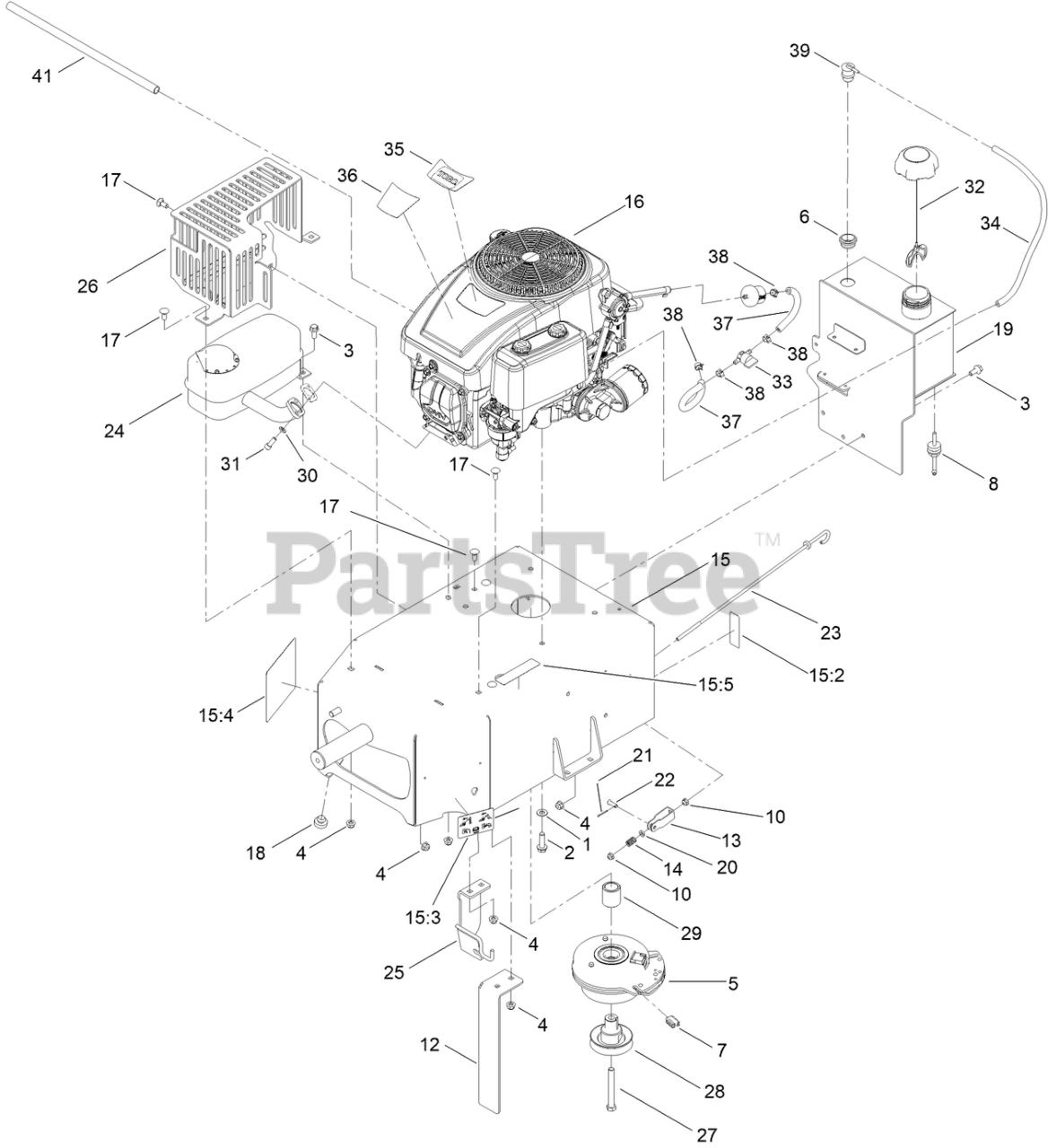

Engine and Frame Assembly Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

3

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 136-1425

CLUTCH-ELECTRIC

$363.99

$

Usually ships in 3-6 days

0

6

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

7

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 8

0

8

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, Qty 6

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 132-4060-01

BRACKET-TORQUE

$

$

Currently unavailable

13

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

14

Toro 63-4220

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

15

Toro 136-4626

FRAME ASM

$697.99

$

Usually ships in 3-6 days

0

15:2

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

15:3

Toro 136-4646

DECAL-BYPASS

$10.99

$

Usually ships in 3-6 days

0

15:4

Toro 137-0653

DECAL-SERVICE

$23.99

$

Usually ships in 3-6 days

0

15:5

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

16

Toro 140-1142

KIT-ENGINE, SVC LC1P92F-1

$

$

Currently unavailable

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

19

Toro 145-4944

TANK-FUEL

$

$

Not available

20

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

23

Toro 136-1412

ROD-BRAKE

$34.99

$

Usually ships in 3-6 days

0

24

Toro 136-1423

MUFFLER

$109.99

$

Usually ships in 3-6 days

0

25

Toro 133-9711-01

GUIDE-BELT/CABLE

$47.99

$

Usually ships in 3-6 days

0

26

Toro 136-1429-03

GUARD-MUFFLER

$183.99

$

Usually ships in 3-6 days

0

27

Toro 3212-14

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

28

Toro 136-1424

PULLEY-HYDRO

$68.99

$

Usually ships in 3-6 days

0

29

Toro 136-1415

SPACER-CLUTCH

$20.99

$

Usually ships in 3-6 days

0

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

32

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, only 2 left!

0

33

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 5

0

34

Toro 110-8751

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

35

Toro 125-1700

DECAL-ENGINE

$10.99

$

Usually ships in 3-6 days

0

36

Toro 130-0682

DECAL-DISPLACEMENT, ENGINE

$6.99

$

Usually ships in 3-6 days

0

37

Toro 109-0660

HOSE-FUEL

$4.49

$

In Stock, only 3 left!

0

38

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

39

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

41

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

In Stock, only 4 left!

0
