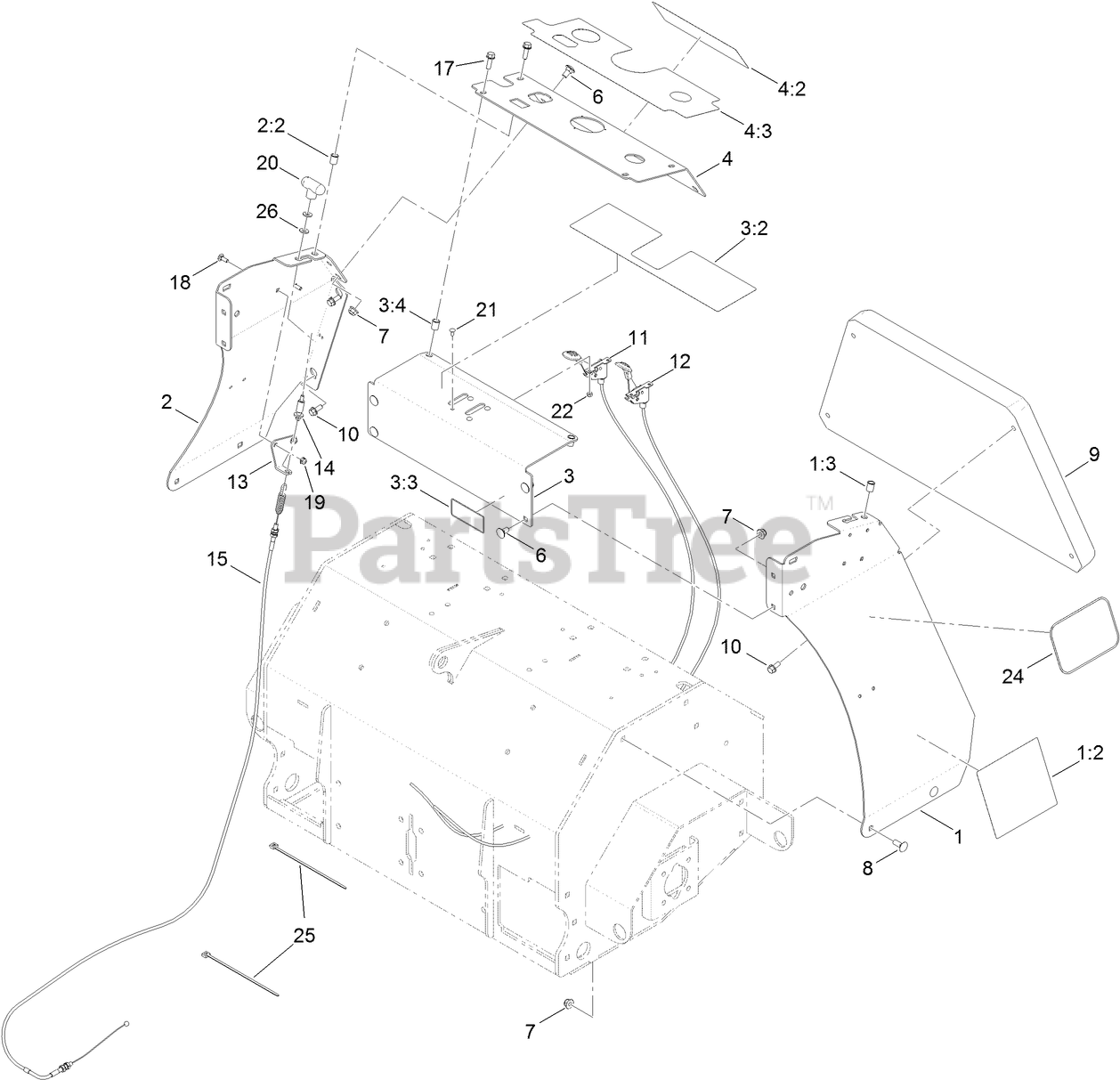

33518 - Toro 30" Stand-On Aerator (SN: 314000001 - 314999999) (2014) TOWER ASSEMBLY Parts Diagram

30" Stand-On Aerator

TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 116-9387

LH SIDE PANEL ASM

$215.99

$

Usually ships in 3-6 days

0

1:2

Toro 116-9392

DECAL-SERVICE AID CE

$20.99

$

Usually ships in 3-6 days

0

1:3

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

2

Toro 116-7657

RH SIDE PANEL ASM

$259.99

$

Usually ships in 3-6 days

0

2:2

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

3

Toro 116-6784

PLATE ASM

$178.99

$

Usually ships in 3-6 days

0

3:2

Toro 121-6164

DECAL-WARNING, CONTROL PANEL

$35.99

$

Usually ships in 3-6 days

0

3:3

Toro 121-6162

DECAL-WARNING, TINES

$5.49

$

Usually ships in 3-6 days

0

3:4

Toro 32148-7

NUT-INSERT

$3.99

$

Usually ships in 3-6 days

0

4

Toro 116-9142

CONSOLE ASM

$148.99

$

Usually ships in 3-6 days

0

4:2

Toro 121-6166

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

4:3

Toro 116-9132

DECAL-DANGER, CONTROL PANEL

$36.99

$

Usually ships in 3-6 days

0

6

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 116-6959

CUSHION-BLACK

$271.99

$

Usually ships in 3-6 days

0

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

11

Toro 109-9147

CONTROL-CHOKE

$38.99

$

Usually ships in 3-6 days

0

12

Toro 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, Qty 8

0

13

Toro 116-6630

BRACKET-CABLE, BRAKE

$17.99

$

In Stock, only 1 left!

0

14

Toro 116-7504

LINK-CABLE, BRAKE

$57.99

$

Usually ships in 3-6 days

0

15

Toro 116-7503

CABLE-BRAKE

$95.99

$

In Stock, only 4 left!

0

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 116-7607

KNOB-TEE

$13.99

$

Usually ships in 3-6 days

0

21

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 62-5550

DECAL

$10.99

$

In Stock, only 4 left!

0

25

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

26

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
