Toro 33515 - Toro 21" Walk-Behind Aerator (SN: 315000001 - 315999999) (2015) HANDLE ASSEMBLY Parts Lookup with Diagrams

1

Toro 126-0639

HANDLE ASM

$382.99

$

Usually ships in 3-6 days

1:2

Toro 121-6151

DECAL-THROTTLE, CHOKE

$4.99

$

Usually ships in 3-6 days

1:3

Toro 116-8699

DECAL-AERATOR CONTROL PANEL

$21.99

$

Usually ships in 3-6 days

2

Toro 121-6053-03

TUBE-CONTROL

$74.99

$

Usually ships in 3-6 days

3

Toro 116-9873-03

TUBE-HANDLE LIFT

$105.99

$

Usually ships in 3-6 days

4

Toro 116-9898

CONTROL-THROTTLE

$49.99

$

In Stock, only 1 left!

5

Toro 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

6

Toro 121-1893-03

HANDLE-LOWER

$67.99

$

Usually ships in 3-6 days

7

Toro 116-9883-03

HANDLE-LOWER, LH

$67.99

$

Usually ships in 3-6 days

8

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

10

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

11

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

13

Toro 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

14

Toro 126-5715-03

ARM-UPPER

$184.99

$

Usually ships in 3-6 days

15

Toro 121-6068

CABLE

$146.99

$

In Stock, Qty 5

16

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

17

Toro 121-6060

BUSHING-PIVOT

$6.49

$

Usually ships in 3-6 days

18

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

20

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

21

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

22

Toro 121-6057

ANGLE-STOP

$19.99

$

Usually ships in 3-6 days

23

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

25

Toro 67-1300

DECAL

$31.99

$

In Stock, only 2 left!

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

27

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

28

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

29

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

30

Toro 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

31

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

32

Toro 01-170-0040

U-BOLT

$4.99

$

Usually ships in 3-6 days

33

Toro 126-5472-03

ARM-UPPER

$

Currently unavailable 

34

Toro 126-5470-03

ARM-LOWER

$118.99

$

Usually ships in 3-6 days

35

Toro 119-4073

BOLT-SHOULDER, GROOMER

$17.99

$

Usually ships in 3-6 days

36

Toro 126-5473

SCREW, HH

$26.99

$

Usually ships in 3-6 days

37

Toro 86-1550

END-ROD, RH THREAD

$98.99

$

Usually ships in 3-6 days

38

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

39

Toro 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

40

Toro 109-1092

Knob

$8.49

$

Usually ships in 3-6 days

41

Toro 3231-25

BOLT-CARR

(Superseded to 119-4162) 

$1.99

$

In Stock, Qty 20+

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

43

Toro 126-5150

PIN-LATCH, TRANPORT

$25.99

$

Usually ships in 3-6 days

44

Toro 126-5151

SPRING-COMPRESSION

$13.99

$

Usually ships in 3-6 days

45

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

46

Toro 126-5659

KEEPER

$44.99

$

Usually ships in 3-6 days

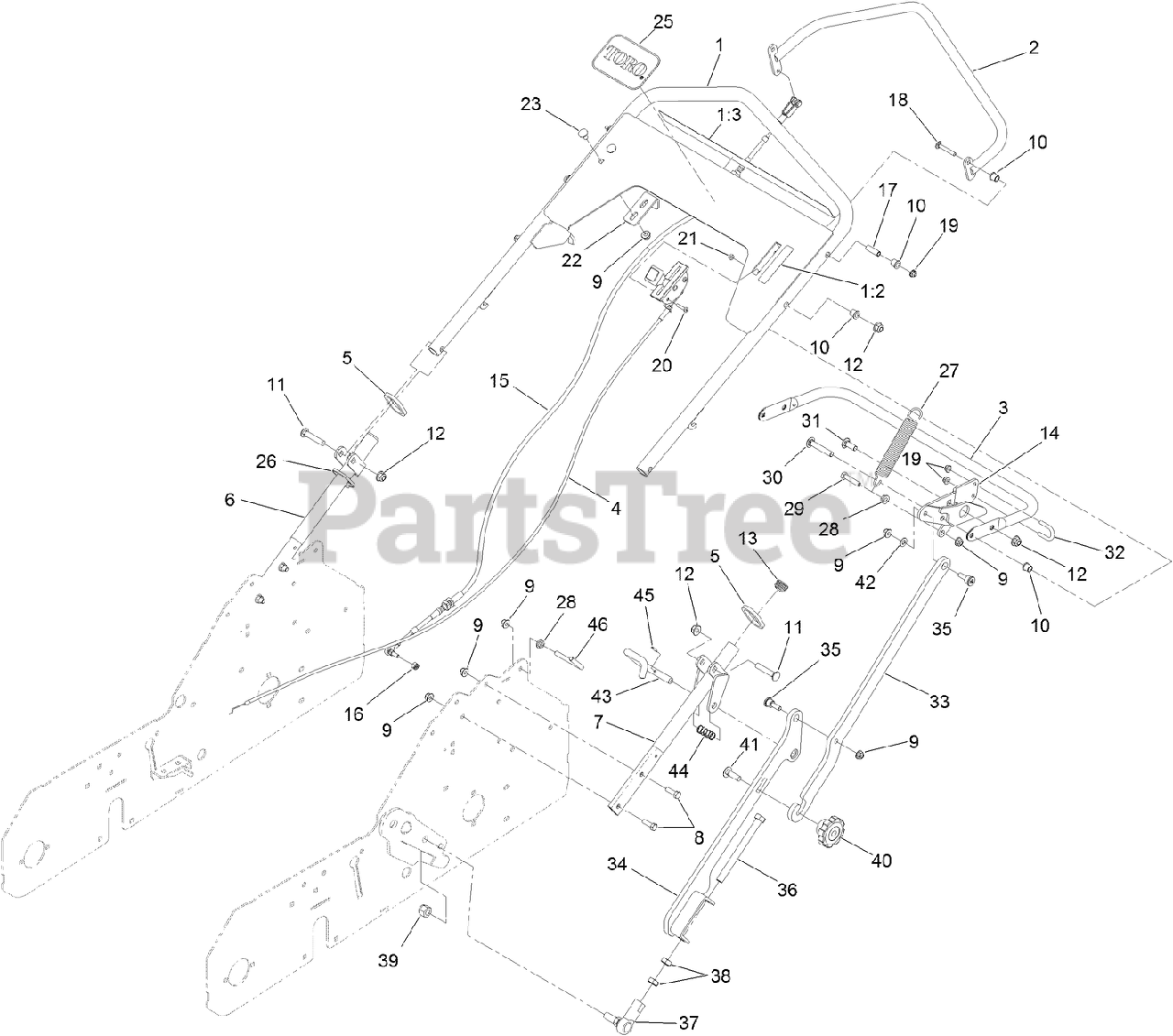

33515 - Toro 21" Walk-Behind Aerator (SN: 315000001 - 315999999) (2015) HANDLE ASSEMBLY Parts Diagram

HANDLE ASSEMBLY Parts Diagram
