33515 - Toro 21" Walk-Behind Aerator (SN: 314000001 - 314999999) (2014) HANDLE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

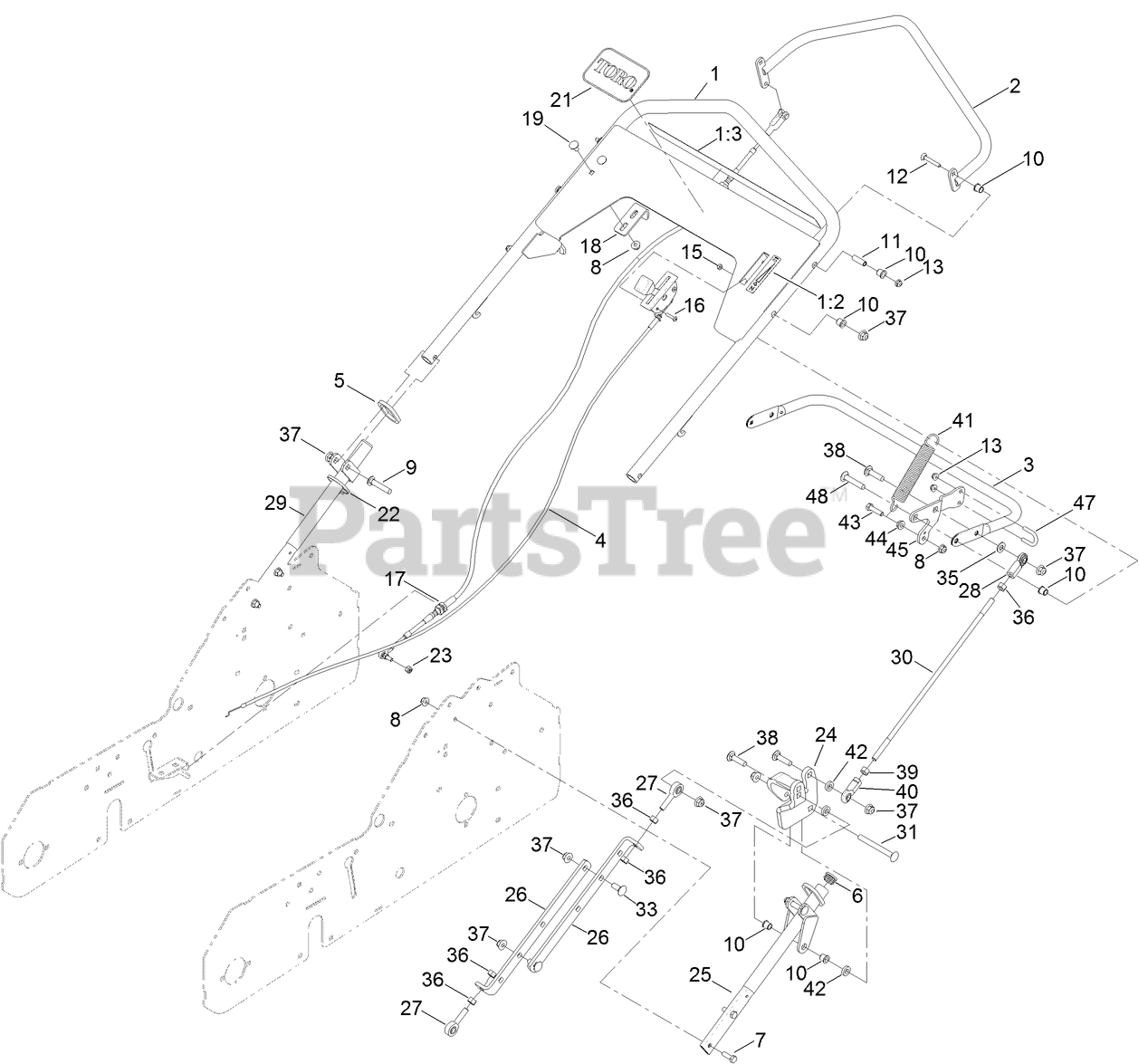

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 126-0639

HANDLE ASM

$382.99

$

Usually ships in 3-6 days

0

1:2

Toro 121-6151

DECAL-THROTTLE, CHOKE

$4.99

$

Usually ships in 3-6 days

0

1:3

Toro 116-8699

DECAL-AERATOR CONTROL PANEL

$21.99

$

Usually ships in 3-6 days

0

2

Toro 121-6053-03

TUBE-CONTROL

$74.99

$

Usually ships in 3-6 days

0

3

Toro 116-9873-03

TUBE-HANDLE LIFT

$105.99

$

Usually ships in 3-6 days

0

4

Toro 116-9898

CONTROL-THROTTLE

$49.99

$

In Stock, only 1 left!

0

5

Toro 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

0

6

$2.99

$

Usually ships in 3-6 days

0

7

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 18

0

10

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

11

Toro 121-6060

BUSHING-PIVOT

$6.49

$

Usually ships in 3-6 days

0

12

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

13

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

17

$146.99

$

In Stock, Qty 5

0

18

Toro 121-6057

ANGLE-STOP

$19.99

$

Usually ships in 3-6 days

0

19

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

21

Toro 67-1300

DECAL

$31.99

$

In Stock, only 2 left!

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

23

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

24

Toro 126-1656-03

BRACKET-TRUNNION

$41.99

$

Usually ships in 3-6 days

0

25

Toro 116-9883-03

HANDLE-LOWER, LH

$67.99

$

Usually ships in 3-6 days

0

26

Toro 126-0841-03

LINK-LIFT

$27.99

$

Usually ships in 3-6 days

0

27

Toro 1-613204

BALLJOINT

$31.99

$

In Stock, Qty 8

0

28

Toro 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

29

Toro 121-1893-03

HANDLE-LOWER

$67.99

$

Usually ships in 3-6 days

0

30

Toro 116-9893

ROD-UPPER LINK

$31.99

$

In Stock, only 1 left!

0

31

Toro 3231-24

SCREW-CARR

$14.99

$

Usually ships in 3-6 days

0

33

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

37

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

39

Toro 3219-20

NUT-HEX, LH

$2.99

$

Usually ships in 3-6 days

0

40

Toro 103-1167

JOINT-BALL END, LH

$31.99

$

In Stock, Qty 10

0

41

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 4 left!

0

42

Toro 80-7730

SPACER

$14.99

$

Usually ships in 3-6 days

0

43

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

44

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

45

Toro 126-1657-03

BRACKET-SPRING

$30.99

$

Usually ships in 3-6 days

0

47

$4.99

$

Usually ships in 3-6 days

0

48

Toro 117-9971

BOLT-CARRIAGE

$3.99

$

Usually ships in 3-6 days

0
