33515 - Toro 21" Walk-Behind Aerator (SN: 312000001 - 312999999) (2012) HANDLE ASSEMBLY Parts Diagram

21" Walk-Behind Aerator

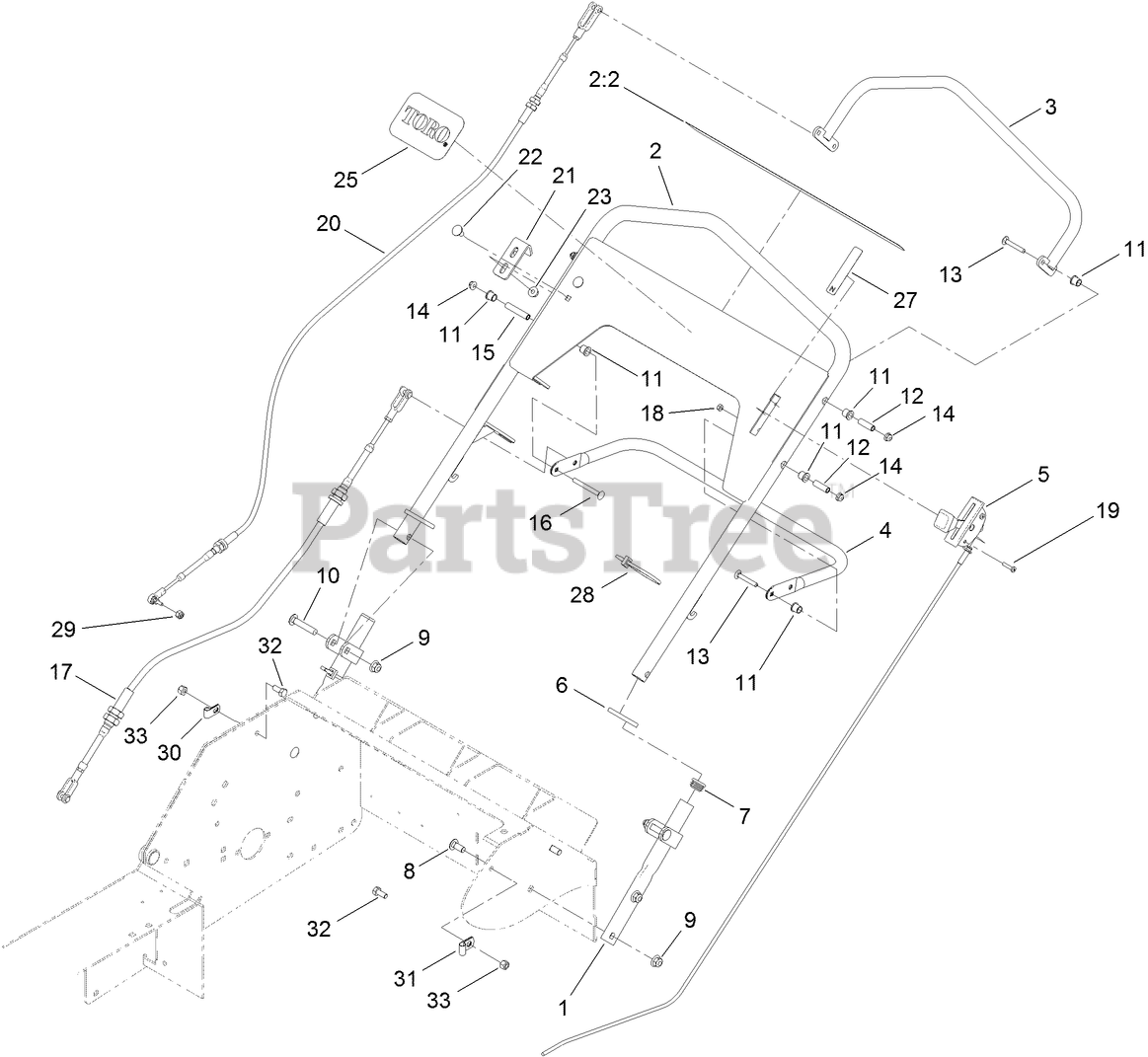

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4866-03

MOUNT-HANDLE

$70.99

$

Usually ships in 3-6 days

0

2

Toro 121-6199

HANDLE ASM

$

$

Not available

2:2

Toro 121-2008

DECAL-AERATOR, CONTROL PANEL
(Superseded to 116-8699)

$21.99

$

Usually ships in 3-6 days

0

3

Toro 121-6053-03

TUBE-CONTROL

$73.99

$

Usually ships in 3-6 days

0

4

Toro 121-6058

TUBE-LIFT, HANDLE

$

$

Not available

5

Toro 103-6123

CONTROL-THROTTLE

$88.99

$

Usually ships in 3-6 days

0

6

Toro 121-6202

RING-HANDLE LOCK

$7.99

$

Usually ships in 3-6 days

0

7

Toro 121-4870

PLUG

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

11

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 11

0

12

Toro 121-6060

BUSHING-PIVOT

$6.49

$

Usually ships in 3-6 days

0

13

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 121-6062

BUSHING-PIVOT

$26.99

$

Usually ships in 3-6 days

0

16

Toro 3229-8

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

17

Toro 121-4904

CABLE

$146.99

$

In Stock, only 1 left!

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 3250-27

SCREW-PPH

$0.99

$

In Stock, Qty 9

0

20

Toro 121-6068

CABLE

$146.99

$

In Stock, Qty 5

0

21

Toro 121-6057

ANGLE-STOP

$19.99

$

Usually ships in 3-6 days

0

22

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

23

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

25

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

27

Toro 121-6151

DECAL-THROTTLE, CHOKE

$4.99

$

Usually ships in 3-6 days

0

28

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

29

Toro 3296-3

NUT-LOCK

$4.99

$

Usually ships in 3-6 days

0

30

Toro 98-2390

CLAMP-R

$

$

Not available

31

Toro 2412-113

CLAMP-R

$2.49

$

Usually ships in 3-6 days

0

32

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
