33512 - Toro 20" Turf Seeder (SN: 413000000 - 999999999) Cutting Wheel Assembly Parts Diagram

20" Turf Seeder

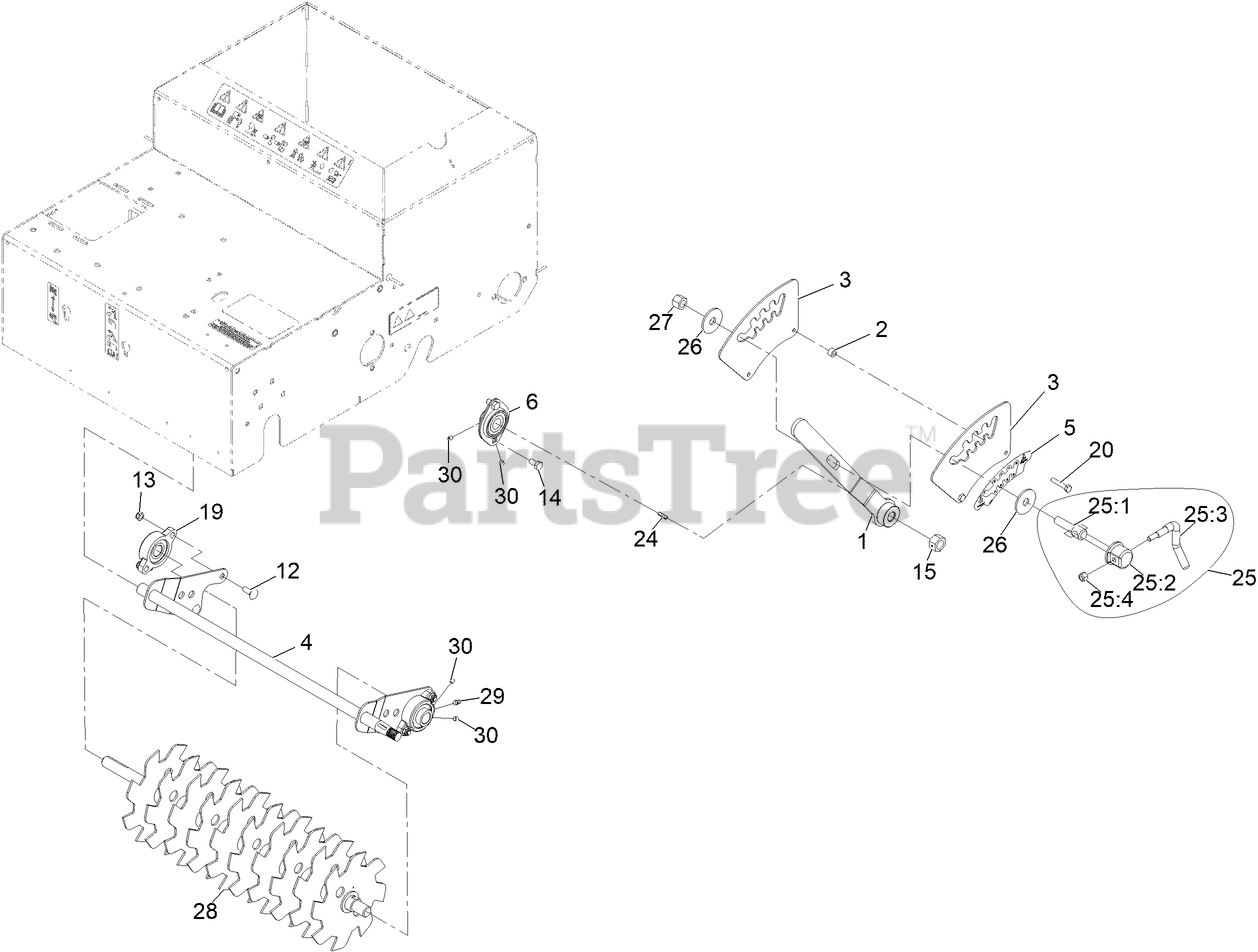

Cutting Wheel Assembly Parts Diagram

  • Title

1

Toro 116-9932-03

HANDLE-HEIGHT

$129.99

$

Usually ships in 3-6 days

0

2

Toro 98-4799

SPACER

$7.99

$

Usually ships in 3-6 days

0

3

Toro 116-9928

PLATE-HEIGHT

$21.99

$

Usually ships in 3-6 days

0

4

Toro 126-0010-03

PIVOT-HEIGHT

$120.99

$

Usually ships in 3-6 days

0

5

Toro 126-2446

DECAL-CUT DEPTH, SLICER/SEEDER

$12.99

$

Usually ships in 3-6 days

0

6

Toro 121-1961

BEARING

$39.99

$

In Stock, only 4 left!

0

12

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

14

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

15

Toro 603164

NUT-BLADE
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 11

0

19

Toro 116-9992

BEARING-FLANGE

$43.99

$

Usually ships in 3-6 days

0

20

Toro 142-4837

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

25

Toro 107-1664

LEVER ASM

$75.99

$

In Stock, only 2 left!

0

25:1

Toro 106-3239

SCREW-LOCK

$53.99

$

Usually ships in 3-6 days

0

25:2

Toro 107-1644

CAP-LOCK

$40.99

$

In Stock, only 2 left!

0

25:3

Toro 106-3241

See Supercession: 107-1664
(Superseded to 107-1664)

$75.99

$

In Stock, only 2 left!

0

25:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

27

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 126-0034

SLICER SHAFT ASM

$562.99

$

Usually ships in 3-6 days

0

29

Toro 302-19

FITTING-GREASE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.49

$

In Stock, Qty 20+

0

30

Toro 3245-35

SCREW-SET, HSH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$0.99

$

In Stock, Qty 10

0
