33510 - Toro 20" Turf Seeder (SN: 400000000 - 999999999) TRANSMISSION ASSEMBLY Parts Diagram

20" Turf Seeder

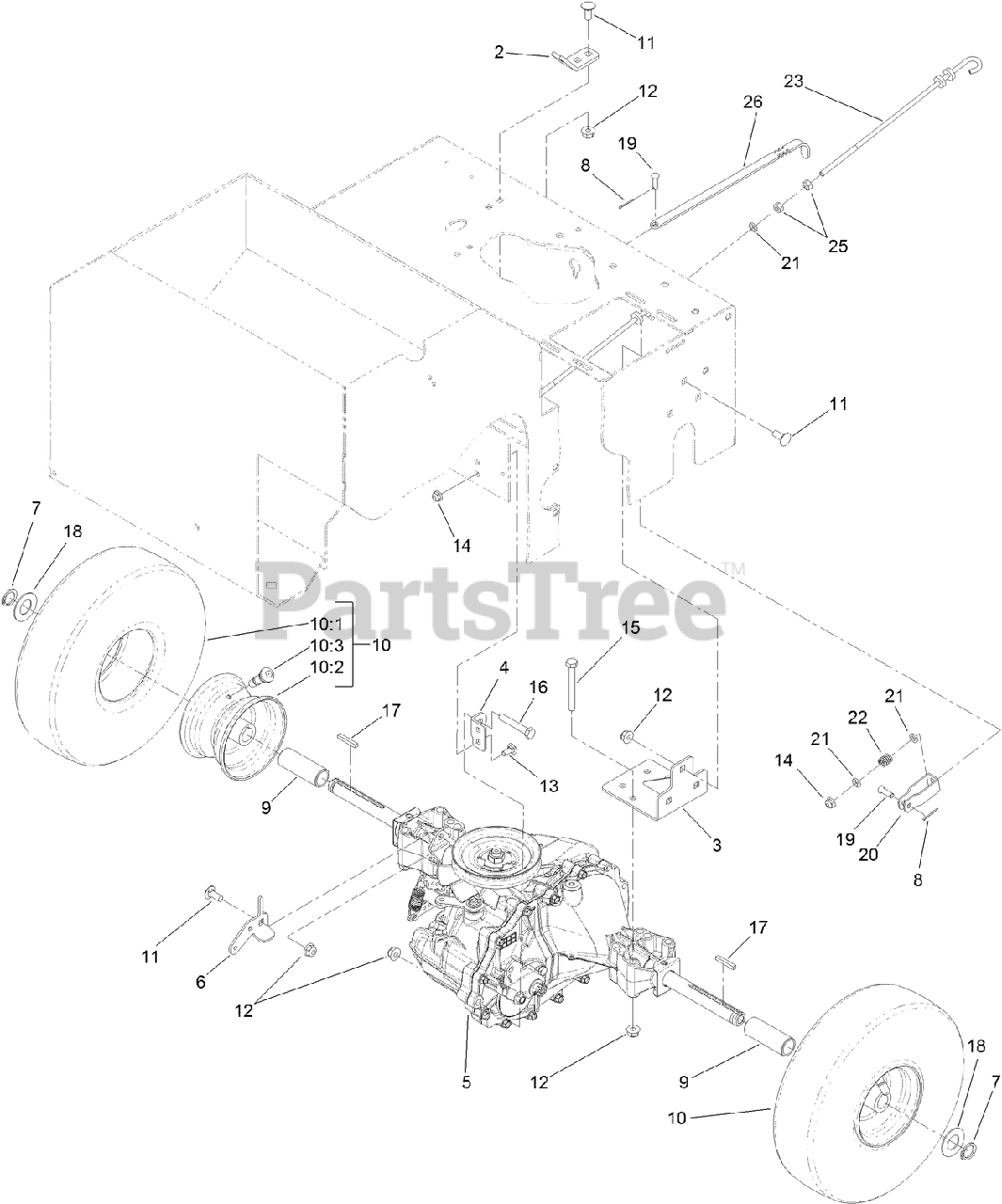

TRANSMISSION ASSEMBLY Parts Diagram

  • Title
2

Toro 121-1897

BRACKET-CABLE

$20.99

$

Usually ships in 3-6 days

0

3

Toro 121-1901-03

BRACKET-AXLE

$44.99

$

Usually ships in 3-6 days

0

4

Toro 121-1904

BRACKET-TRANSAXLE, TORQUE

$18.99

$

Usually ships in 3-6 days

0

5

Toro 121-1908

TRANSAXLE ASM

Note: Apply anti-seize compound to axle ends before installing tires.

$981.99

$

Usually ships in 3-6 days

0

6

Toro 121-1909

BRACKET-TRANSAXLE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

9

Toro 121-1988

SPACER

$17.99

$

Usually ships in 3-6 days

0

10

Toro 126-4264

WHEEL AND TIRE ASM
(Superseded to 120-3707)

$83.99

$

Usually ships in 3-6 days

0

10:1

$79.99

$

Usually ships in 3-6 days

0

10:2

Toro 126-4263

RIM-GRAY
(Superseded to 120-3706)

$58.99

$

Usually ships in 3-6 days

0

10:3

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

13

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

16

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

17

Toro 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

18

Toro 67-9410

WASHER

$3.99

$

Usually ships in 3-6 days

0

19

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

20

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

21

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

22

Toro 63-4220

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

23

Toro 121-2018

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

25

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

26

Toro 121-2039

LEVER-BYPASS

$21.99

$

Usually ships in 3-6 days

0
