33510 - Toro 20" Turf Seeder (SN: 312000001 - 312999999) (2012) ENGINE AND FRAME ASSEMBLY Parts Diagram

20" Turf Seeder

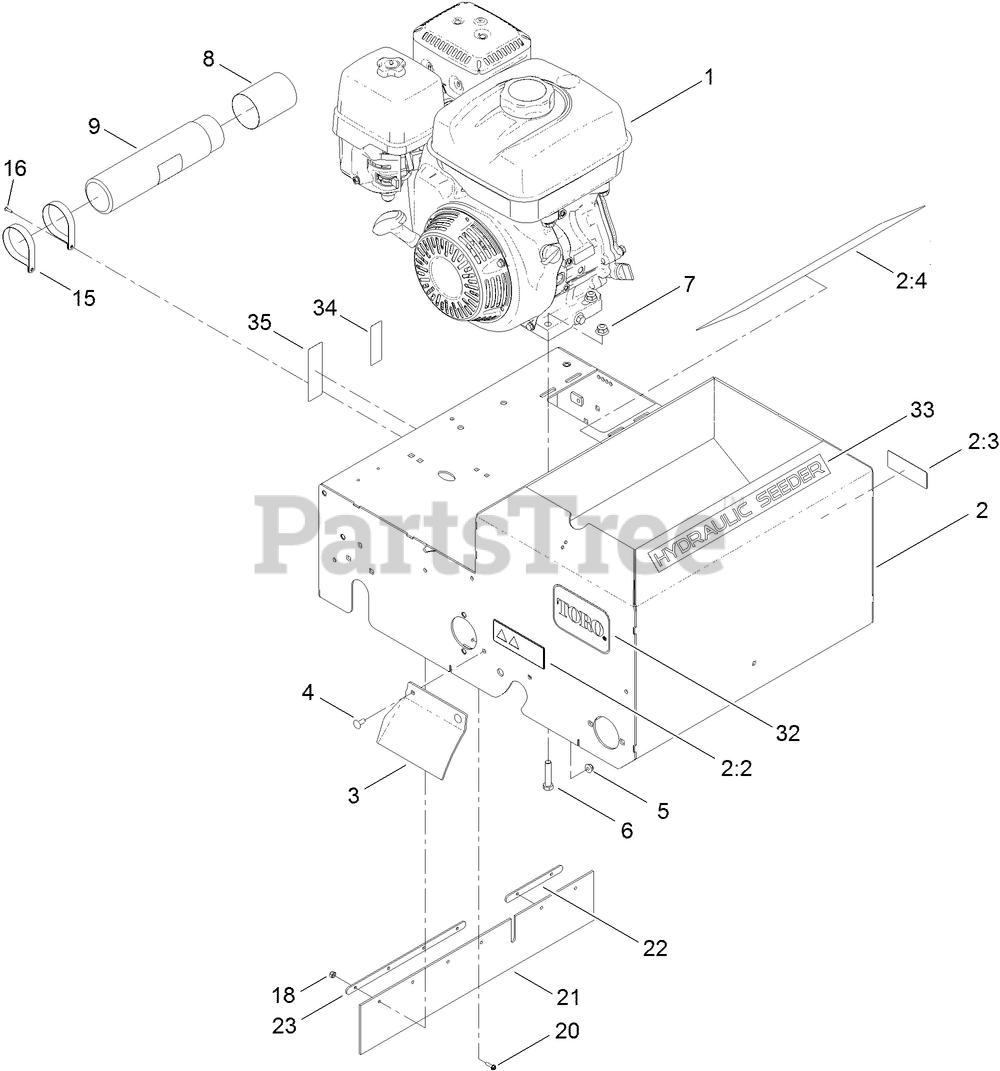

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, QX270UT2 QA2

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, QX270UT2 QA2

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 121-6196

FRAME ASM

$1002.99

$

Usually ships in 3-6 days

0

2:2

Toro 93-7321

DECAL-DANGER

$31.99

$

Usually ships in 3-6 days

0

2:3

Toro 117-4979

DECAL-WARNING, SHIELDS

$13.99

$

Usually ships in 3-6 days

0

2:4

Toro 121-2011

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

3

Toro 121-1896-01

GUARD-RH

$29.99

$

Usually ships in 3-6 days

0

4

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 9

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

9

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

15

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

16

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

18

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

20

Toro 3290-392

SCREW-SHH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 121-1990

GUARD-DUST

$36.99

$

Usually ships in 3-6 days

0

22

Toro 121-1991

PLATE-RETAINER

$15.99

$

Usually ships in 3-6 days

0

23

Toro 121-1992

PLATE-RETAINER

$20.99

$

Usually ships in 3-6 days

0

32

Toro 67-1300

DECAL

$34.99

$

Usually ships in 3-6 days

0

33

Toro 121-6177

DECAL

$22.99

$

Usually ships in 3-6 days

0

34

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

35

Toro 121-6203

DECAL-BYPASS

$3.99

$

Usually ships in 3-6 days

0
