335 XPT - Husqvarna Chainsaw, CARB (SN: 20011800001 & Above) CYLINDER PISTON Parts Diagram

Chainsaw, CARB

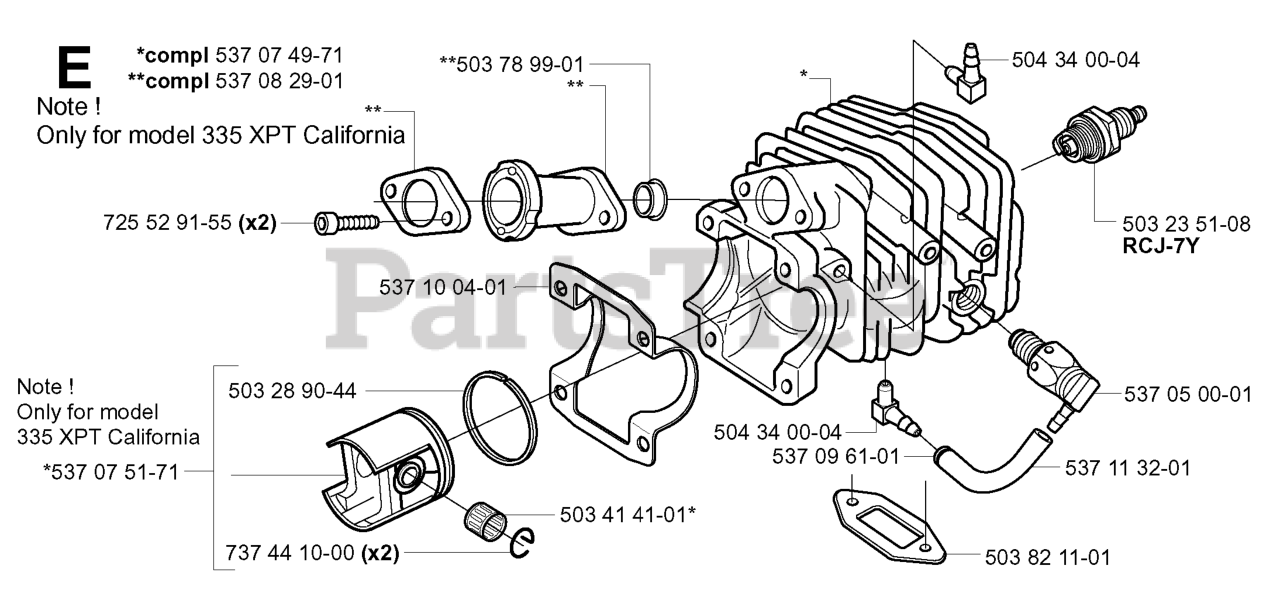

CYLINDER PISTON Parts Diagram

  • Title

503 41 41-01

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0

537 05 00-01

Husqvarna 537050001

VALVE
(Superseded to 537126805)

$36.99

$

In Stock, only 2 left!

0

737 44 10-00

Husqvarna 737441000

LOCKING RING

$6.49

$

Usually ships in 3-10 days

0

504 34 00-04

Husqvarna 504340004

NIPPLE

$

$

Not available

537 09 61-01

Husqvarna 537096101

SLEEVE

$6.99

$

In Stock, Qty 5

0

725 52 91-55

Husqvarna 725529155

SCREW MC6S 4X12

$3.49

$

Usually ships in 3-10 days

0

503 78 99-01

Husqvarna 503789901

SLEEVE
(Superseded to 537193002)

$51.99

$

Usually ships in 3-10 days

0

503 23 51-08

Husqvarna 503235108

SPARK PLUG RCJ7Y
(Superseded to 503235111)

Note: RCJ-7Y

$3.49

$

In Stock, Qty 20+

0

503 28 90-44

Husqvarna 503289044

PISTON RING

$17.99

$

Usually ships in 3-10 days

0

537 11 32-01

Husqvarna 537113201

PIPE
(Superseded to 537427803)

$

$

Not available

537 10 04-01

Husqvarna 537100401

GASKET

$11.99

$

In Stock, only 1 left!

0

537 08 29-01

Husqvarna 537082901

KIT
(Superseded to 537193002)

$51.99

$

Usually ships in 3-10 days

0

537 07 49-71

Husqvarna 537074971

CYLINDER
(Superseded to 537074903)

$284.99

$

Usually ships in 3-10 days

0

537 07 51-71

Husqvarna 537075171

PISTON
(Superseded to 537075101)

$91.99

$

Usually ships in 3-10 days

0

503 82 11-01

Husqvarna 503821101

GASKET

$5.99

$

In Stock, only 2 left!

0
