335 XPT - Husqvarna Chainsaw, CARB (SN: 20011800001 & Above) CRANKCASE Parts Diagram

Chainsaw, CARB

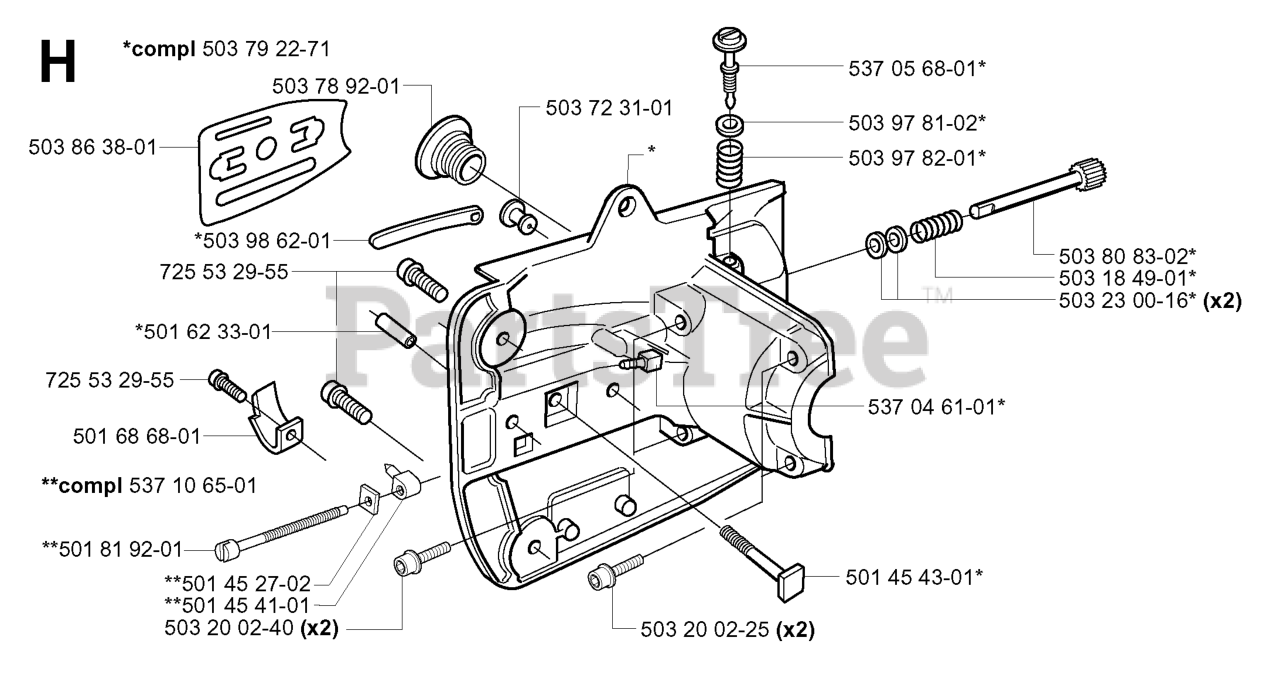

CRANKCASE Parts Diagram

  • Title

503 23 00-16

Husqvarna 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

503 97 82-01

Husqvarna 503978201

SPRING

$4.99

$

In Stock, only 1 left!

0

537 10 65-01

Husqvarna 537106501

CHAIN TENSIONER KIT

$17.99

$

In Stock, only 2 left!

0

501 45 41-01

Husqvarna 501454101

PAWL

$6.99

$

In Stock, Qty 5

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

503 97 81-02

Husqvarna 503978102

WASHER

$3.49

$

Usually ships in 3-10 days

0

503 78 92-01

Husqvarna 503789201

PINION

$6.99

$

In Stock, only 2 left!

0

503 98 62-01

Husqvarna 503986201

GASKET

$4.99

$

In Stock, only 2 left!

0

503 20 02-25

Husqvarna 503200225

SCREW

$4.99

$

In Stock, only 2 left!

0

501 62 33-01

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$4.99

$

Usually ships in 3-10 days

0

501 68 68-01

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

In Stock, only 3 left!

0

503 18 49-01

Husqvarna 503184901

SPRING

$4.99

$

In Stock, only 2 left!

0

503 79 22-71

Husqvarna 503792271

CRANKCASE
(Superseded to 503792206)

$79.99

$

Usually ships in 3-10 days

0

503 72 31-01

Husqvarna 503723101

BUSHING

$5.99

$

In Stock, only 3 left!

0

503 20 02-40

Husqvarna 503200240

SCREW

$6.49

$

In Stock, only 2 left!

0

537 04 61-01

Husqvarna 537046101

NIPPLE

$20.99

$

Usually ships in 3-10 days

0

503 86 38-01

Husqvarna 503863801

PLATE
(Superseded to 544339901)

$17.99

$

Usually ships in 3-10 days

0

537 05 68-01

Husqvarna 537056801

SCREW

$4.99

$

Usually ships in 3-10 days

0

503 80 83-02

Husqvarna 503808302

%PUMP PISTON
(Superseded to 503808303)

$20.99

$

In Stock, only 1 left!

0

501 45 27-02

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 20+

0

501 81 92-01

Husqvarna 501819201

SCREW

$10.99

$

In Stock, Qty 5

0

501 45 43-01

Husqvarna 501454301

BOLT

$7.49

$

In Stock, only 2 left!

0
