335 XPT - Husqvarna Chainsaw, CARB (SN: 20011800001 & Above) CARBURETOR DETAILS Parts Diagram

Chainsaw, CARB

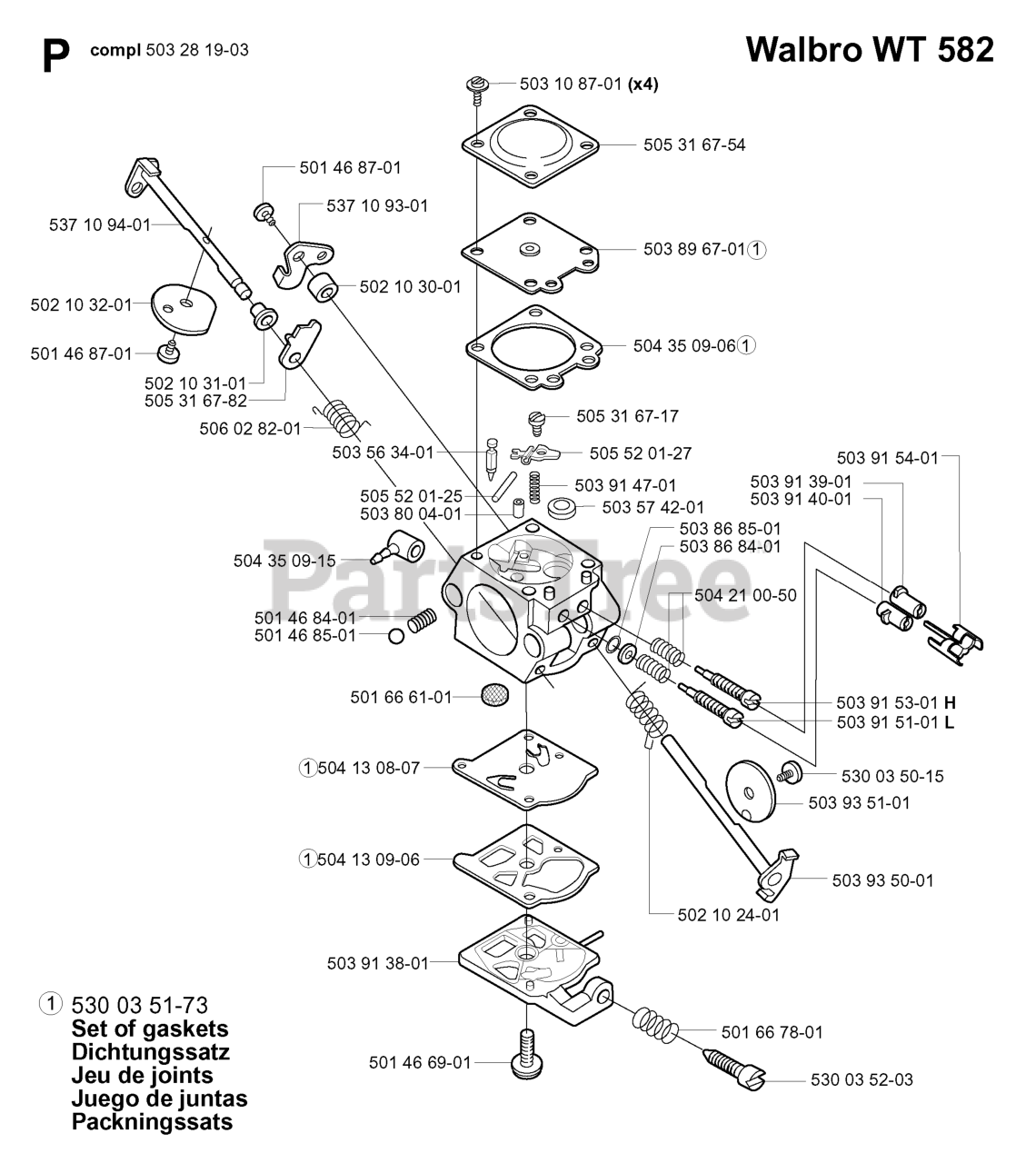

CARBURETOR DETAILS Parts Diagram

  • Title

537 10 93-01

Husqvarna 537109301

LEVER

$

$

Not available

505 31 67-54

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

In Stock, only 1 left!

0

503 91 53-01

Husqvarna 503915301

ADJUSTING SCREW

Note: H

$

$

Not available

530 03 52-03

Husqvarna 530035203

SCREW-IDLE SPEED

$8.99

$

Usually ships in 3-10 days

0

501 46 69-01

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0

506 02 82-01

Husqvarna 506028201

SPRING
(Superseded to 502119701)

$1.49

$

Usually ships in 3-10 days

0

503 93 50-01

Husqvarna 503935001

Shaft

$

$

Not available

503 86 84-01

Husqvarna 503868401

Washer

$0.99

$

In Stock, Qty 6

0

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

504 13 09-06

Husqvarna 504130906

GASKET

Note: 530 03 51-73 SET OF GASKETS

$11.99

$

In Stock, only 3 left!

0

502 10 31-01

Husqvarna 502103101

BUSHING

$11.99

$

Usually ships in 3-10 days

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

502 10 24-01

Husqvarna 502102401

SPRING, CARB. 40
(Superseded to 502119601)

$

$

Not available

503 91 38-01

Husqvarna 503913801

Cover

$

$

Not available

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

505 31 67-82

Husqvarna 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

504 35 09-15

Husqvarna 504350915

Nipple

$

$

Not available

501 46 84-01

Husqvarna 501468401

SPRING

$7.99

$

In Stock, only 1 left!

0

503 89 67-01

Husqvarna 503896701

DIAPHRAGM

Note: 530 03 51-73 SET OF GASKETS

$51.99

$

In Stock, Qty 10

0

503 80 04-01

Husqvarna 503800401

NOZZLE

$4.99

$

In Stock, only 1 left!

0

503 91 40-01

Husqvarna 503914001

LIMITER CAP

$5.99

$

In Stock, only 1 left!

0

504 21 00-50

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

503 91 54-01

Husqvarna 503915401

CAP

$9.49

$

Usually ships in 3-10 days

0

503 28 19-03

Husqvarna 503281903

CARBURETOR

$

$

Not available

503 86 85-01

Husqvarna 503868501

O-Ring

$

$

Not available

537 10 94-01

Husqvarna 537109401

CHOKE SHAFT

$

$

Not available

503 91 51-01

Husqvarna 503915101

ADJUSTING SCREW

Note: L

$9.49

$

In Stock, only 1 left!

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

504 35 09-06

Husqvarna 504350906

GASKET

Note: 530 03 51-73 SET OF GASKETS

$11.99

$

In Stock, Qty 7

0

501 46 85-01

Husqvarna 501468501

BALL

$7.99

$

Usually ships in 3-10 days

0

503 91 47-01

Husqvarna 503914701

SPRING

$11.99

$

Usually ships in 3-10 days

0

503 93 51-01

Husqvarna 503935101

THROTTLE FLAP

$8.07

$

Usually ships in 3-10 days

0

502 10 30-01

Husqvarna 502103001

SPACER

$13.99

$

Usually ships in 3-10 days

0

505 52 01-27

Husqvarna 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

504 13 08-07

Husqvarna 504130807

PUMP DIAPHRAGM

Note: 530 03 51-73 SET OF GASKETS

$31.99

$

In Stock, Qty 6

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

503 91 39-01

Husqvarna 503913901

LIMITER CAP

$

$

Not available

502 10 32-01

Husqvarna 502103201

Choke Flap

$

$

Not available
