335 XPT - Husqvarna Chainsaw (2001-05) Chain Brake Parts Diagram

Chainsaw

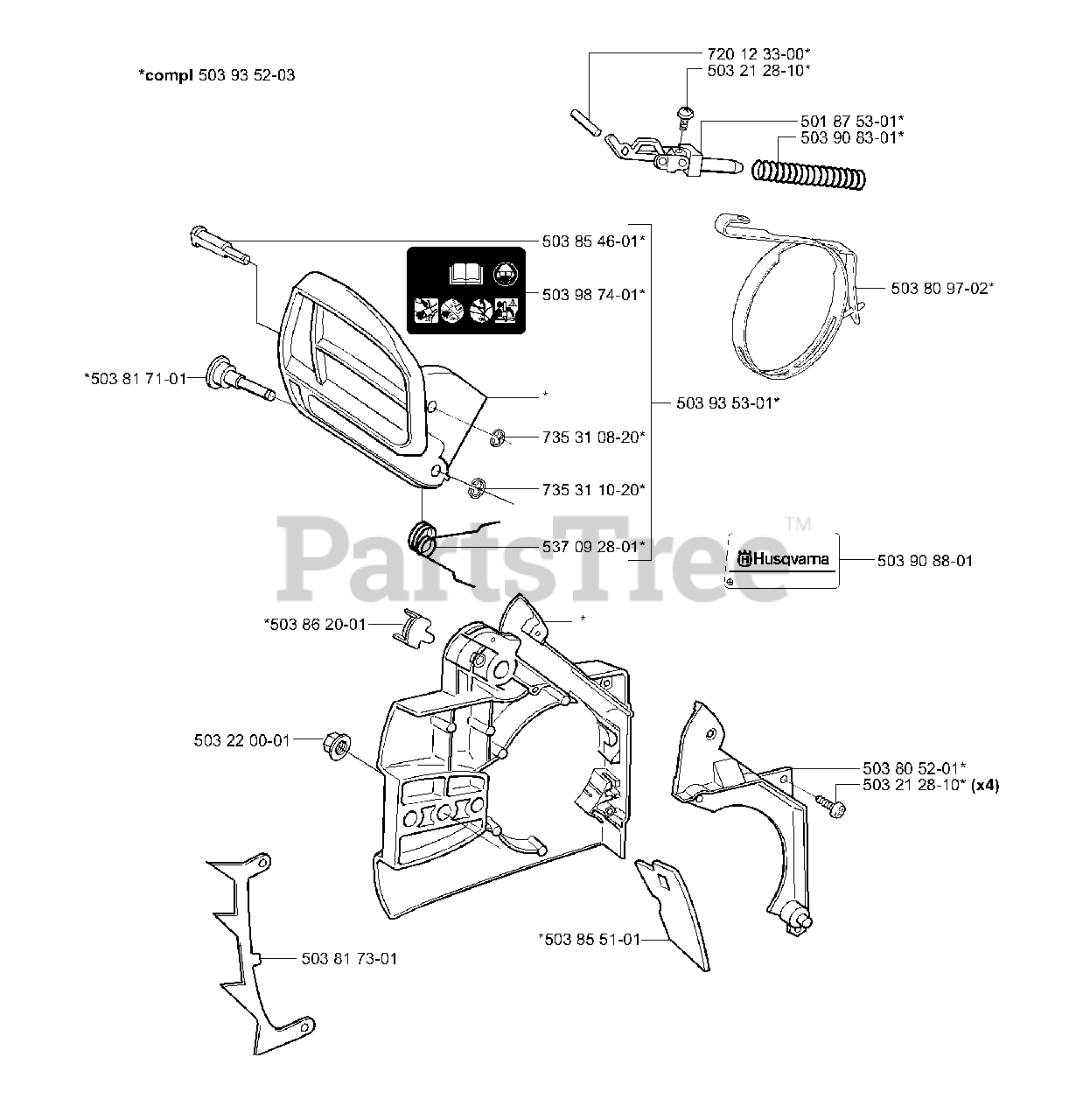

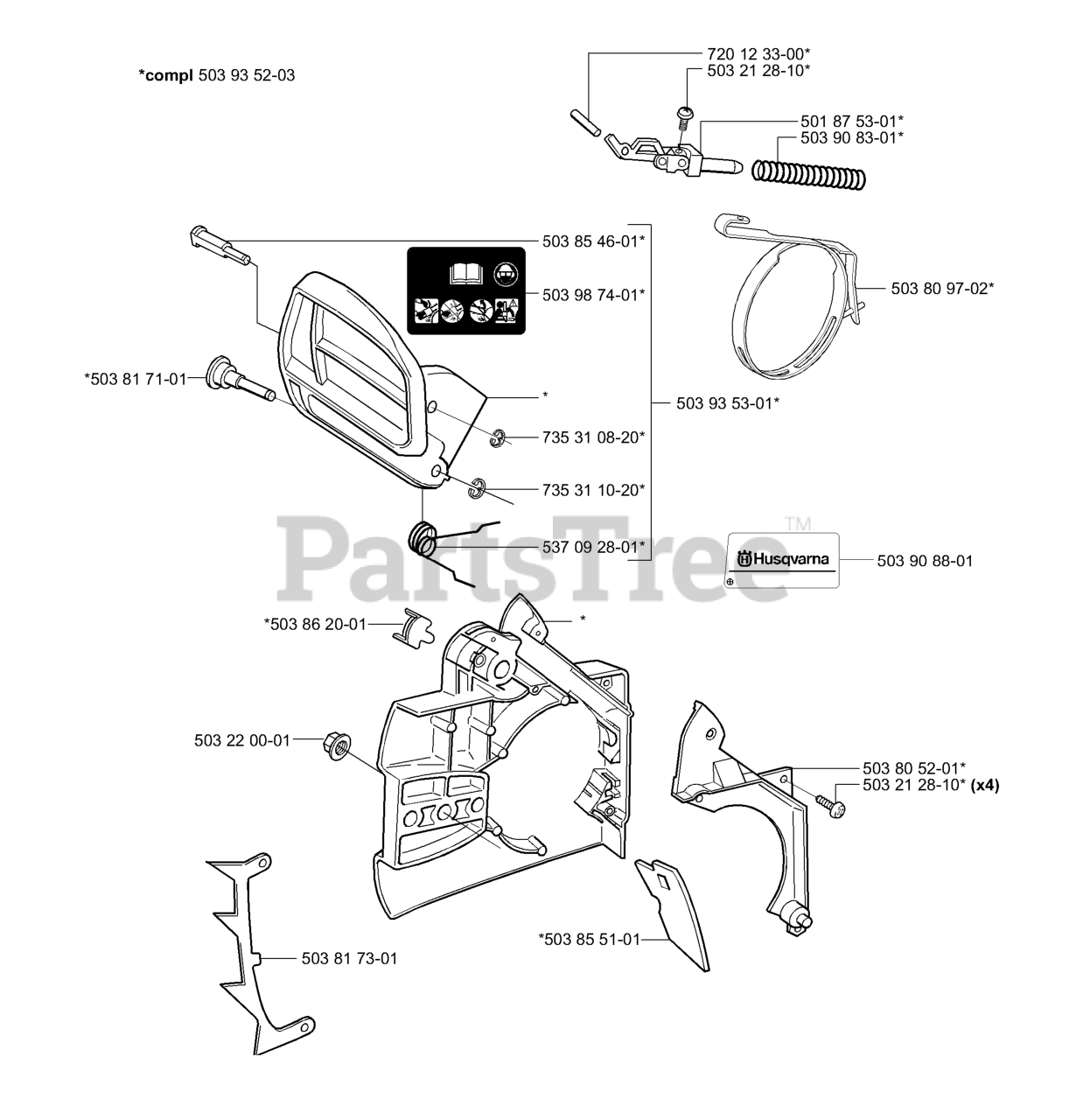

Chain Brake Parts Diagram

  • Title

503935203

Husqvarna 503935203

CHAINBRAKE ASSEMBLY
(Superseded to 544005501)

$116.99

$

Usually ships in 3-10 days

0

503817101

Husqvarna 503817101

Shaft Pivot

$17.99

$

In Stock, only 1 left!

0

503854601

Husqvarna 503854601

Pin

$20.99

$

In Stock, only 1 left!

0

503987401

Husqvarna 503987401

Decal

$9.99

$

In Stock, only 2 left!

0

735310820

Husqvarna 735310820

E-Ring 4

$4.99

$

In Stock, Qty 20+

0

735311020

Husqvarna 735311020

C-Washer

$3.99

$

In Stock, Qty 9

0

537092801

Husqvarna 537092801

SPRING

$5.99

$

Usually ships in 3-10 days

0

503862001

Husqvarna 503862001

Guide

$5.99

$

Usually ships in 3-10 days

0

503817301

Husqvarna 503817301

Felling Dog

$9.49

$

Usually ships in 3-10 days

0

503855101

Husqvarna 503855101

Protector

$6.99

$

Usually ships in 3-10 days

0

503220001

Husqvarna 503220001

Nut M8 Flange

$3.99

$

In Stock, Qty 20+

0

503805201

Husqvarna 503805201

Cover

$11.99

$

Usually ships in 3-10 days

0

503212810

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

503935301

Husqvarna 503935301

Hand Guard
(Superseded to 544013604)

$37.99

$

Usually ships in 3-10 days

0

503908801

Husqvarna 503908801

Decal

$

$

Not available

503809702

Husqvarna 503809702

BRAKE BAND
(Superseded to 503809703)

$10.99

$

In Stock, only 1 left!

0

503908301

Husqvarna 503908301

Spring
(Superseded to 505892601)

$4.99

$

In Stock, only 1 left!

0

501875301

Husqvarna 501875301

Knee-Joint

$26.99

$

In Stock, only 1 left!

0

503212810

Husqvarna 503212810

Screw

$3.99

$

In Stock, Qty 11

0

720123300

Husqvarna 720123300

Pin 3x10

$3.49

$

In Stock, only 4 left!

0
