335 RX - Husqvarna String Trimmer (SN: 20080100001 - 20105299999) SHAFT & SUSPENSION Parts Diagram

String Trimmer

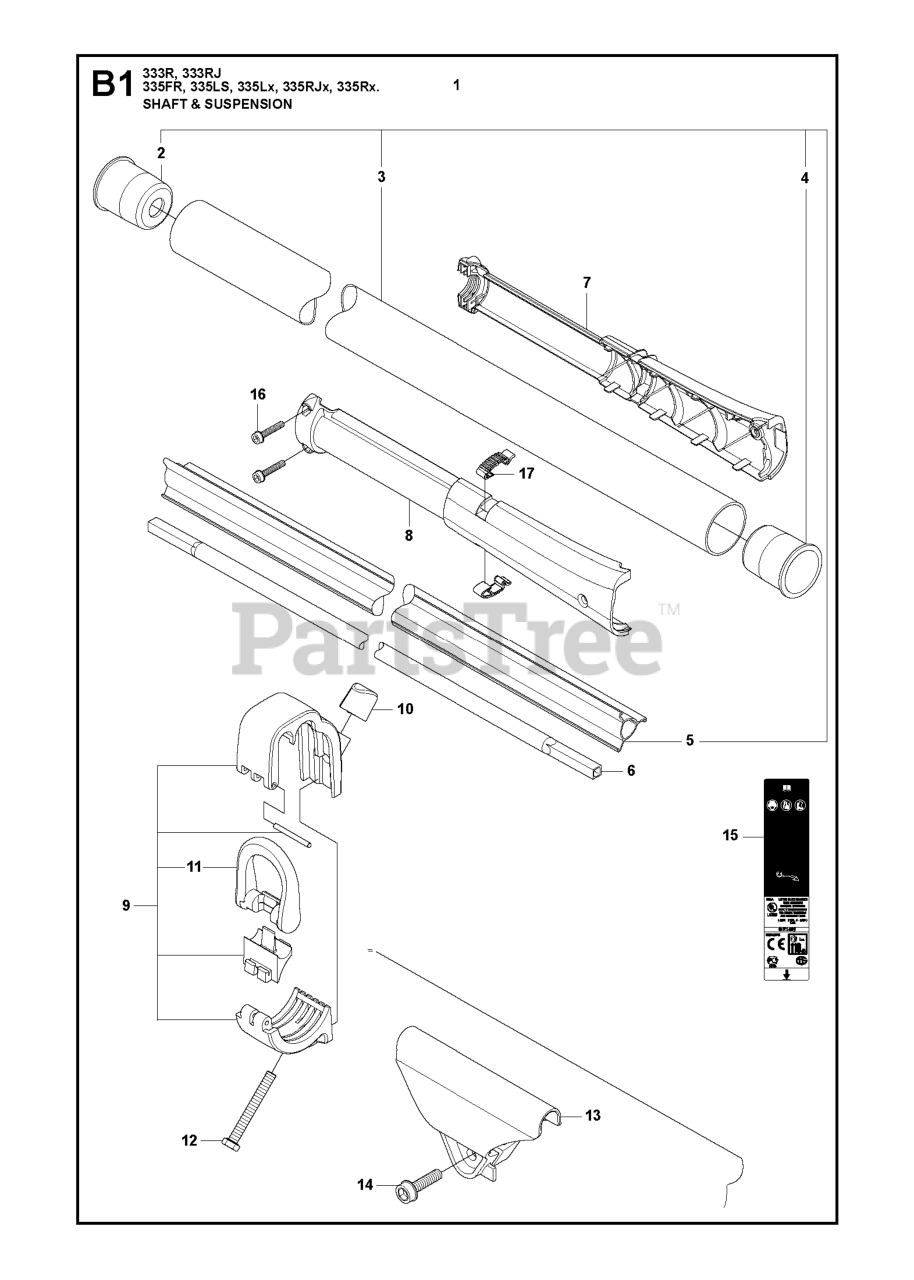

SHAFT & SUSPENSION Parts Diagram

  • Title

3

Husqvarna 537214101

TUBE
(Superseded to 537214201)

Note: Ø = 28mm, L = 1483mm

$145.99

$

Usually ships in 3-10 days

0

12

Husqvarna 725233951

SCREW M6S 5X40

$

$

Not available

16

Husqvarna 503200778

SCREW

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 505137201

WEAR PROTECTION LEFT CPL

$

$

Not available

13

Husqvarna 537376101

CABLE HOLDER

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 537360201

PLUG

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 537294801

RP WARNING DECAL
(Superseded to 589295101)

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 537355201

SHAFT

Note: Ø = 8mm, L = 1527mm

$74.99

$

In Stock, only 1 left!

0

7

Husqvarna 505137101

WEAR PROTECTION RIGHT

$

$

Not available

1

Husqvarna 537214201

TUBE
(Superseded to 501919701)

Note: 333R, 335Rx, 335FR

$145.99

$

Usually ships in 3-10 days

0

5

Husqvarna 537313901

GUIDE

Note: Ø = 9mm, L = 1400mm

$28.99

$

Usually ships in 3-10 days

0

17

Husqvarna 537387201

BUCKLE

$

$

Not available

10

Husqvarna 537130402

KNOB

$5.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505160901

LOOP ASSY

$21.99

$

Usually ships in 3-10 days

0

2

Husqvarna 537360202

PLUG
(Superseded to 537360201)

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537350101

HOOK

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503217516

SCREW

$4.99

$

In Stock, only 4 left!

0
